Honda NU50 - Clutch;Driven Face Inspection

DRIVE PULLEY/KICK STARTER/CLUTCH/DRIVEN PULLEY
~HONDA
~NU50.NU50M

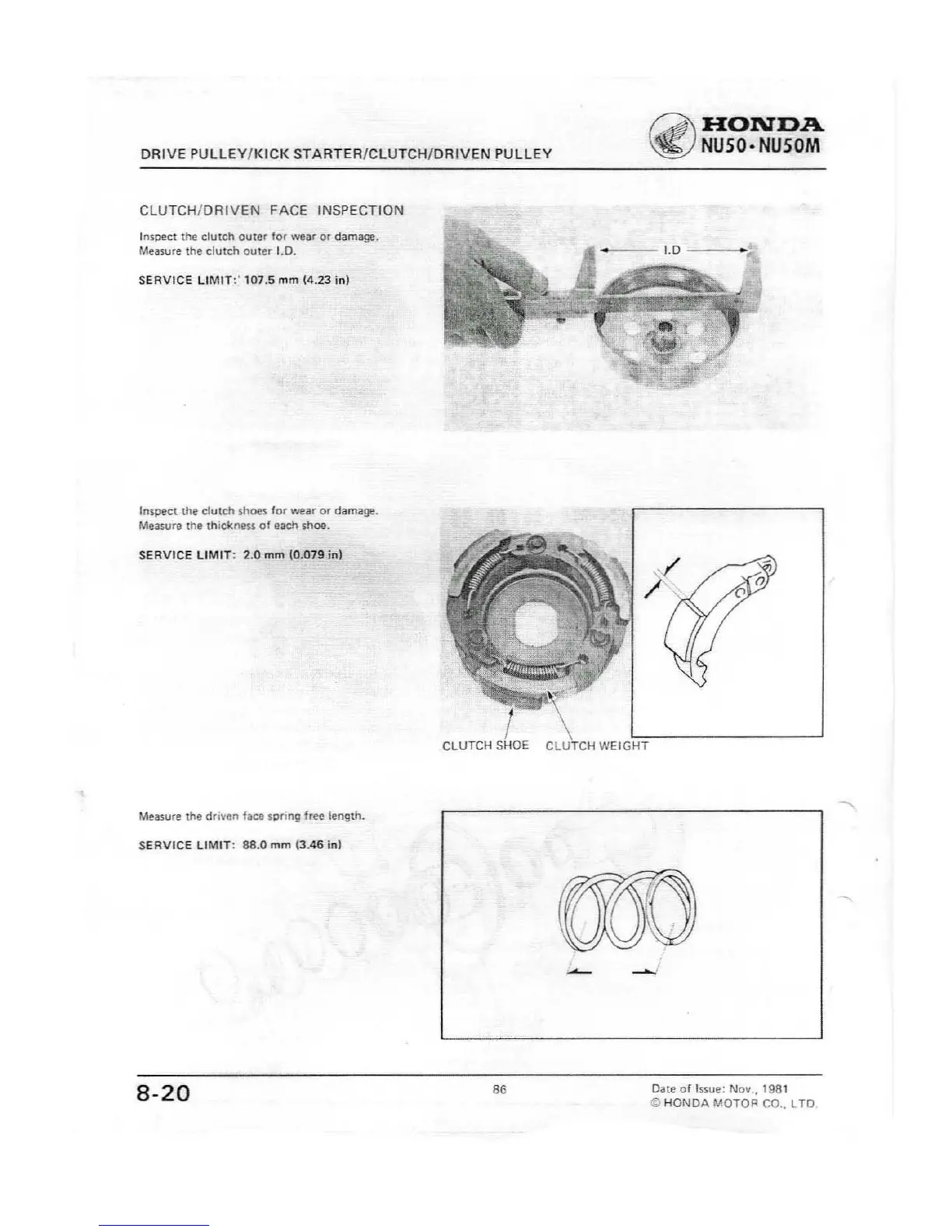

CLUTCH/DRIVEN FACE INSPECTION
Inspect the clutch outer lor wear or damage.
Measure lhe clutch outer 1.0.
SERVICE LlMIT:'107.5 mm (4.23 in)
Inspect the clutch shoes for wear or damage.
Measure the thickness of each shoe.
SERVICE LIMIT; 2.0 mm (0.079 in)
Measure the dri\·en face spnng free length.
SERVICE LIMIT: 88.0 mm (3.46 inl
