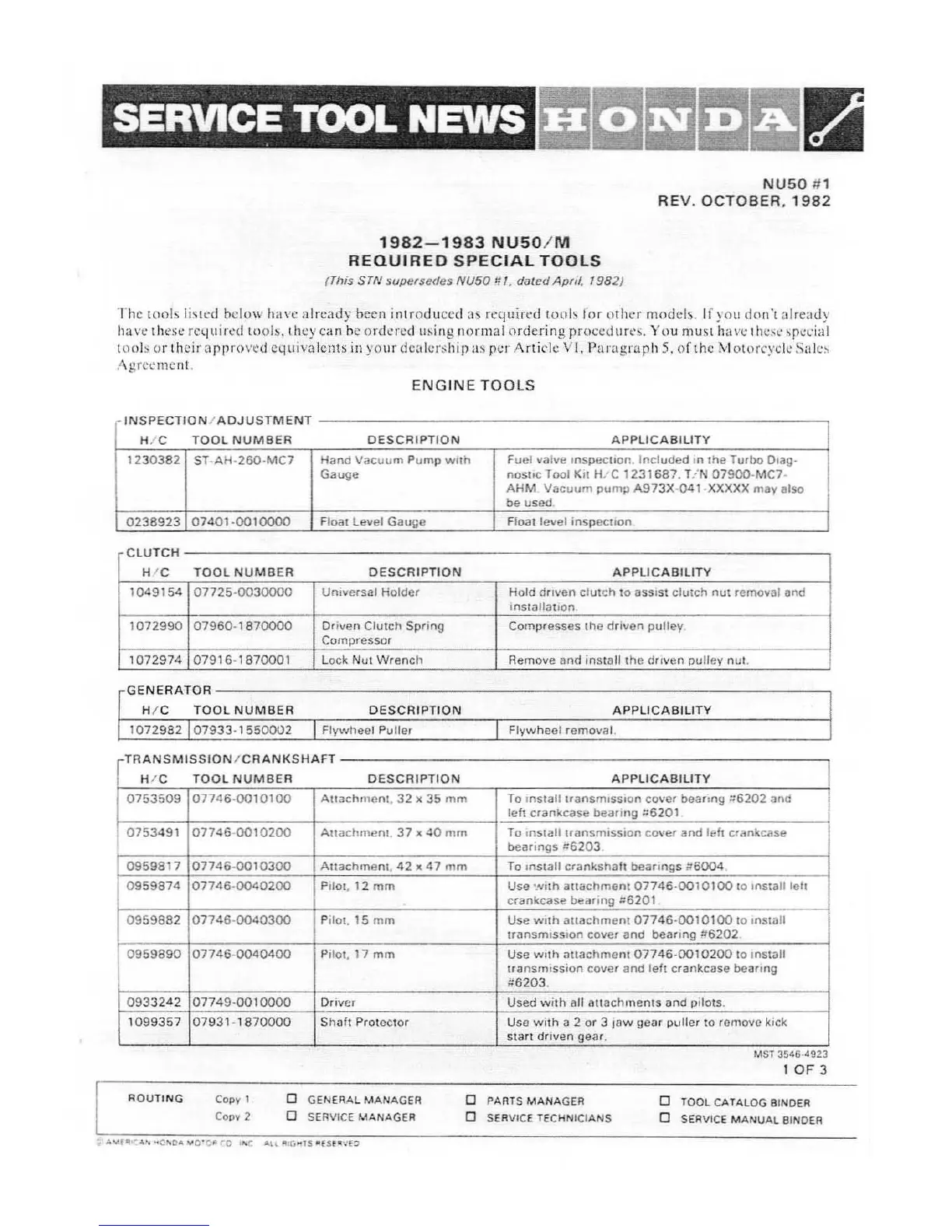

Honda NU50 - Required Special Tools; Engine Tools

NU50111
REV. OCTOBER. 19B2
1982-1983 NU50/M
REQUIRED SPECIAL TOOLS
(This STN superstJeles NU50 r; " dalcd April. 1982)
The lOol:. li~(l'd below h:I\'C alrc:ldy been introdllced as requin.·d lOoh lor otl1\'r model!). IfYOlI don'[ olre:tdy
ha ve IIH.'sC rcq ui fl'd tool:,. lhcy ca n be orch; red ll.'\i ng n orilla I orderi ng proccd II (l'S. You mus l ha vc 1 hC~l' ~ pel'iaI
10 ol:i or I!leir "p IHO Vt'(j cq II iva tents ill you r dc:llcrsh ip as per Artie Ie Vl. Pa ragraph 5. of the !vi otor"p: Ie Sa Ic~
AgrC\'IlH:nl.
ENGINE TOOLS
INSPECTION/ ADJUSTMENT
HfC TOOL NUMBER
DESCRIPTION APPLICABILITY
1230382
ST -AH-260·MC7
Hand Vacuum Pump wllh Fuel valve inspection. Included In the Turbo Dlag-
Gauge nosuclool Ku H.'C 1231687. T:'N 07900-MC7·
AHM Vacuum pump A973X-041-XXXXX may 8lso
be used
0238923 07401·0010000
Float level Gauge Float level inspecTion
CLUTCH
H'C
TOOL NUMBER DESCRIPTION APPLICABILITY
1049154
07725-0030000
Universal Holder Hold driven clutch to aSSIst clutch nut removal and
installation
1072990 07960-1870000 Driven Clutch Spring ComWesses the driven pulley.
Compressor
1072974 07916·1870001 lock Nut Wrench Remove and install the dnven pulley nul.
APPLICABILITY DESCRIPTION
GENERATOR --------------------------------...,
HIC TOOL NUMBER
1072982 107933·1550002 I Flywl1eel Pulfer I Flywheel removal
TRANSMISSION /CRANKSHAFT
HfC TOOL NUMBER DESCRIPTION APPLICABILITY
0753509 07746·0010100 AtTachment. 32 x 35 mm To Install transmISSIOn cover beanng ;:6202 anc
I
left crankcase bearmg ::6201 ,
0753491 07746·0010200 Anachment. 37 iIt 40 mm To ,nstalitransmlSSlon cover and left crankcase
beanngs 1:6203
0959817 07746·0010300 Atlachment. 42 1II 47 mm To Install crankshah bearings ;,6004
0959874 07746·0040200 Pilot. 12 mm Use '.'\11th attachment 07746·0010100 to Install lell
crankcase beanng ::6201
0959882
07746-0040300 Pilot. 15 mm Use with aU3chment 07746·0010100 10 Install
transmISSion cover and bearing .!i6202
0959890 07746·0040400 Pilot. 17 mm Use Wllh attachment 07746·001 0200 to Install
transmission cover and left crankcase bearing
#6203.
0933242 07749·0010000 Driver Used with all attachments and pilols.
1099357 07931·1870000 Shalt Protector Use With a 2 or 3 jaw gear puller to remove kick
start driven gear.
MST JS46 4923
1 OF 3
ROUTING COpy 1
COpy 2
o GENERAL MANAGER
o SERVICE M4NAGER
o PARTS MANAGER
o SERVICE TECHNtCIANS
o TOOL CATALOG BINDER
o SERVICE MANUAl81NDER
