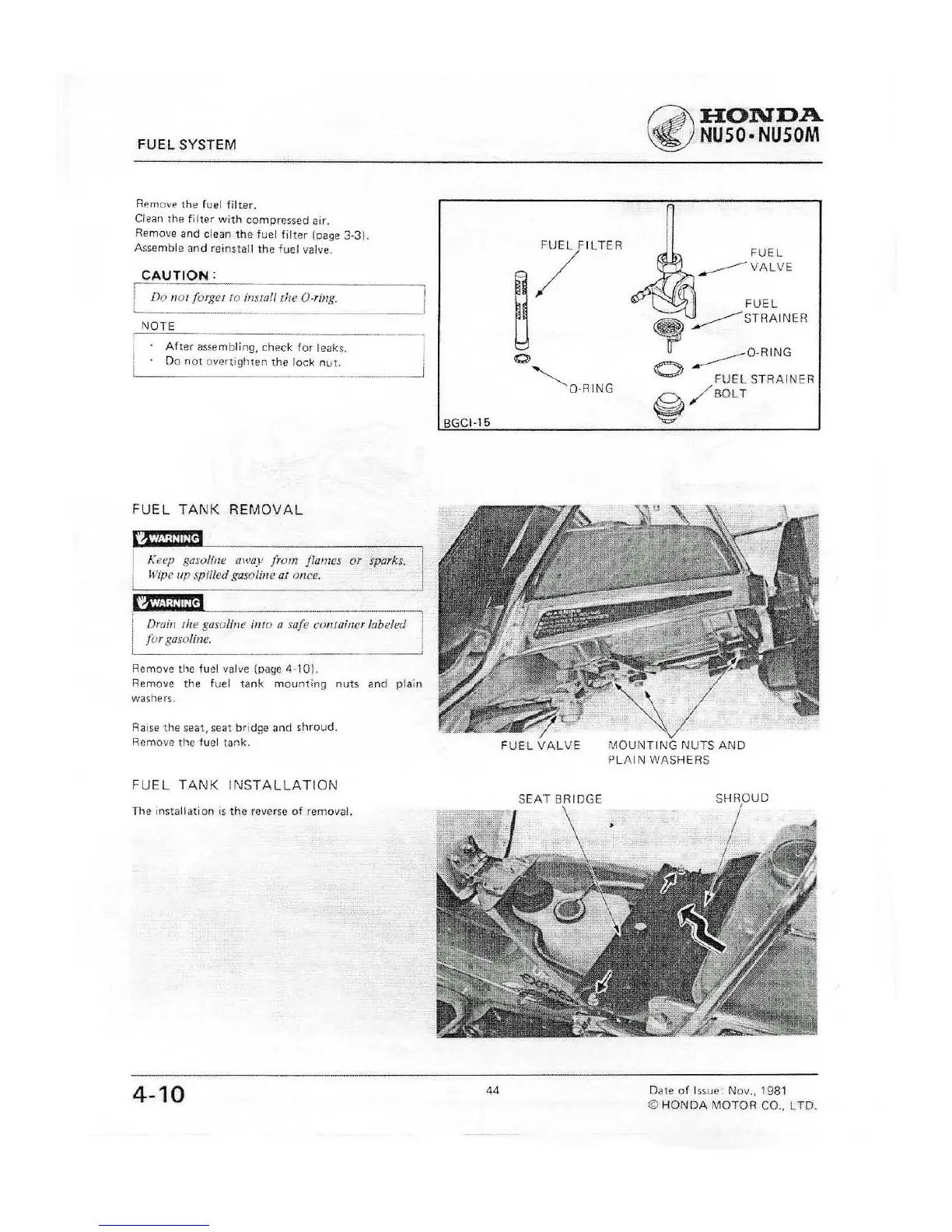

FUEL SYSTEM
Remove the fuel filter.
Clean the filter with compressed air.
Remove and clean
the fuel filter fpage 3·31.
Assemble and reinstall the fuel valve.
CAUTION'
I Do /Jot forget 10 il/sIIlll tfu: O-ril/g.
___ -.1
NOTE
After assernbling, check for ICilks.
. 00 not overtighten the lock nul.
FUEL TANK REMOVAL
S'1"I.l-lIII
i
lfj
};"ep gasoline away from flames or sparks.
llIipc Ufl spilled gasolint' at O/lce.
r f)raill lhe gUSolilH'-;nlO a mie coma;lIef J(/befe~'-l
[ for Sliw/inc.
, ,
Remove the fuel valve {page d-lOL
Remove the fuel tank mounting nuts and plain
washers.
Raise
the seat, seat bridge and shroud.
Remove the fuel lank.
FUEL TANK INSTALLATION
The installation is the reverse of lemQlfa!.
4-10
BGCI-15
4-1
~HONDA
~ NU50· NU50M
-0
~ORING
MOUNTING NUTS AND
PLAIN WASHERS
SEAT
BRIDGE
