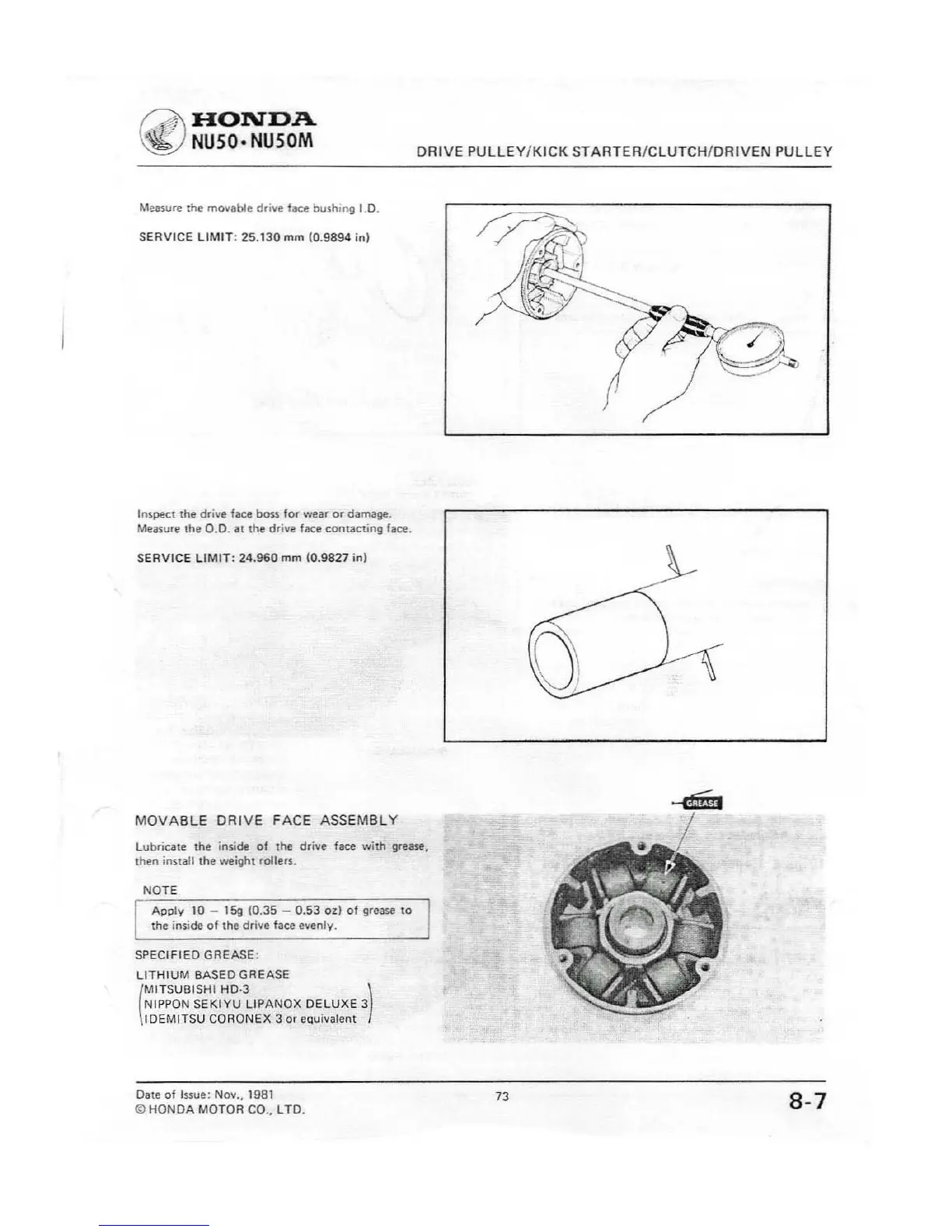

Me .... ure the mOl/able drive face bust'lIO!lI.D.
SERVICE LIMIT: 25.130 mm 10.9894 in)
Inspect the drive face boss for wear or damage.
Measure the 0.0. al the drive face contacting lace.
SERVICE LIMIT: 24.960 mm 10.9827 in)
DRIVE PULLEY/KICK STARTER/CLUTCH/DRIVEN PULLEY
MOVABLE DRIVE FACE ASSEMBLY
lubricate the inside of the drive face with grease.
then install the weight rollers.
NOTE
ApplV 10 -
15g (0.35 - 0.53 oz) of grease 10
the inside of the drive face evenly.
SPECIFIED GREASE:
LITHIUM BASED GREASE
(
MITSUBISHI
HD·3 )
NIPPON
SEKIYU UPANQX DELUXE 3
IDEMITSU CQRONEX 3 or equivalent
