Honda NU50 - Cylinder and Piston Procedures

~HONDA
~ NU50· NU50M

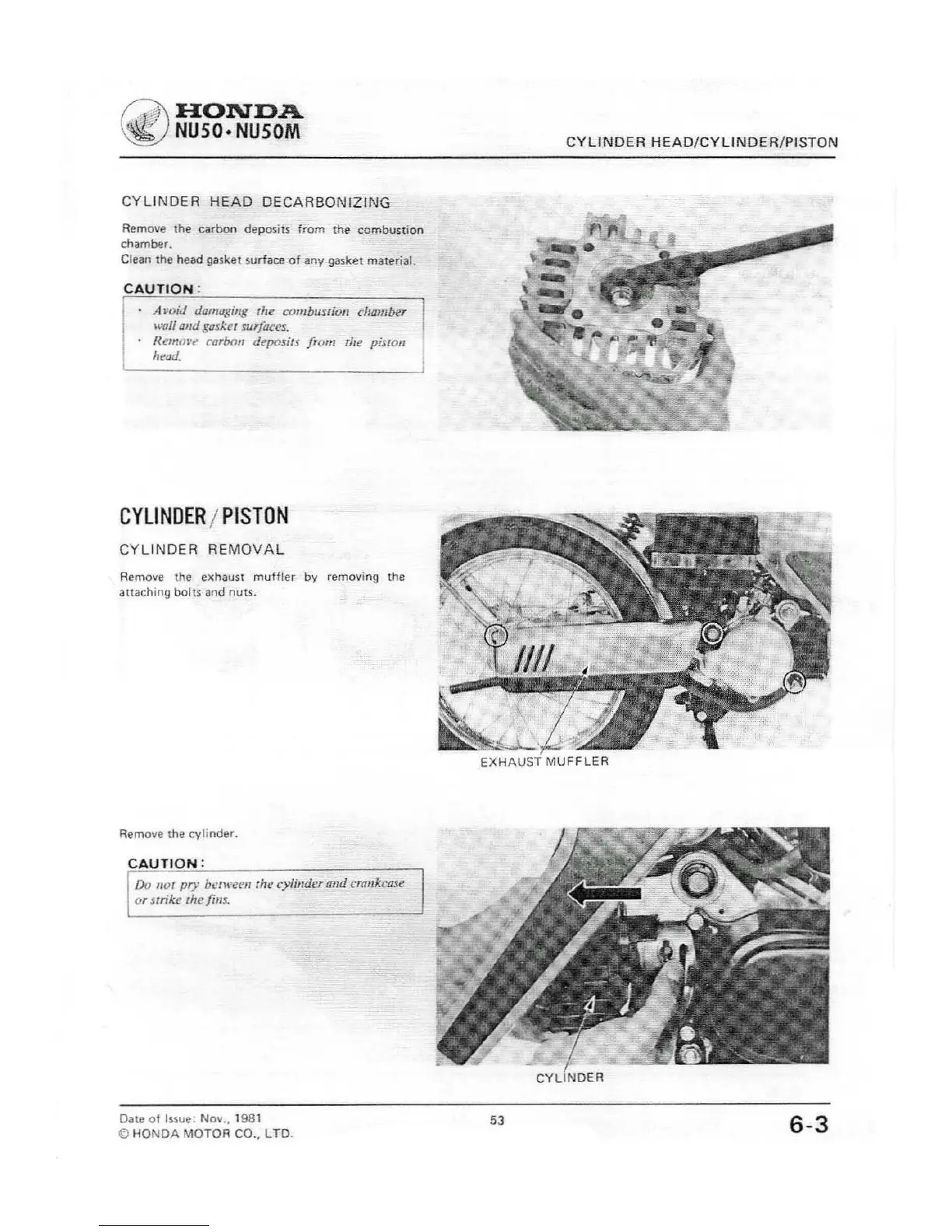

CYLINDER HEAD DECARBONIZING
Remove the carbon deposits from the combustion
chamber.
Clean the head gasket surface of any gasket material.
CAUTION:
AmjJ daJnugillg the combustion chambf!T
"'Oil
alld guskn surfaces.
Remon' corbo" deposits from tile piSlOIi
head.
CYLINDERj PISTON
CYLINDER REMOVAL
Remove the exhaust muffler by removing the
attaching bolts and nuts.
Remove the cylinder.
CAUTION:
Do 1I0f pry bt:II\'C('11 {hI! cylinder olld crallkcase
or strike fhe /illS.
CYLINDER HEAD/CYLINDER/PISTDN
CYLINDER
Date 01 Issue: Nov., 1981
V HONDA MOTOR CO., l TO_
53
6-3
