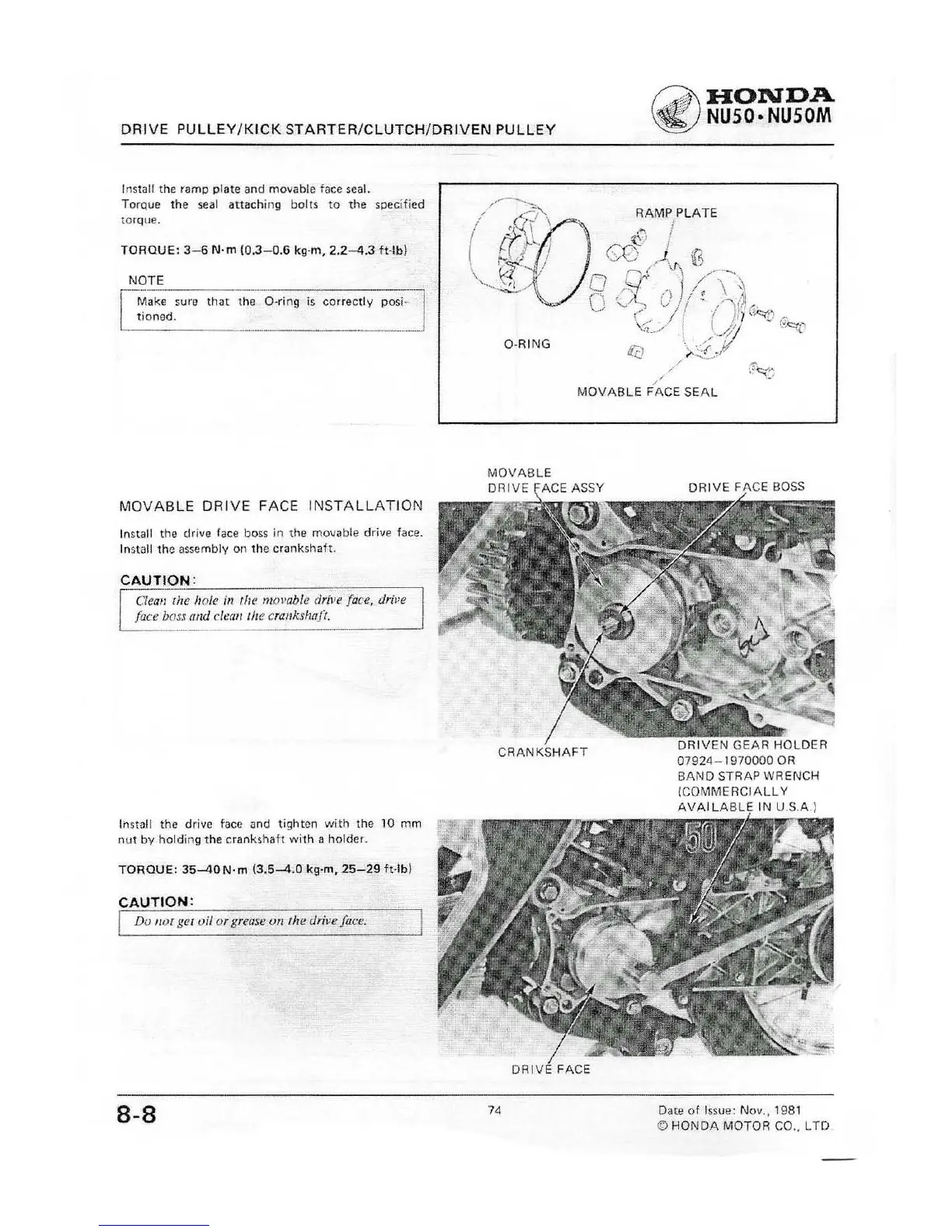

DRIVE PULLEY/KICK STARTER/CLUTCH/DRIVEN PULLEY
~HONDA
~ NU50·NU50M
TORQUE: 3-6 N·m 10.3-0.6 kg-m, 2.2-4.3 ft·lb)
Instal! the (amp plate and movable face seal.
Torque
the seal attaching bolts to the specified
torque.
NOTE
Make sure
tioned.
that the a·ring is correctly POS~
D-RING
/
MOVABLE FACE SEAL
MOVABLE DRIVE FACE INSTALLATION
Install the drive lace boss in the movable drive face.
Install
the assembly on the crankshaft.
CAUTION:
Clean the hole in /11" mOllable drh'e face. dril'e
{aCt! boss Urld clean tire crallks/lllff.
CRANKSHAFT
DRIVEN GEAR HOLDER
07924-1970000 OR
BAND STRAP WRENCH
(COM ME RCIALLY
AVAILABLE IN U.SA)
Install the drive face and tighten with the 10 mm
nut by holding the crankshall with a holder.
TORGUE: 35-40N'm (3.5-4.0 kg·m, 25-29 ft·lbl
CAUTION:
Do I/O! gf?( oil or grease 01/ Ihe drive jace.
8-8
74 Date of Issue: NOli., 1981
© HONDA MOTOR CO .. LTD

Honda NU50 Specifications

General

Model	NU50
Category	Scooter
Ignition	CDI
Transmission	Automatic
Final Drive	Belt
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Starting System	Kick start
Rear Suspension	Unit swing
Fuel Capacity	4.5 L
