Honeywell | 16
4 Mechanical Assembly

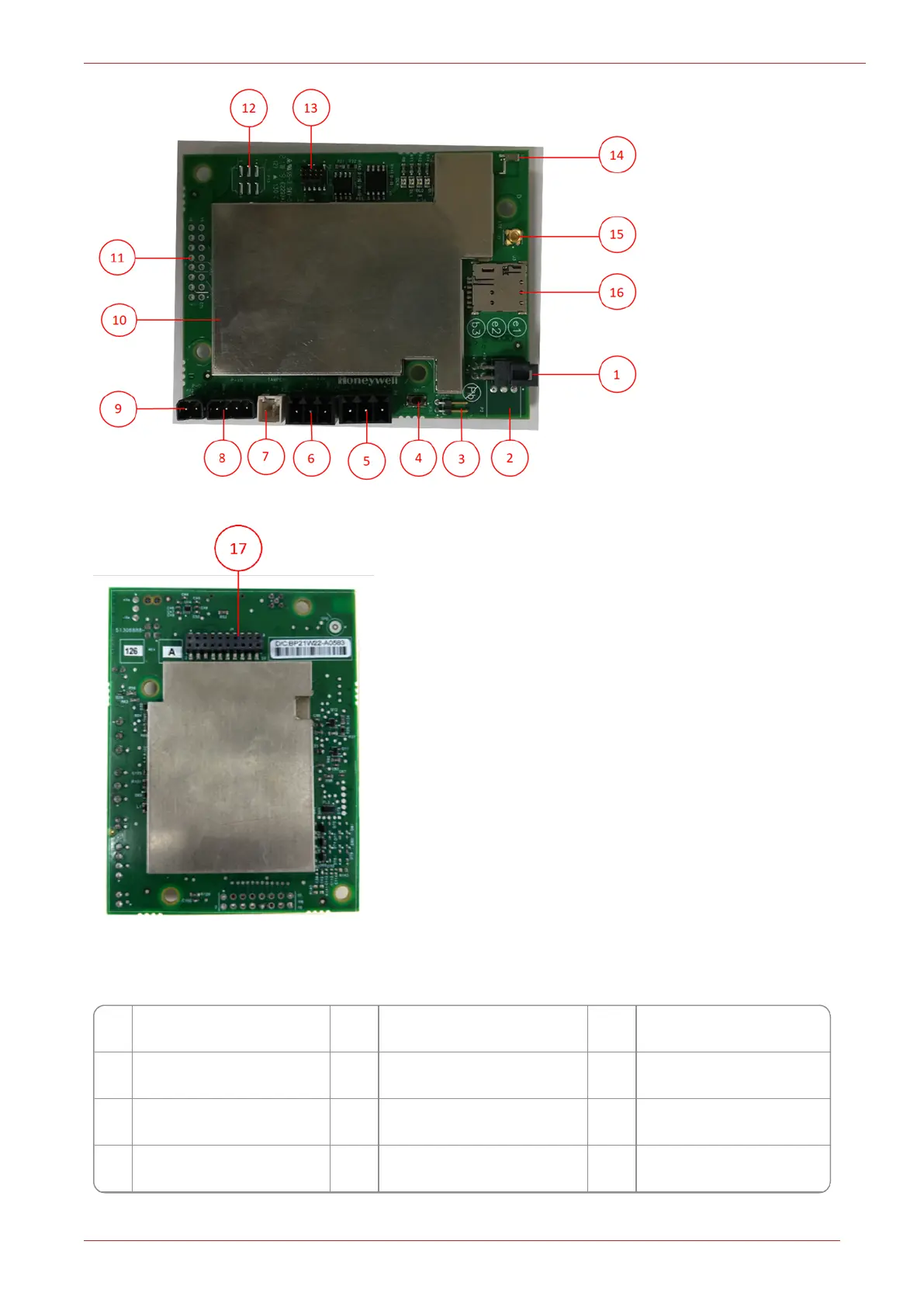

Figure 4.2 - CloudLink 5G Board - Top View
Figure 4.3 - CloudLink 5G Board - Bottom View
1
Mercury Power
Connection (P1)
7 Tamper Connection (P9) 13 JTAG Connection (P5)
2
Elster Power Connection
(P2)
8
Pulse Input Connection
(P11)
14 GPS Antenna
3 Force Call (P3) 9
Pulse Output Connection
(P12)
15
LTE Antenna Con-
nection (J2)
4
Factory Restore Switch
(S1)
10 Top Shield 16 SIM Holder (J3)
