4 Mechanical Assembly
4 Mechanical Assembly
This chapter describes the mechanical assembly of the different components of a CloudLink 5G
Modem.
4.1 Device Dimensions
The figure below illustrates the dimensions of a CloudLink 5G Modem device.

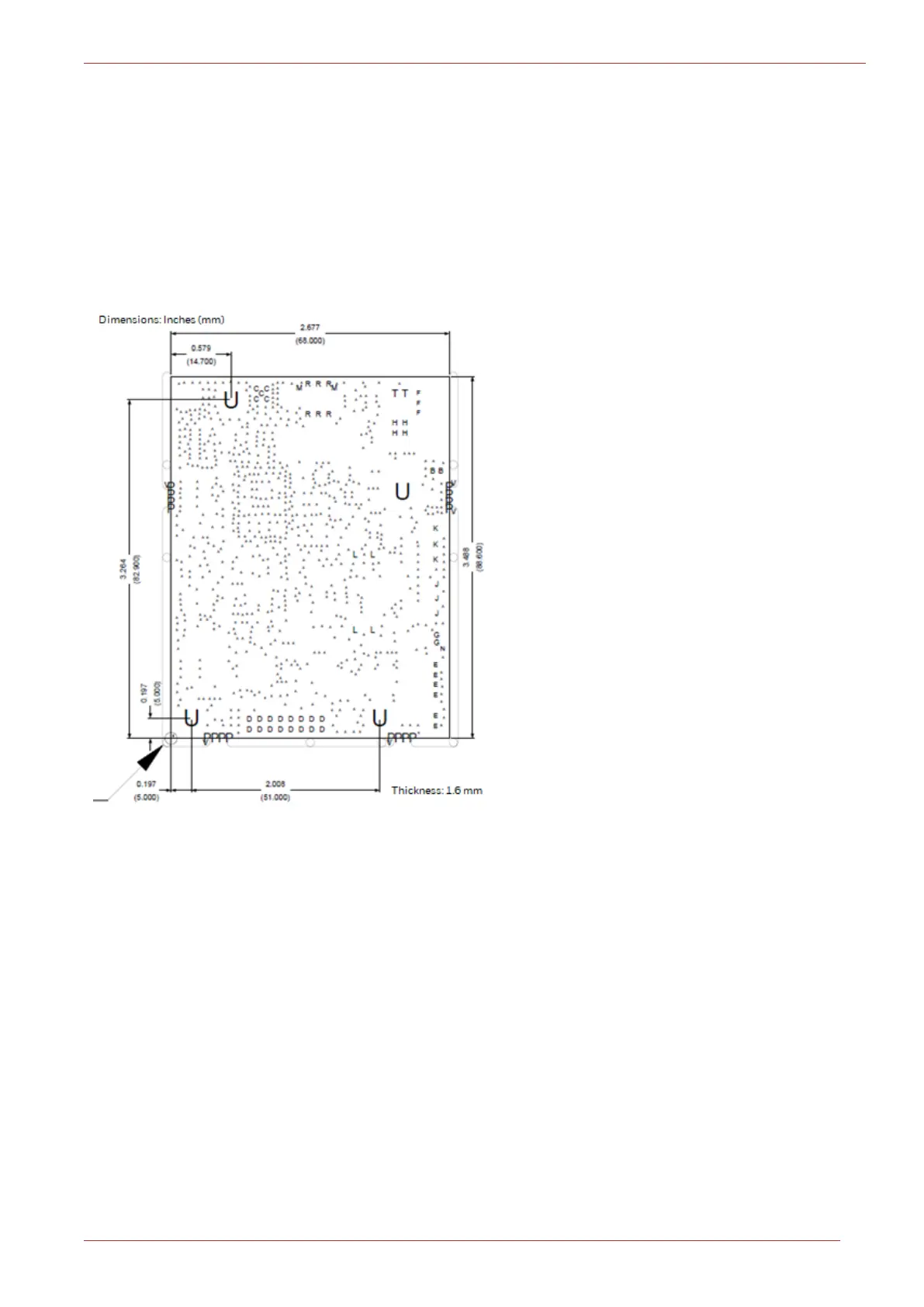

Figure 4.1 - Device Dimensions - Top View
The figures below illustrate the placement of different interfaces available in a CloudLink 5G
Modem.
