Honeywell | 17
4 Mechanical Assembly
5 Midnight Reset (P4) 11
Elster EVC Connection
(P8)
17
Mercury EVC
Connection (J4)
6 Configuration Port (P6) 12
Elster Parameterization
Connection (P13)
4.2 Power options
CloudLink 5G supports the following power supply options.
For Zone 0 / DIV 1 use:
1. Lithium Battery Pack (Honeywell Part Number: 40-6197).
For DIV 2 use:
1. Lithium Battery Pack (Honeywell Part Number: 40-6154).
2. For remote power installations connect 5-15V DC to the CloudLink 5G at Power Connector
(P1).
Note:
1. Either a battery pack or external power supply can be connected to the CloudLink 5G
Modem at a time.
2. Refer to installation drawings for more detailed power options.
4.3 Antenna Options
The Y4HON00A1AA_ANT_X2 flexible ultra wideband antenna is designed to cover all working fre-
quencies in the 698-3000 MHz spectrum. The antenna has a flexible body with excellent effi-
ciencies on all bands, ground independent, with cable and connector for easy installation. Antenna
transmits and receives data and can be placed inside EVC enclosure or similar enclosures.

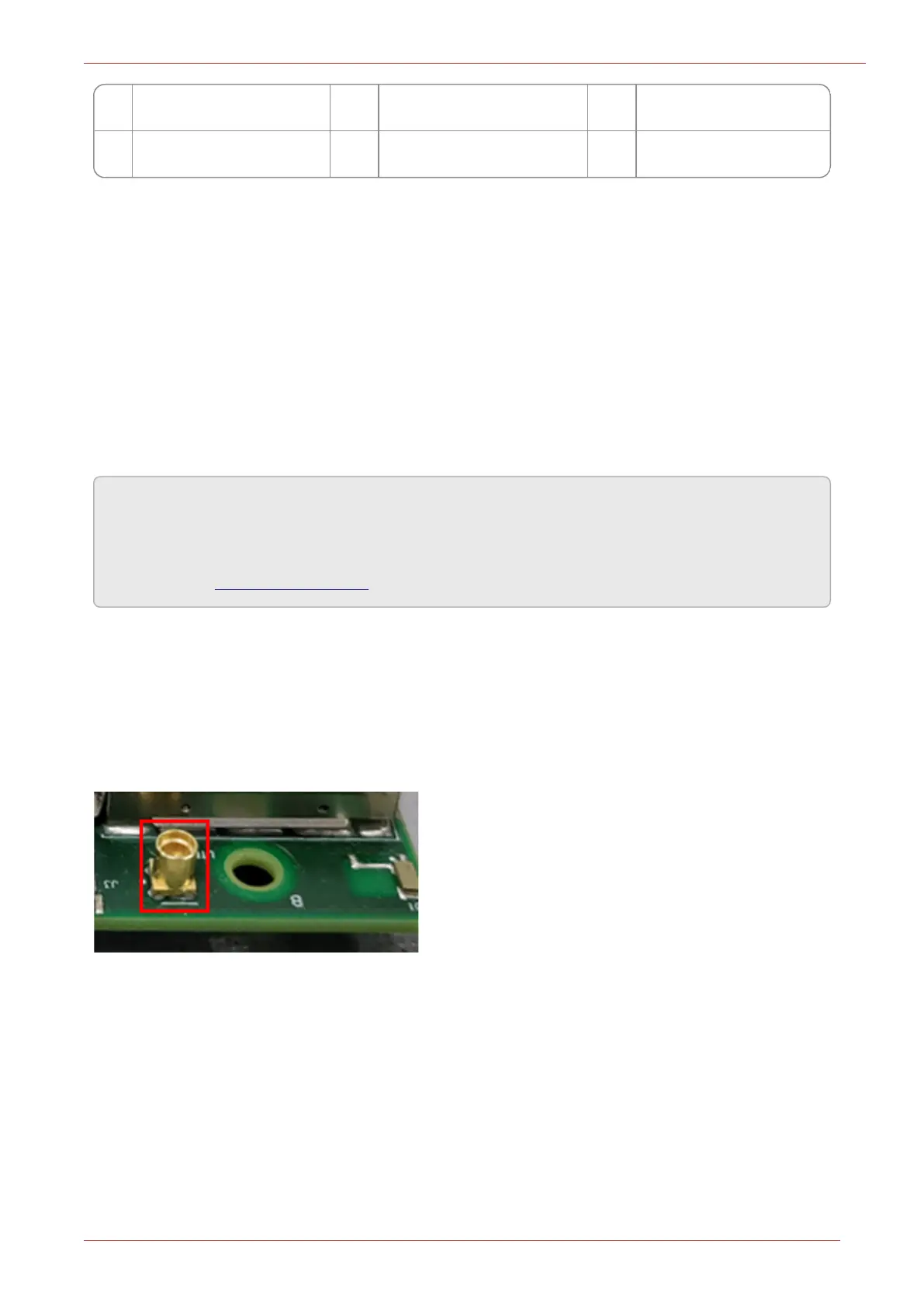

Figure 4.1 - Antenna Location
