4 Mechanical Assembly
4.5 Field Installation
4.5.1 Retrofit details
The CloudLink 5G Modem can be retrofitted easily by following the below steps:
STEPS:
a. Unscrew the CloudLink 4G M1 Modem.
b. Slide the CloudLink 5G Modem into the same slot.
c. Position the mounting tabs properly and torque the screw.
d. Connect the cables (Refer 22-3012 and 22-3013 for Meter and Remote Mounts respectively).

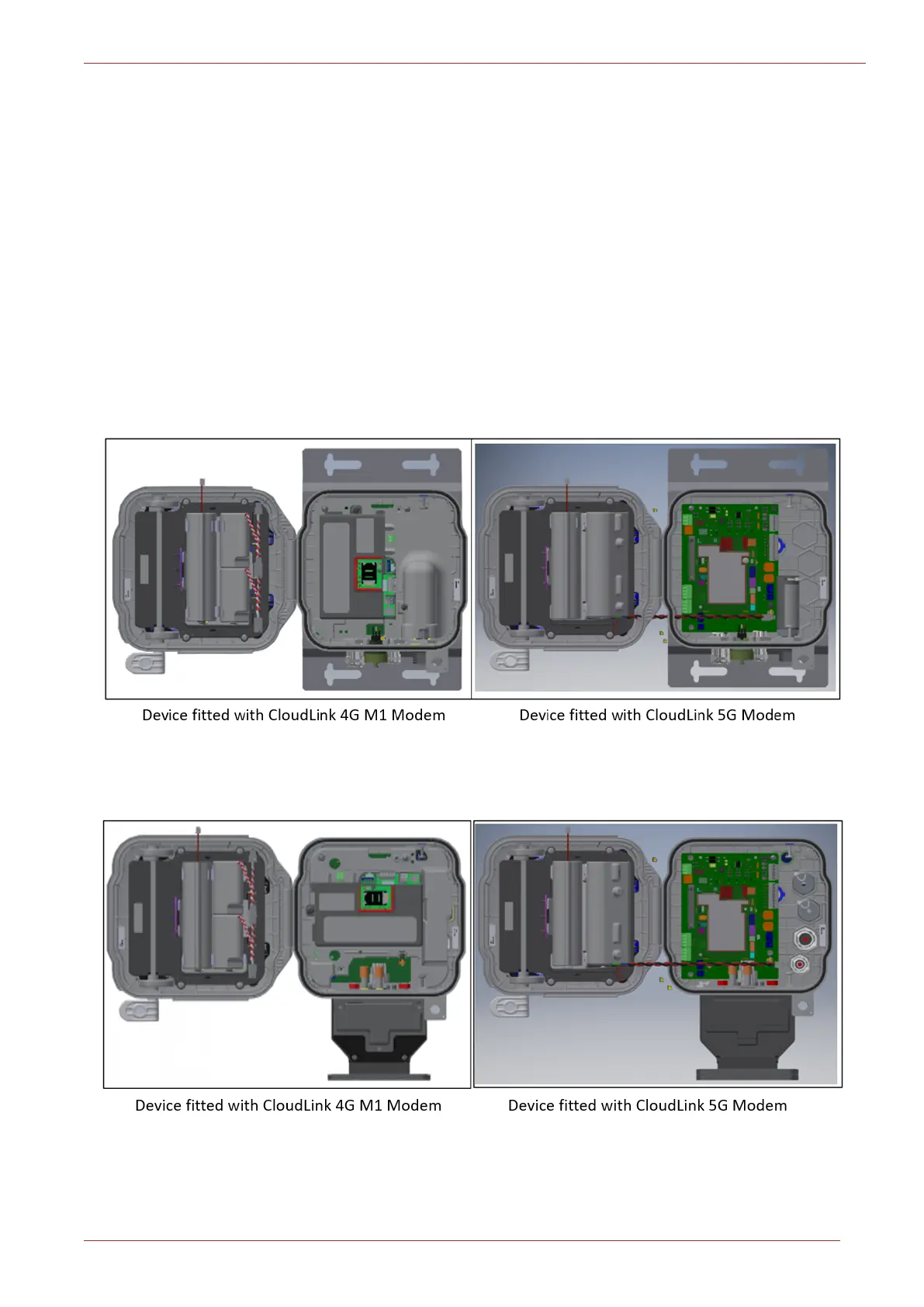

Figure 4.1 - CloudLink Retrofit with EC350 (Remote Mount)
Figure 4.2 - CloudLink Retrofit with EC350 (Meter Mount)
