Honeywell E-Mon Class 3200 - High Voltage Wiring and Conversion Process

E-MON CLASS 3200 METER
43 62-0397—02
Fig. 28. High Voltage CTs.

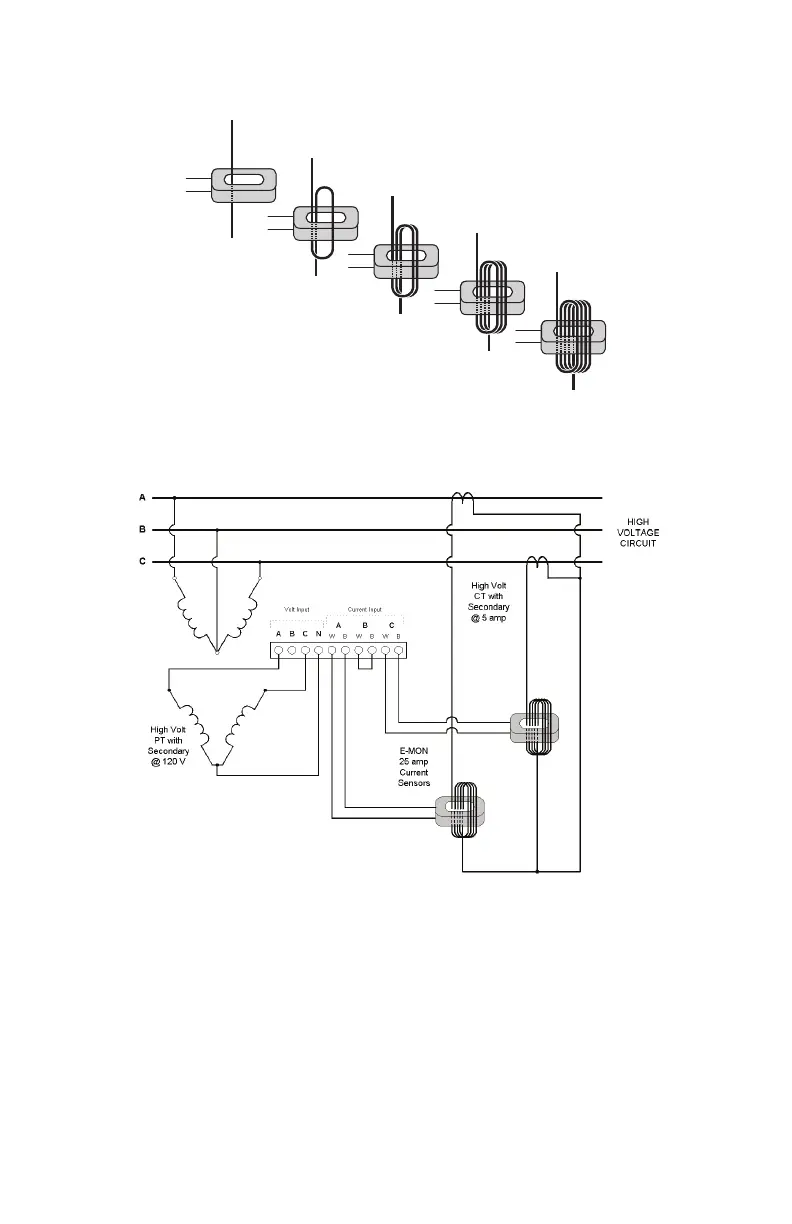

Fig. 29. Wiring Diagram For 3-wire High Voltage Circuits.
M34227
PASS # 2
PASS # 3
PASS # 4
PASS # 5
PASS # 1
M34228
