107026-11-EN FR26 ROW 302 Printed in France 7

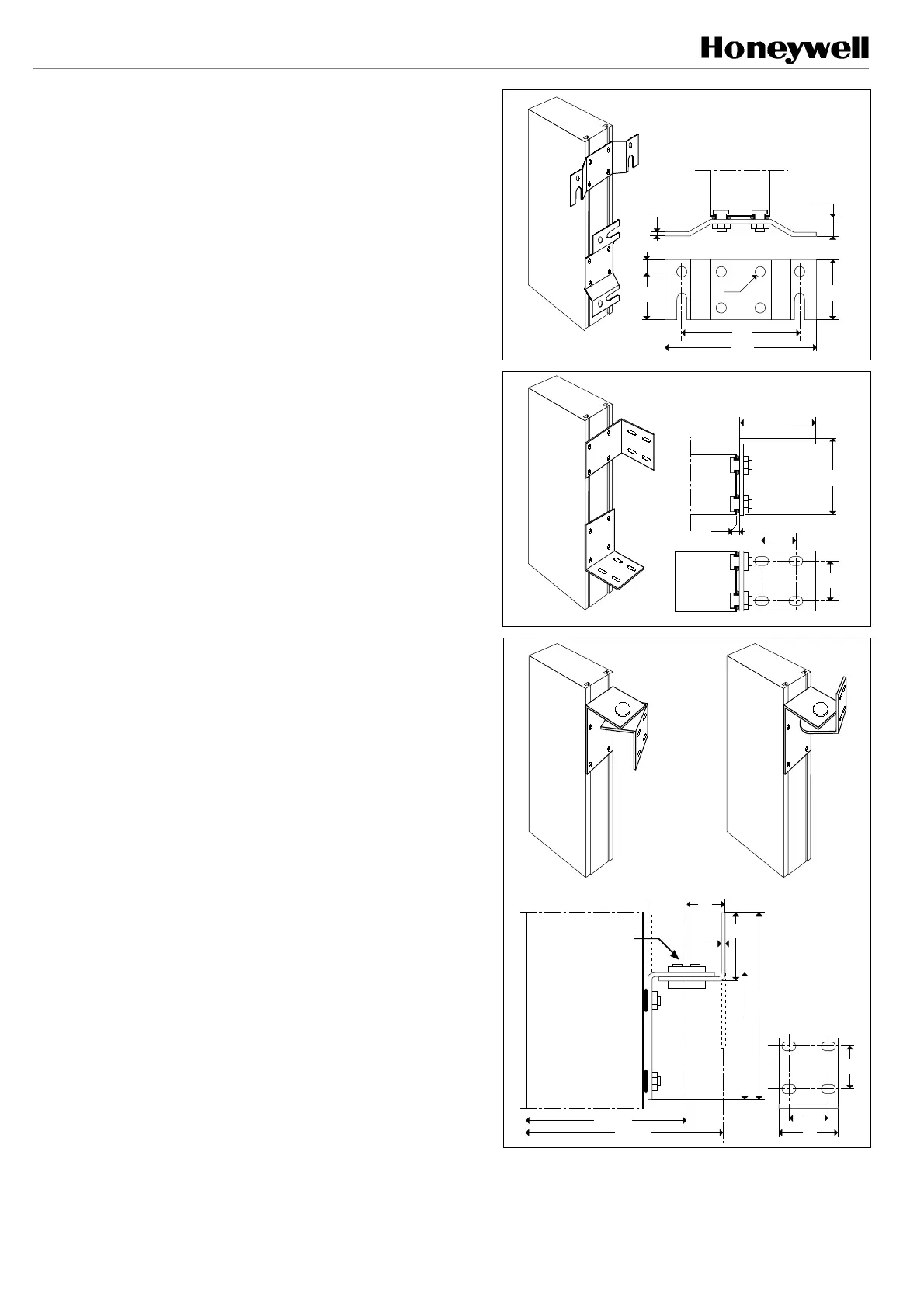

A separate mounting kit for emitter and receiver
must be ordered.
• FF-SBZ5000
Kit of 2 “Omega“ supports with antivibration inserts.
The “Omega“ can be assembled transversally or
longitudinally (4 possible positions).
Application: recommended for vertical or horizontal
mountings.
• FF-SBZS6000
Kit of 2 fixed brackets with anti-vibration inserts. The
corner late can be fitted in 4 different positions at 90°
to each other.
Application: recommended for vertical or horizontal
mountings.
• FF-SBZS7000
Kit of 2 rotatable brackets with anti-vibration inserts.
The bracket may be reversed.
These brackets are strongly recommended for precise
optical alignment at maximum range.
Application: recommended for vertical mountings
only.
• FF-SBZS8000
Kit of accessories for direct mounting.
Note: all installation must use this kit (8 bolts, 8 nuts,
16 washers, 8 antivibration dampers, 8 metal hubs -
see page 8).
Ø8
4
26.6
110
140
62
48
14
70
33
4 holes
7 x 12
4.6
70
33
4 holes
7 x 12
38
56
square
View A
158.6
193.6
65
35
4
123
180
pivoting axis
clamping by
2 screws
front
38
FF-SBZS5000
FF-SBZS6000
FF-SBZS7000
