Galaxy 3 Series Installation Manual
3-5
RF RIO – C076
The Galaxy Radio Frequency (RF) RIO module is an optional add-on to the existing Galaxy product range.
The module acts as an RF receiver for the Ademco 868MHz transmitter range.
Features
The RF RIO contains the following features:
• Support for up to 32 RF zones (dependent upon panel type)
• Support for up to 30 RF keyfobs
• 4 transistorised outputs

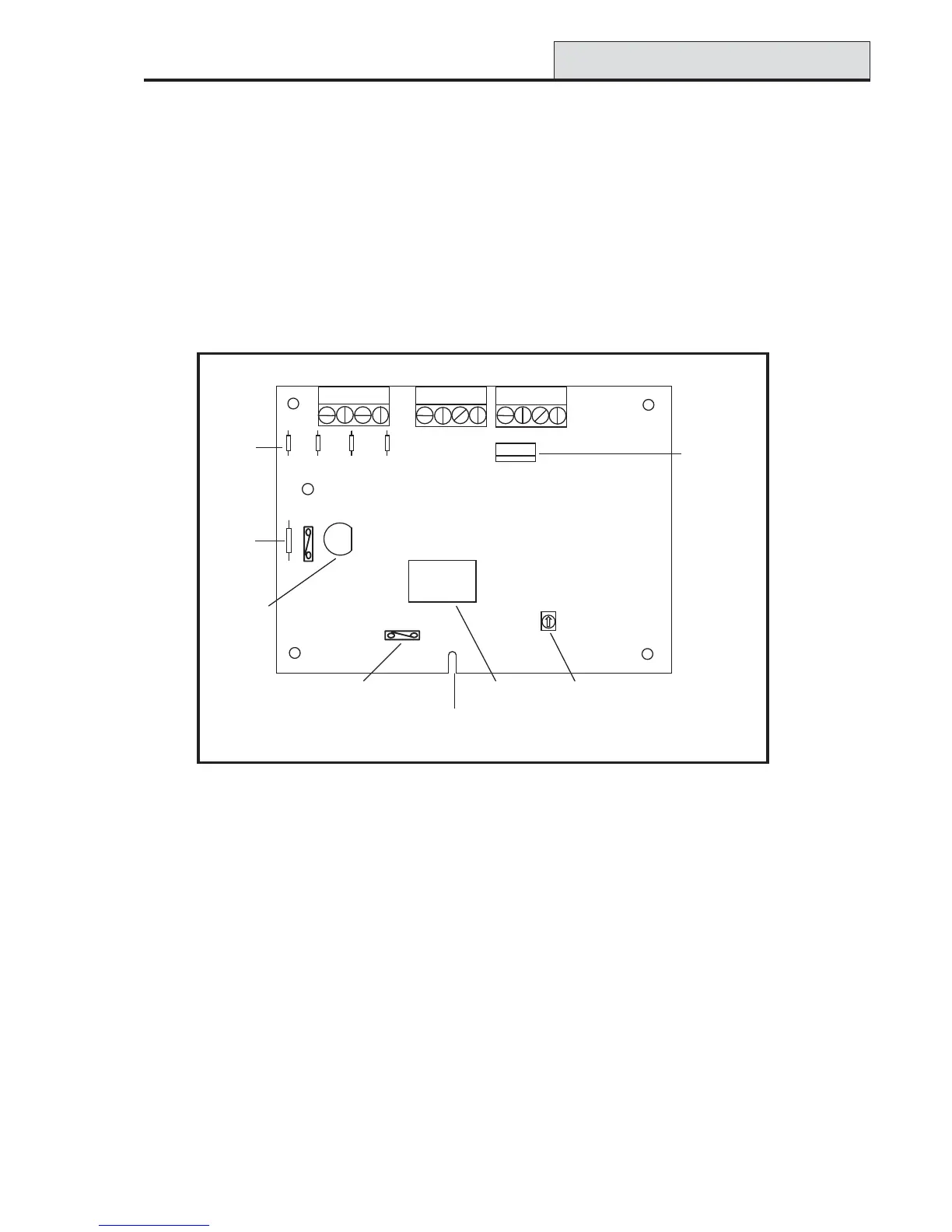

Figure 3-2. RF RIO PCB Layout
Compatibility
The RF RIO is compatible with Galaxy Control Panels 3-144 and 3-520.
Connecting the RF RIO
The RS 485 (AB) line of the RF RIO must be wired in parallel (daisy chain configuration) with the RS 485
(AB) line of the keypad connected to it. The RF RIO requires 12 V d.c. (range 10.5 to 16.0 V) and 55 mA.
This can be supplied from the control panel power supply or from a remote power supply if the distance
causes a large voltage drop on the cable.
RF RIO
1
2
3
4
Outputs
Panel Keypad
BA -
+
BA - +
1
2
3
4
Outputs
Panel Keypad
BA -
+
BA - +
1
2
3
4
Outputs
Panel Keypad
BA - + BA - +
Tamper
link
Programming
Switch
Processor
Programming
Keypad
Socket
Rotary
Address
Switch
SW1
SW2
Tamper
Switch
LED1
Retaining Slot
LK1
R7 R5 R3 R1
SW6
Pull-up
Resistors
SW3
Rev 1.0
