Output Module
Output Module – C078
Galaxy Output Modules can be added to the Galaxy 3 Series control panels. Each additional Output Module
expands the system up to 16 outputs by simulating the outputs of four RIO’s
The following figure shows the main components of the Output Module.
Addressing
The Galaxy Output Module must be given a unique address before it is connected to a power supply. This
base address is selected using the Rotary Address Switch. Valid addresses are shown in the following table.
NOTE: The zones represented by the Output Module addresses can be viewed on the panel, however they
are not used.

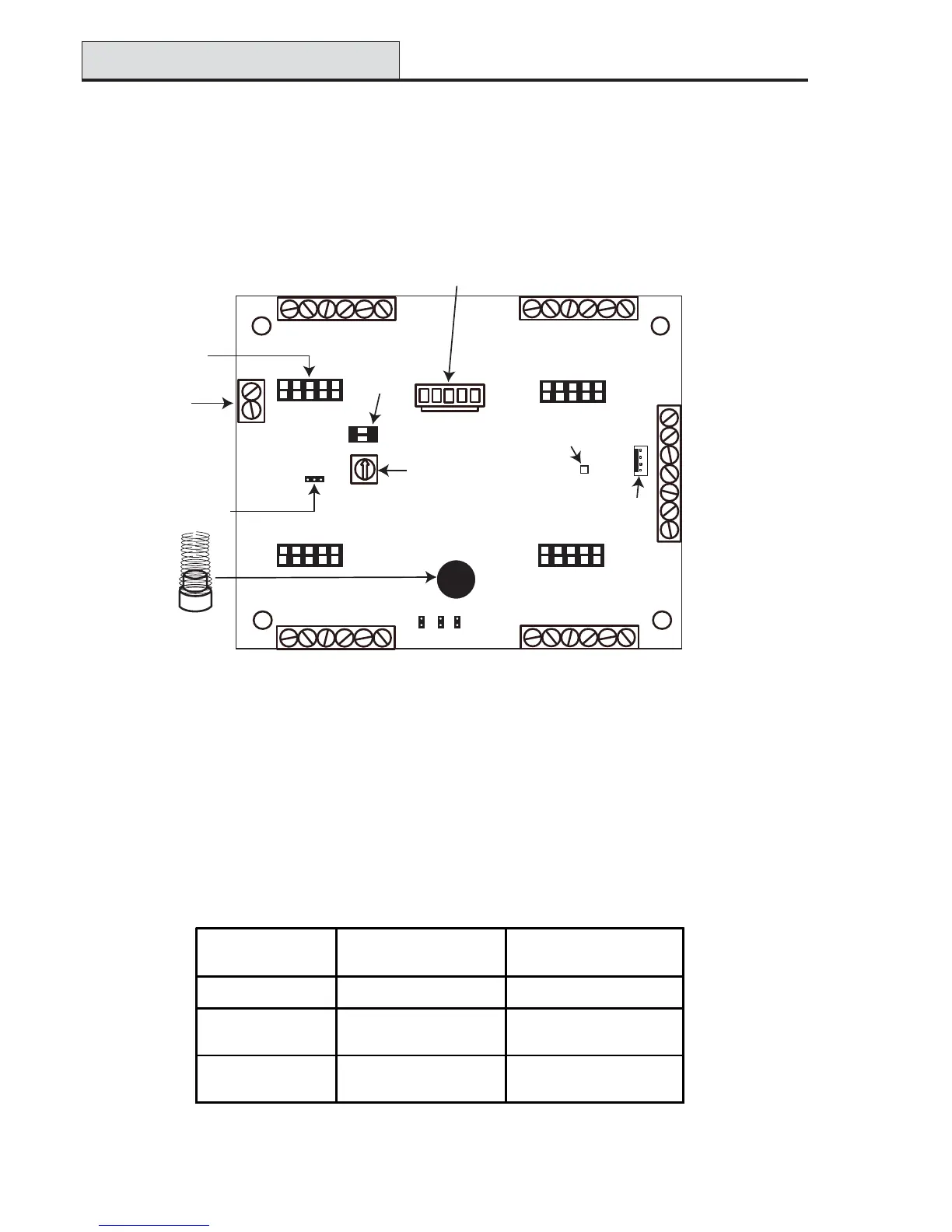

Figure 3.3. Galaxy Output Module
Table 3-9. Valid Output Module Addresses
O N
O N
1 2
1 2
DIP
Switch
B
A
-
+
Engineer
Socket
(RS485 line)
Rotary
Address
Switch
Tamper switch
and spring
MODE
TEST
TAMPER
Bypass
Configuration
Jumpers
B
A
- (0V)
+ (12V)
+ (12V)
- (0V)
S (screen cable
connect)
}
RS485 line
}
Module
power
supply
{
+
1
2
3
4
-
Primary Outputs
+
5
67
8
-
+
16
15
14 13
-
+
12
11
10 9
-
LED
BUZZER
ext
int
Jumper
RM3
RM4
RM2RM1
Secondary Output
Connectors (RM1-4)
for Relay Module
Normally Open
relay output
ISP
Connector for
firmware upgrade
CN1
CN2
CN4
CN3
Primary Outputs
Primary Outputs
Primary Outputs
Galaxy Panel
No of Output Modules
(Maximum)
Valid Addresses
3-48 4 2, 3, 4, 5
3-144
8 (line 1)
8 (line 2)
1-8 (line 1)
0-7 (line 2)
3-520
15 (line 1)
16 (lines 2-4)
1-9, A-F (line 1)
0-9, A-F (lines 2, 3, 4)
