Galaxy 3 Series Installation Manual
4-1
Mk7 Keypad/KeyProx
Section 4: The Galaxy Mk7 Keypad/KeyProx
NOTE: References in the text to the Mk7 keypad also includes the KeyProx in this section.
General
The Galaxy Mk7 keypad/keyProx has the following features:
• a 2 x 16 alphanumeric character backlit display
• 16 backlit push buttons as shown in figure 4-1
• internal horn
• power indicator LED
• Lid tamper
• Off-wall tamper
• Address switch
• RS485 serial connector

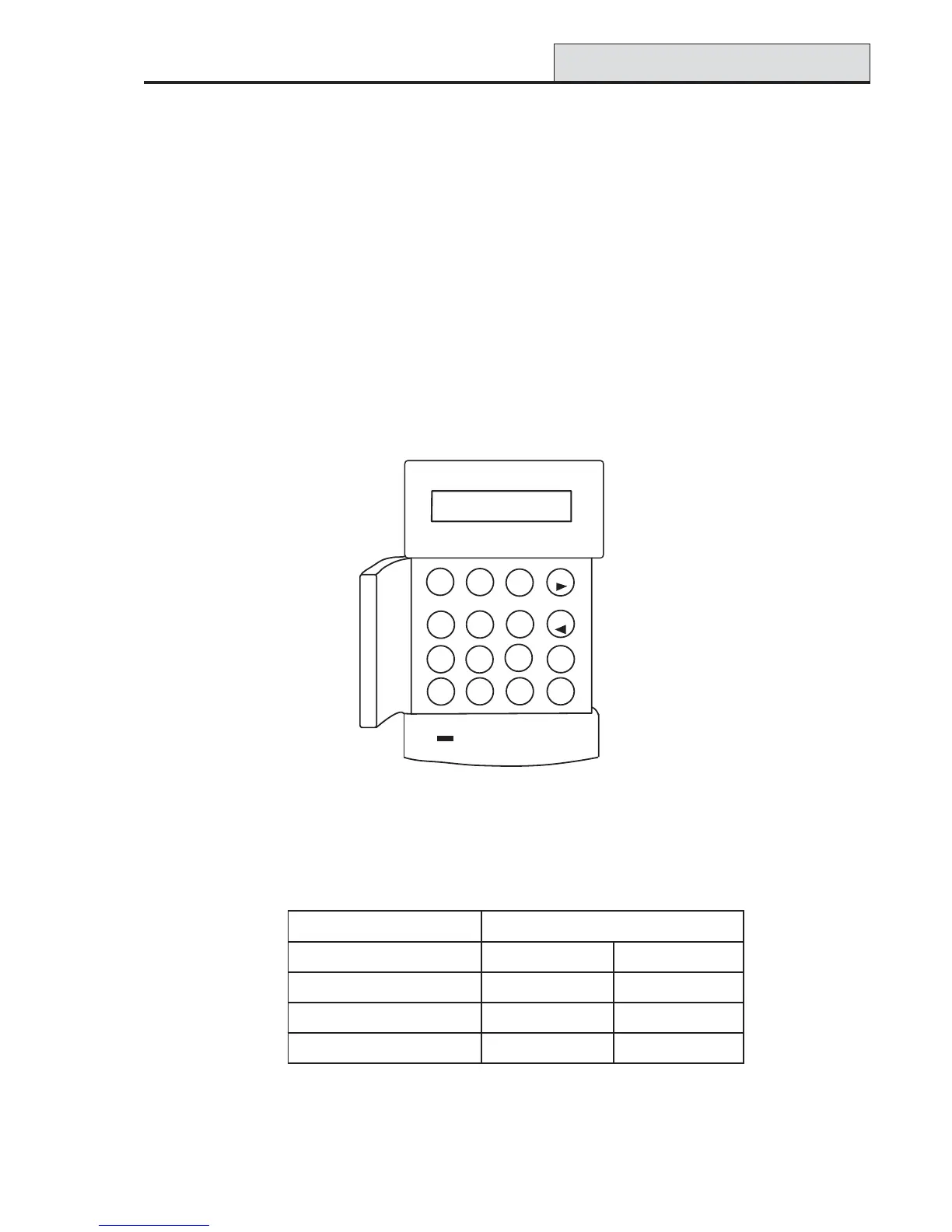

Figure 4-1. Galaxy Mk7 Keypad/KeyProx
Power Consumption
The Galaxy Mk 7 keypad/keyProx requires a 12 Vd.c. supply – from the control panel or a remote power
supply. The current consumption of the keypad/keyProx is:
Table 4-1. Keypad/KeyProx Current draw
warDtnerruC
edoMdapyeK7kMxorpyeK7kM
)FFOthgilkcab(lanimoNAm53Am57
NOthgilkcaBAm55Am59
tnerruCmralAmumixaMAm09Am03
1
GALAXY 144 V5.00
08:58 TUE 22 NOV
1
2
3
A
4
5
6
B
7
8
9
ent
*
0
#
esc
