Galaxy 3 Series Installation Manual
3-17
RS232 Interface Module - E054
The Galaxy RS232 module provides full duplex serial communication between Galaxy control panels and PCs
or printers.
For further information regarding the Galaxy RS232 Interface Module refer to RS232 Module, Operating
Instructions (IO1-0054)

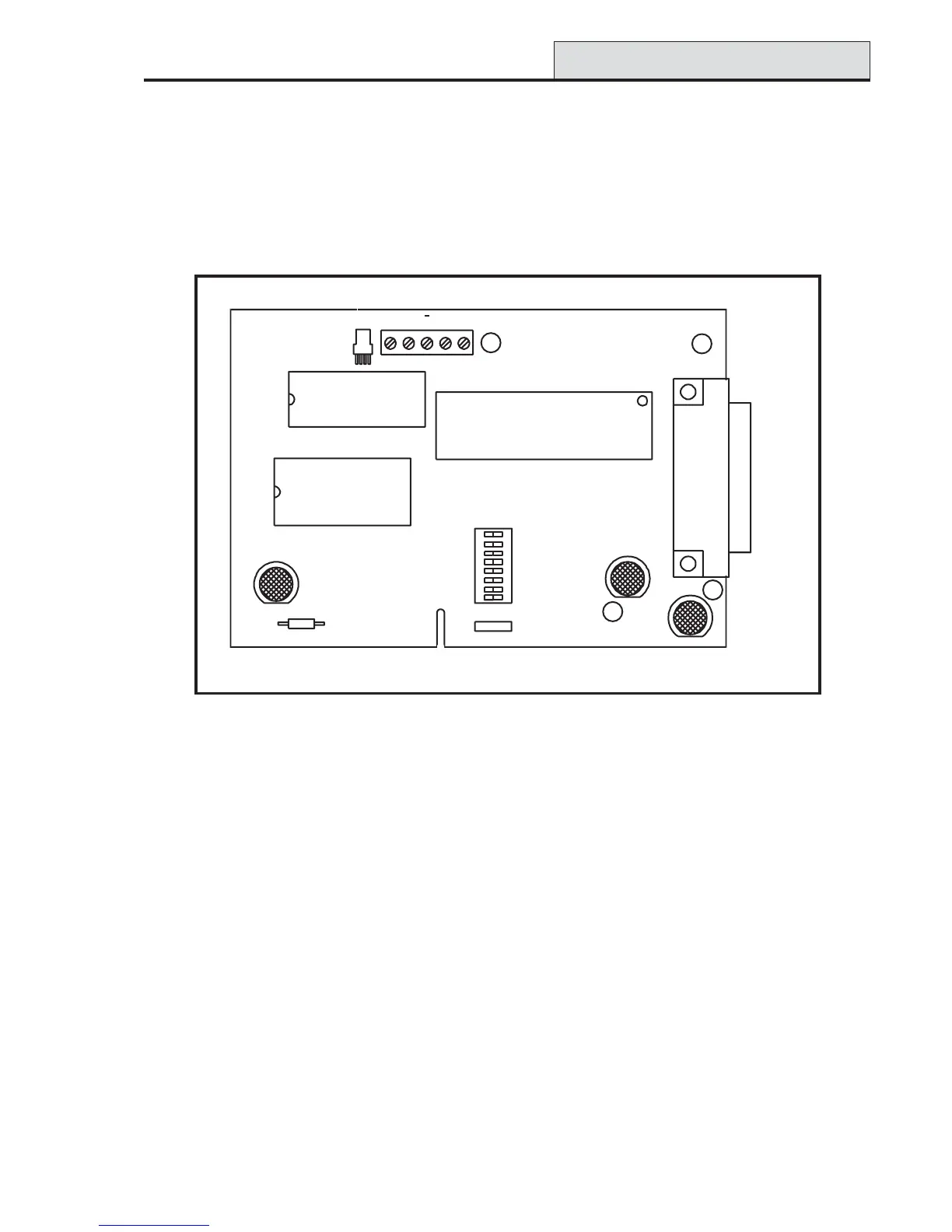

Figure 3-8. RS232 Interface Module
NOTE: The position of components on the RS232 PCB may vary with different hardware revisions.
NOTE: This module cannot be used to copy or overwrite programming from the Galaxy 3-144 or 3-520
panels.
Interface with a PC
The panel can be directly linked to a PC via the RS232 module allowing remote servicing via Galaxy Gold or
system supervision via Alarm Monitoring or SIA protocol.
RS232 Interface Module
MEM BK
SW2
TAMPER
LK1
SW1
ON
DIP
S1
LINE
B
A
12V
+
S
BA - +
LD1
LD3
COPY
LD4
SW4
SW3
LD2
1
2
3
4
5
6
7
8
JP2
25 Way
RS232
Interface
JP1
OVERWRITE
PROM1
COPY
Rev 1.11
