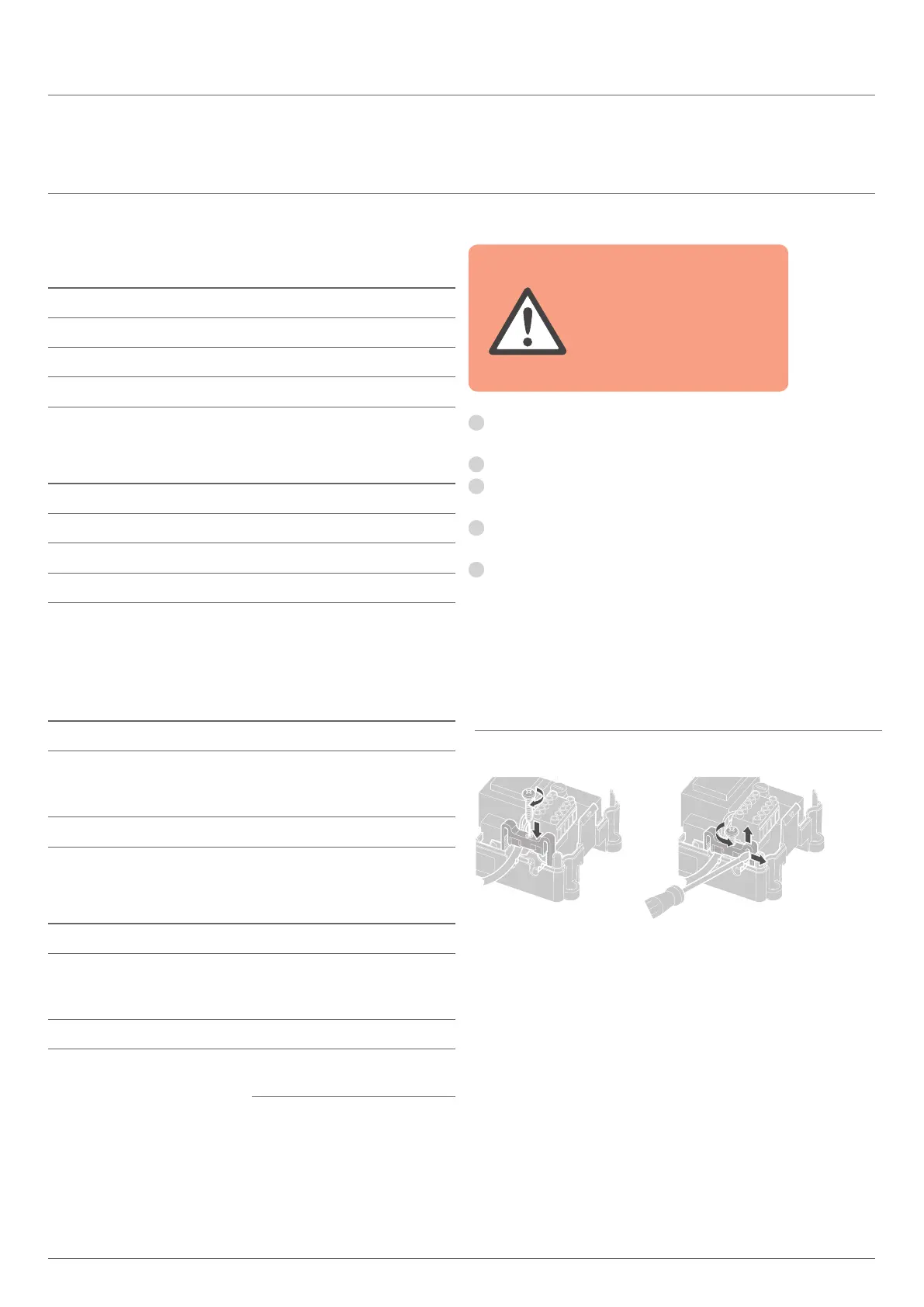

HCE80(R) / HCC80(R) Mounting and operation
11
Permissible cable types and lengths
Thermal actuators
Outer cable diameter min. 3.5 mm / max. 5.3 mm
Cable length max. 400 m
Cable cross-section max. 1.0 mm²
Stripping length 4 mm
Terminal range of
the connectors
0.07 - 1.33mm²; flexible wire
Power and pump connection 230 V AC
Outer cable diameter
min. 8.0 mm / max. 11 mm
Cable length
max. 100 m
Cable cross-section max. 1.5 mm²
Stripping length 7 mm
Terminal range of
the connectors
0.50 - 2.50mm²;
flexible/fixed connection
0.50 - 1.50mm²;
flexible, with wire end ferrule
Antenna connection
Cable length
Max. 30 m
Cable cross-section JE-LiYCY 2 x 2 x 0.5 mm²;
JE-Y(St)Y Ø 2 x 2 x 0.8 mm;
2 x 0.5 mm²
Stripping length 5.5 mm
Terminal range of
the connectors
0.07 - 1.54 mm²
Heating/cooling, boiler feedback
Cable length
Max. 100 m
Cable cross-section JE-LiYCY 2 x 2 x 0.5 mm²;
JE-Y(St)Y Ø 2 x 2 x 0.8 mm;
2 x 0.5 mm²
Stripping length 5.5 mm
Terminal range of
the connectors
0.07 - 1.54 mm²
Connecting the power cable
DANGER! Danger to life through
electric shock!
Contacts that are
open are live.
f Ensure that the cable
is deenergized.
1
Select a suitable cable for the power supply
from the permissible cable types.
2
Strip the connections 7 mm (see fold-out page, Fig. 7).
3
Connect the cable to the connector
(see fold-out page, Fig. 4 (12)).
4
Plug the connector into the socket
(12) (see fold-out page, Fig. 4).
5
Secure the cable with the cable clamp.
Cabling
Installation Disassembling
