Rev. 1.01 6 900.0570
8-Sept-05
2.3 DOME CONNECTIONS, CONTINUED
2.3.2 Star Wiring Configuration
Note: Details on termination and dome installation are covered in the dome manual.

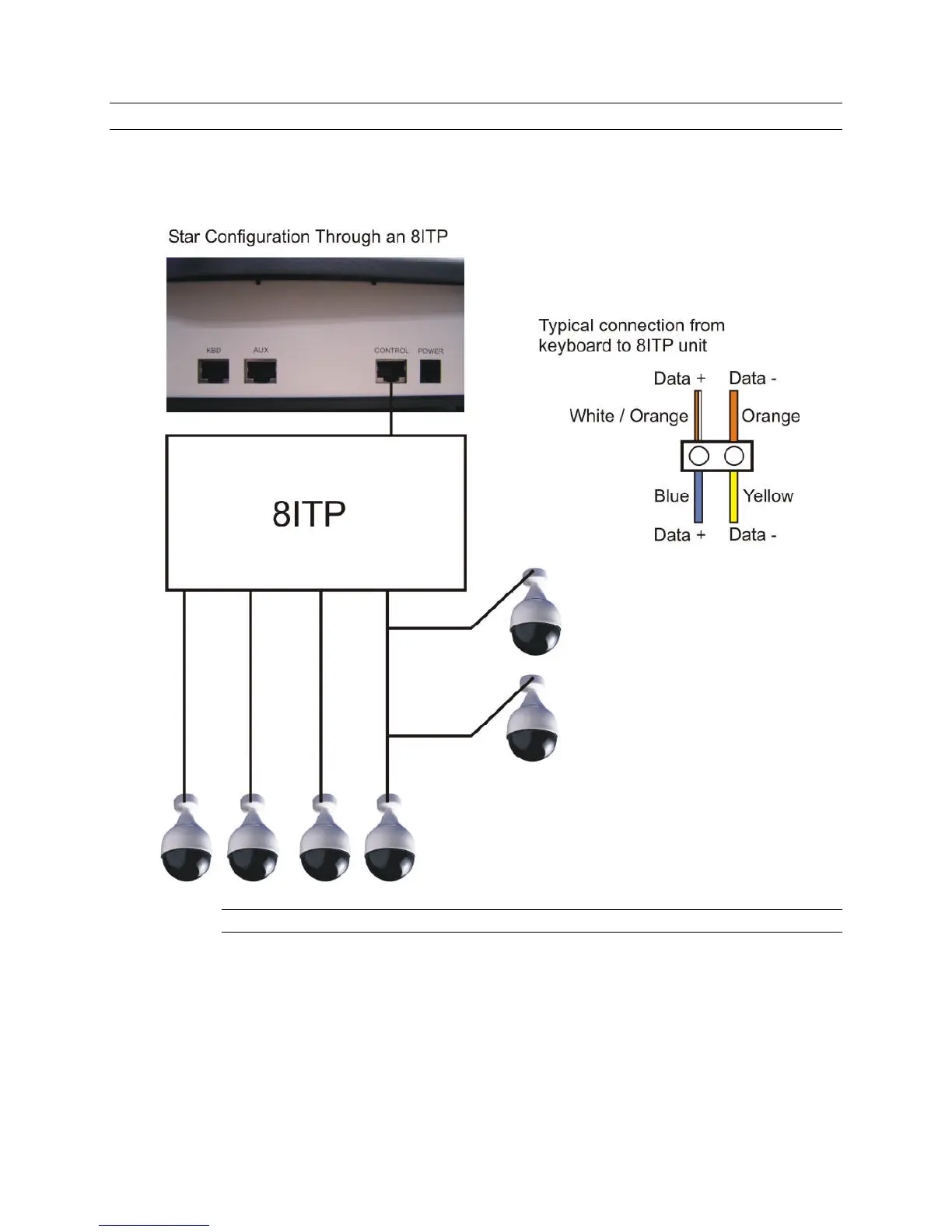

Figure 5. DOME STAR WIRING CONFIGURATION
