ID3000/ID2000 Fire Panel Configuration Tool Manual
Loop Devices
3 - 12 997-291, Version 3.05
November 2010
Multi-criteria (MULTI) Sensor Levels
Sensitivity MULTI Sensor
Levels Default Settings
L0 No Pre-alarm (ID3000)
L1 (Most)
L2 For Pre-alarm Threshold
L3
L4
L5 (Least) For Alarm Threshold
L6 Thermal-Only mode (Optiplex)
MULTI Sensors
When configuring the Alarm and Pre-alarm
sensitivity for MULTI sensors, there are only
five sensitivity levels, as shown opposite.
‘Optiplex’ MULTI sensors (SDX-751TEM) have
an additional Thermal-Only mode (i.e. sensor
does not respond to smoke), L6. Normally, these
sensors would be configured at, for example,
L5 for Alarm, with the Thermal-Only mode
invoked via a Time-of-Day program or the
panel’s Day Mode pushbutton. See Section 5.3.
For Pre-alarm to operate, the Pre-alarm
Threshold MUST be set at least one level below
the Alarm Threshold (set to equal or above if
Pre-alarm is not required [or to L0, ID3000
only]). In Thermal-Only mode (L6), Pre-alarm
applies to both smoke and heat, unless L6 is
linked to Time-of-Day or Day Mode with Lock
Pre-alarm monitoring (see Section 3.2.1, bullet
item 10iv) not set, in which case there is NO
Pre-alarm in L6 mode.

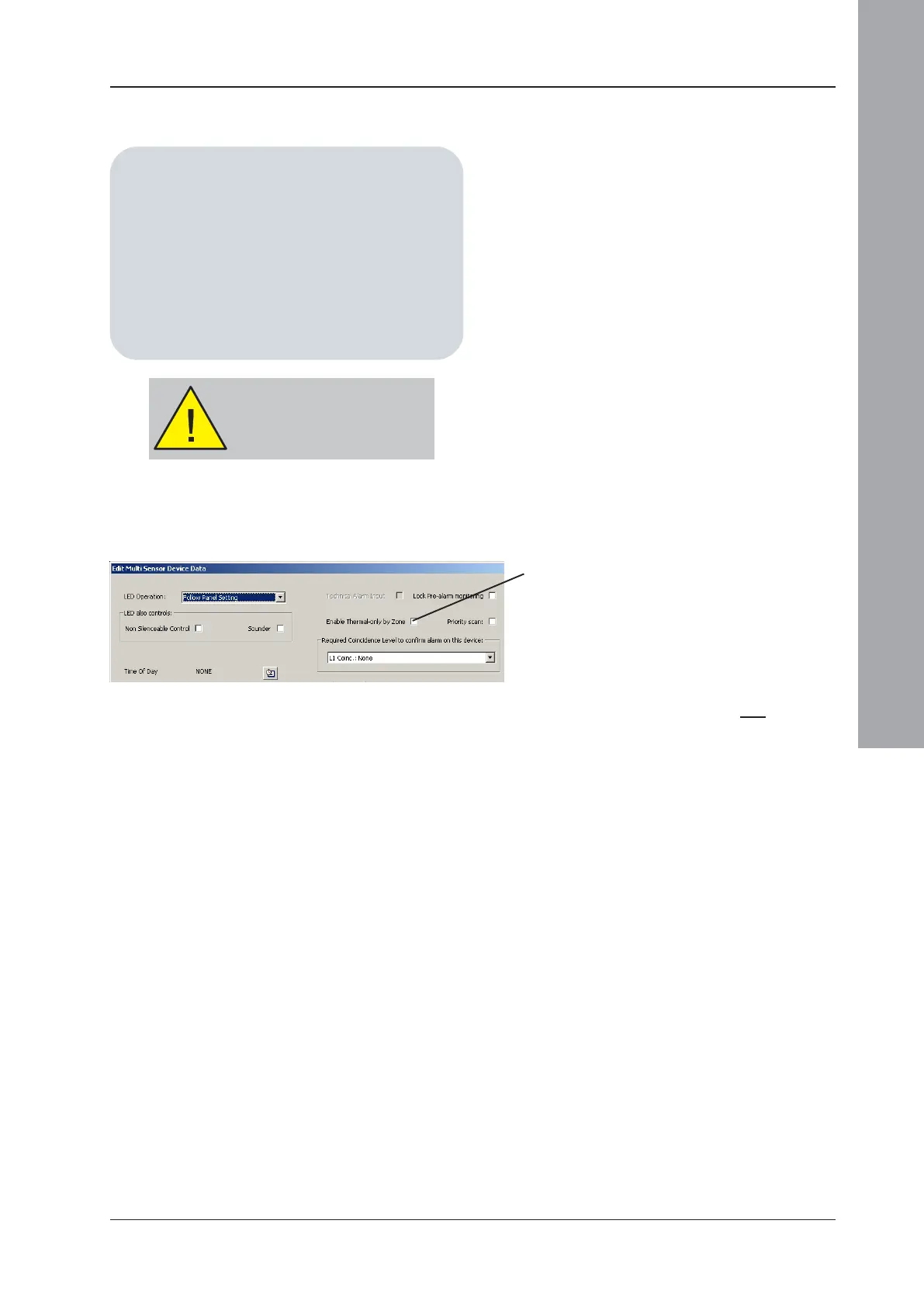

Thermal Mode by Zone (Optiplex only)
All Optiplex sensors in a zone or range of zones
and for which this box is checked can be set
to their Thermal-Only mode by the Control Matrix.
Note: An Optiplex sensor can be configured
to enter Thermal-Only mode both via
Thermal Mode by Zone and via Time-
of-Day or Day Mode pushbutton.
Pre-Alarm threshold value
MUST be LOWER than the
Alarm threshold value to be
effective.
