4.5.4)
Relays (Outputs)
The "Relays" menu is used to enable and program the characteristics of the outputs that
are part of the system.
Relay overview

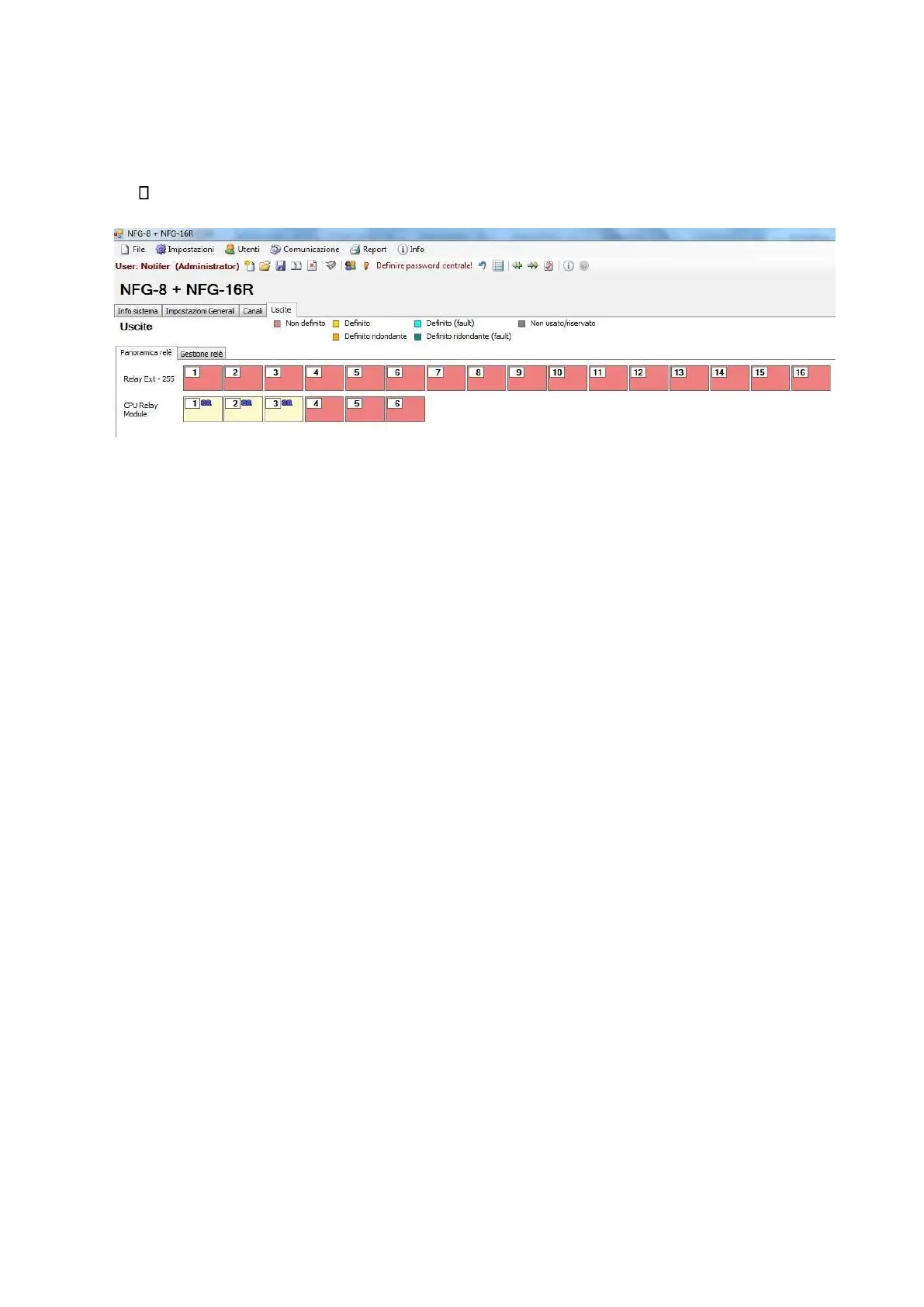

Fig. 4.5.4 a) Relay overview screen
The Relay overview (outputs) gives a summary picture of how many outputs the NFG-
8 system is composed of, how many of them are defined (rectangle with data inside).
Different colors represent the different output modes: undefined , defined, defined
redundant etc.
To have a summary of the programming data of each output, pass over it with the
mouse and a summary window will appear with the configuration parameters.
To set or modify the output parameters, click on it with the mouse and you will
automatically access the "Relay Management" screen where to make the settings.
