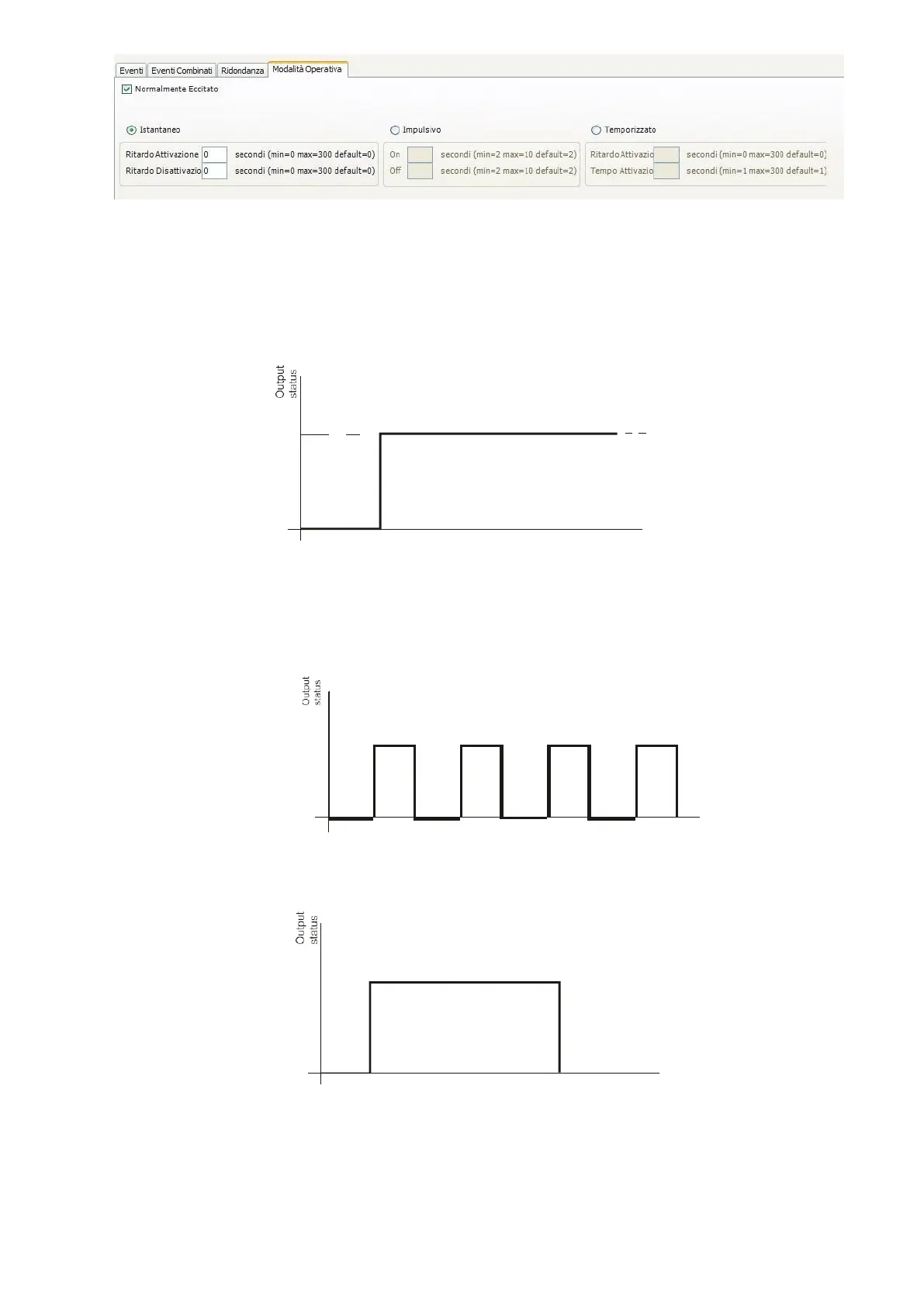

Fig. 4.5.4 m) Output operating mode
Instantaneous follows the status of the event: Event active: (detector in alarm) output
activated (after a possible delay); event reset:
output deactivated (after any delay time)
Output operation mode Steady
On
activated until the
channel restore +
the Deactivation Delay
Off
Delay
Activation
t
0
Impulsive Intermittent mode with settable ON and OFF time
Output operation mode Pulsed
On
Off
T1
T2
T1
T2
Timed single pulse with adjustable activation and deactivation
delay times.
0
T1
T2
t
The option "Normally Energized" defines whether the output is normally activated or
normally deactivated, in normal operation.
