Overview Modes and Special Functions

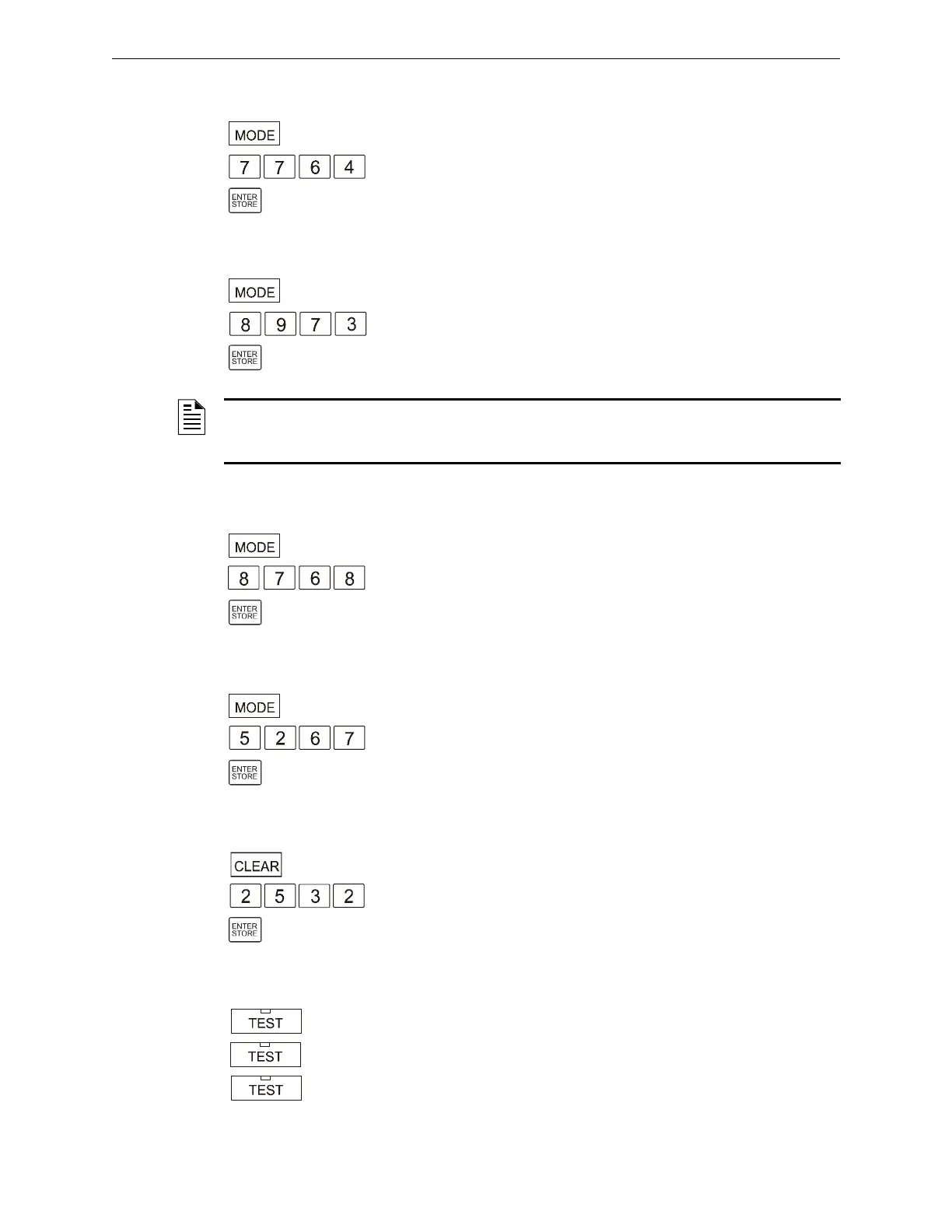

1.12.2 Program Mode
Program Mode is used to program the UDACT. While the UDACT is in
the program mode, it cannot receive host FACP status information. Refer
to “Programming Instructions” on page 28 for complete information.
1.12.3 Type Mode
Type Mode is used to define the specific type of device (point) used or
function of a zone. Type Mode is also used to disable the alarm report for
any zone/point in the system.
1.12.4 Troubleshoot Mode
Troubleshoot Mode may be used for testing the telephone line wiring.
Connection from the UDACT's modular jacks, through RJ31X jacks and
into the telephone network may be easily checked. In this mode, the
keypad acts similar to a telephone touchpad.
1.12.5 Lamp Test Mode
Lamp Test mode turns on all segments of the 4 character display plus all
LEDs on the UDACT, except primary and secondary LEDs.
1.12.6 Clear Function
When the clear function is activated, it causes the UDACT to
immediately stop transmissions, hang-up from the telephone network
and clear out any messages that were waiting for transmission and reset.
1.12.7 Manual Test Function
The manual test function allows for a test report message to be sent to
both Central Stations upon activation.
NOTE: AM2020/AFP1010, NFS-3030, NFS2-3030, NFS2-640, NFS-640, NCA-2, and NCA
applications restrict Type Mode programming to a maximum of 568 points. All remaining points
above 568 will report as fire alarm points only.
