26 UDACT Instruction Manual — P/N 50050:M 12/18/2009
Installation and Wiring Relay Driver (Auxiliary Output) Connections

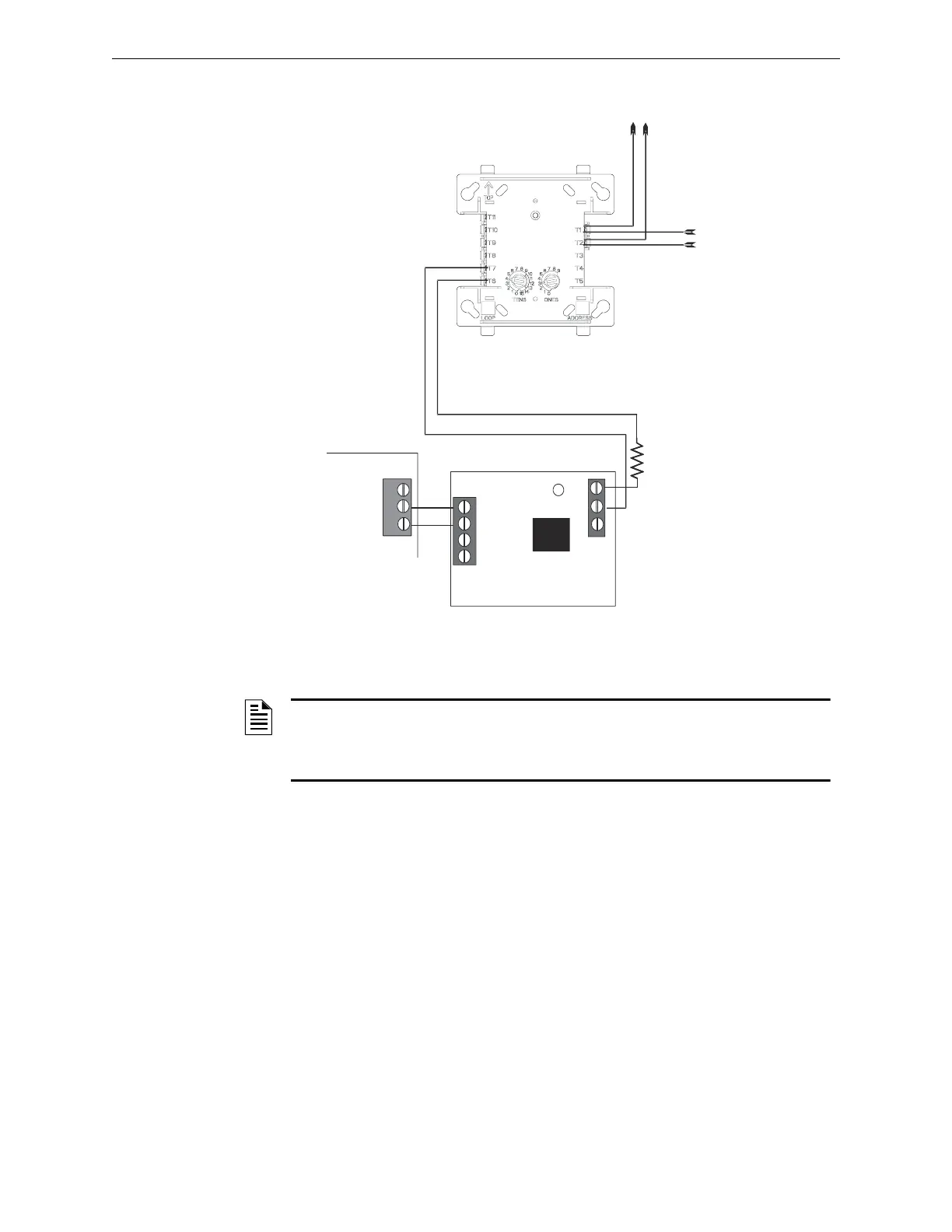

Figure 2.10 Monitoring for UDACT Trouble
0
NO
ON
NC
C
18/24
115
230
+24 VDC
Comm FAILURE
EARTH
TB3
SLC from FACP
Continuation of SLC
FMM-1*
47K EOL Resistor
(included)
UDACT-05tph.wmf
(MR-201/C may be used)
NOTE: An FMM-1 Monitor Module is used to supervise the Normally Closed output of
MR-101/C. If a Trouble Condition or Communication Failure occurs on the UDACT, the
MR-101/C relay contact will open, causing the FMM-1 to transmit a trouble condition to
the FACP.
UDACT
MR-101/C
*If the SLC device does not match the one in this figure, refer to the SLC manual appendix, which contains wiring conversion charts for
type V and type H modules.
