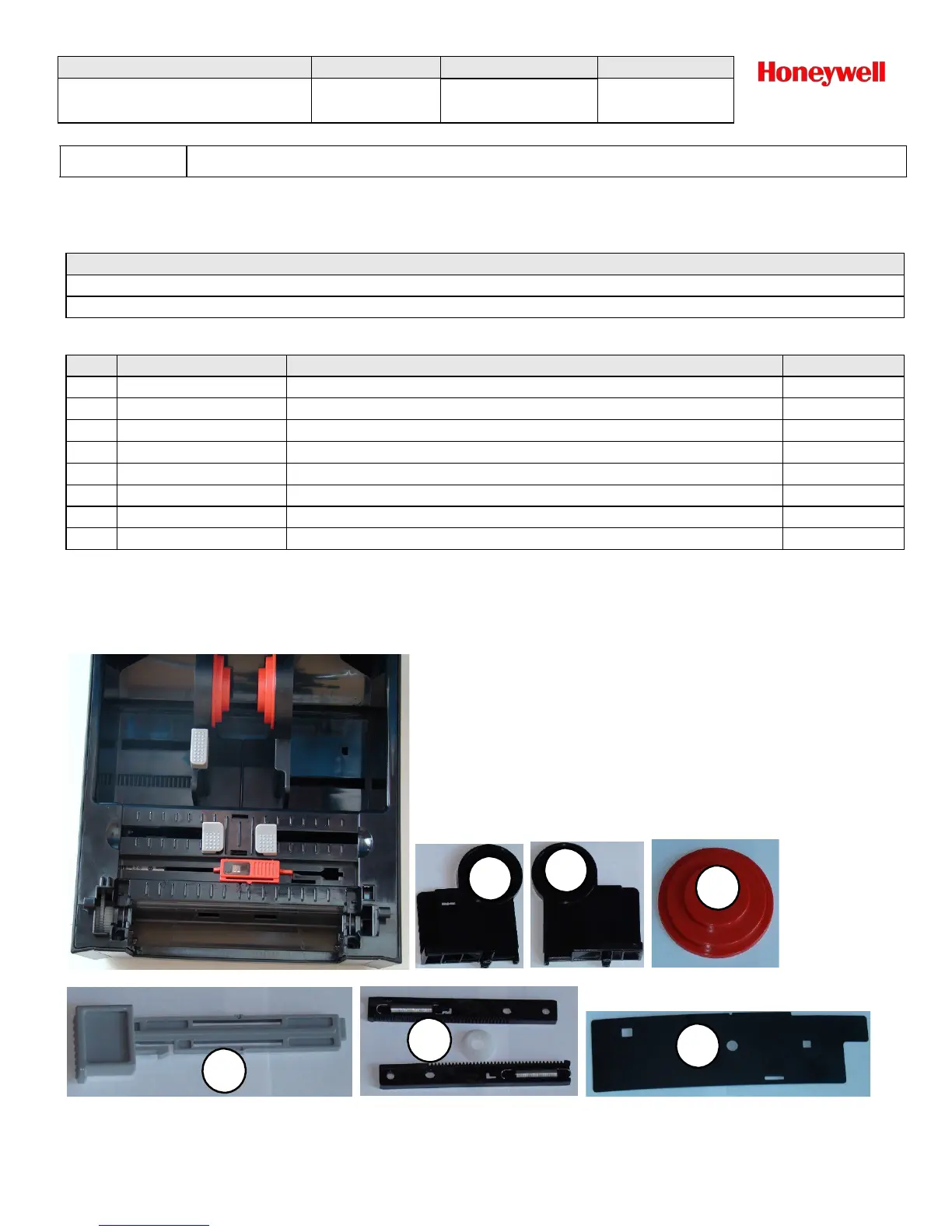

Honeywell PC42d - Page 10

L3-GLBL-RPR-4260 (Rev A)
Tools Required
Description
Torx Driver T10
Phillips Driver
Parts Required
Item
Part Number
Description
Qty
1
50128695-001FRE
FRE, Bracket, Media, Left, Black
1
50128695-002FRE
FRE, Bracket, Media, Left, Gray
1
2
50128696-001FRE
FRE, Bracket, Media, Right, Black
1
50128696-002FRE
FRE, Bracket, Media, Right, Gray
1
3
50120023-001FRe
FRE, Bush Media Bracket
1
4
50128698-001FRE
FRE, Latch Auto Center
1
5
50128697-001FRE
FRE, Rack Assembly
1
6
50128679-001FRE
FRE, Mylar Auto Center, 20-Pack
Media Guide Assembly
4. Remove the 4 mounting screws. See Figure 1.
5. Remove the 2 mounting screws on the bottom of the printer. See Figure 2.
6. Remove the bottom enclosure
6
5
4
3
2
1
OPERATION:
Media Guide Assembly
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 10 of 25
