Honeywell PC42d Service & Repair Manual

L3-GLBL-RPR-4260 (Rev A)
OPERATION:

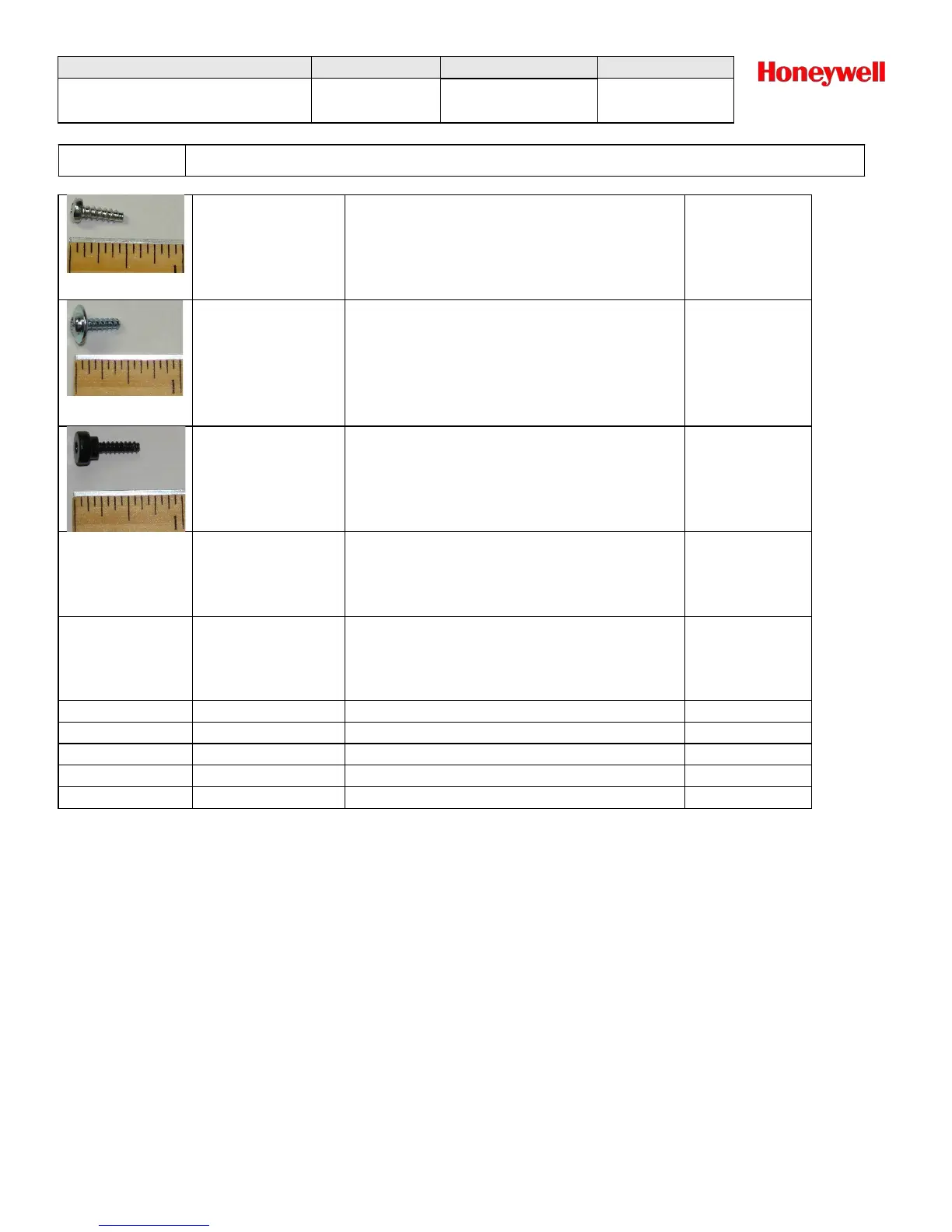

Example Screws & Torque Settings
50110527-001FRE
SCREW, M3 - 1.27X 10L
Attaches the bottom enclosure x4
Attached the stepper motor assembly to
upper chassis assembly x4
Comes in pack of 100 screws
(9±0.45kgf/cm)
Phillips
50121884-001FRE
Flange Plastite Screw 3x10
Attaches MLB to frame x1
Attaches drive gears x4
Attaches door latches x2
Attaches chassis
Comes in pack of 100 screws
9±0.45kgf/cm
Phillips
50123285-001FRE
Hex Socket Plastite Screw 3X12.2
Secures the media cover hinges
Comes in pack of 100 screws
9±0.45kgf/cm
T10 Torx
50123375-001
Screw, Ground PIN M3x4
Not a service part. Comes as part of the
printhead assembly
6±0.3kfg/cm
Phillips
50121888-001FRE
FRE, Plastite Screw
Attached gap sensor to the main chassis
assembly
Comes in pack of 100 screws
2±0.1kgf/cm
Phillips
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 23 of 25

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
