L3-GLBL-RPR-4260 (Rev A)
Tools Required
Description
Torx Driver
Phillips Driver
Parts Required
Item
Part Number
Description
Qty
1
50128683-001FRE
FRE, Chassis, Top, Black
1
50128683-002FRE
FRE, Chassis, Top, Gray
1

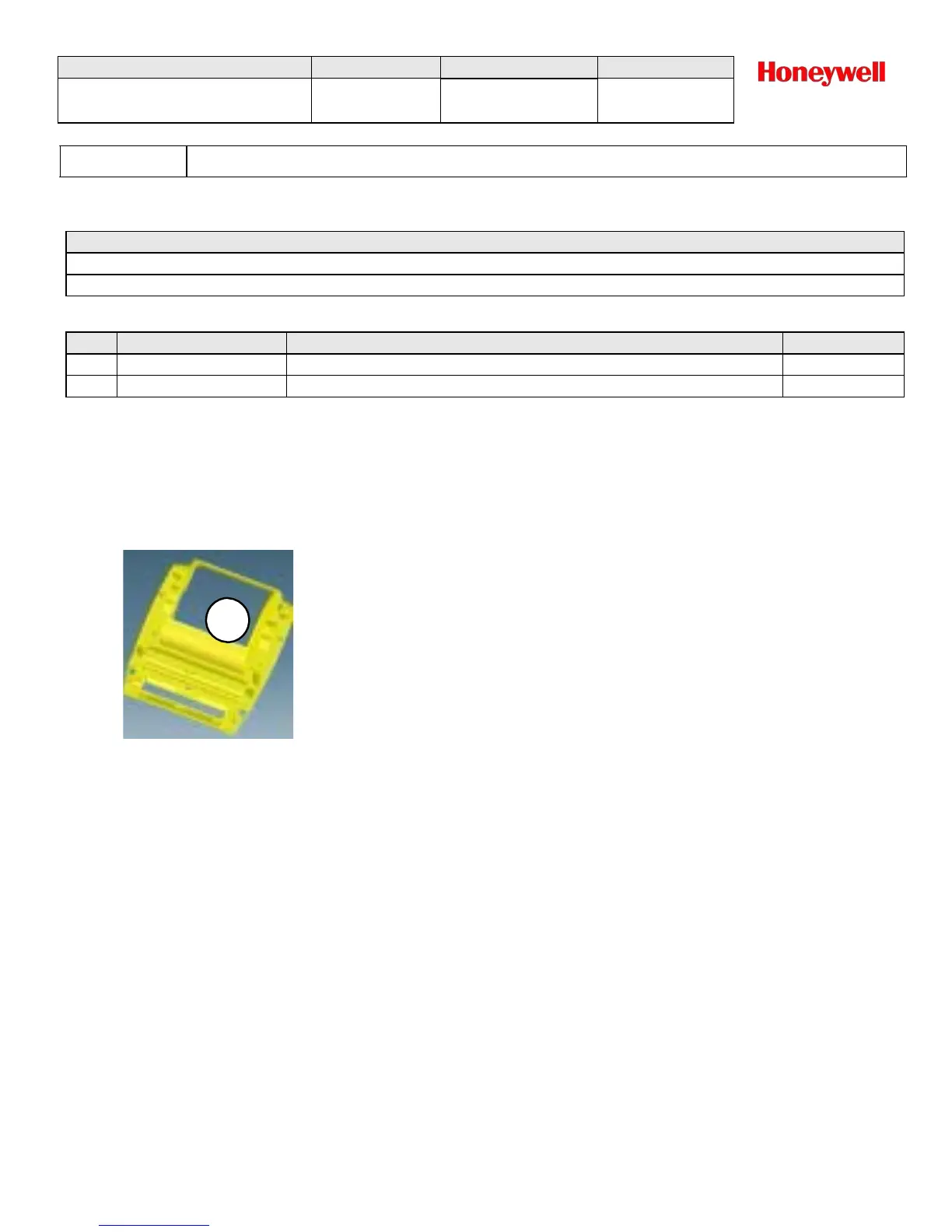

Upper Chassis Assembly Removal
1. Flip printer over and remove the 4 mounting screws. See Figure 1.
2. Disconnect stepper motor assembly cable from the MLB. See Stepper Motor Assembly Section.
3. Remove stepper motor assembly mounting screws. See Stepper Motor Assembly Section.
1
OPERATION:
Upper Chassis Assembly
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 21 of 25
