Honeywell PC42d Service & Repair Manual

L3-GLBL-RPR-4260 (Rev A)
The top enclosure will require the bottom enclosure to be removed for ease of removal. Blue gray enclosures are
available for BCC only.
Tools Required
Description
Torx Driver T10
Phillips Driver
Parts Required
Item
Part Number
Description
Qty
1
50128684-001FRE
FRE, Window, Media
1
2
50131400-001FRE
FRE, Assy, Top Cover, Black (
1
50121857-003FRE
FRE, Assy, Top Cover, White
1
3
50128692-001FRE
FRE, Cover Bottom, Black
1
50128692-002FRE
FRE, Cover Bottom, White
1
4
50130680-001FRE
FRE, Cover Bottom Peel Off, Black
1
50130680-002FRE
FRE, Cover Bottom Peel Off, White
1
5
50130021-001FRE?
Screw, M3 - 1.27X 10L, 100-Pack (torque value 9±0.45kgf/cm)
6

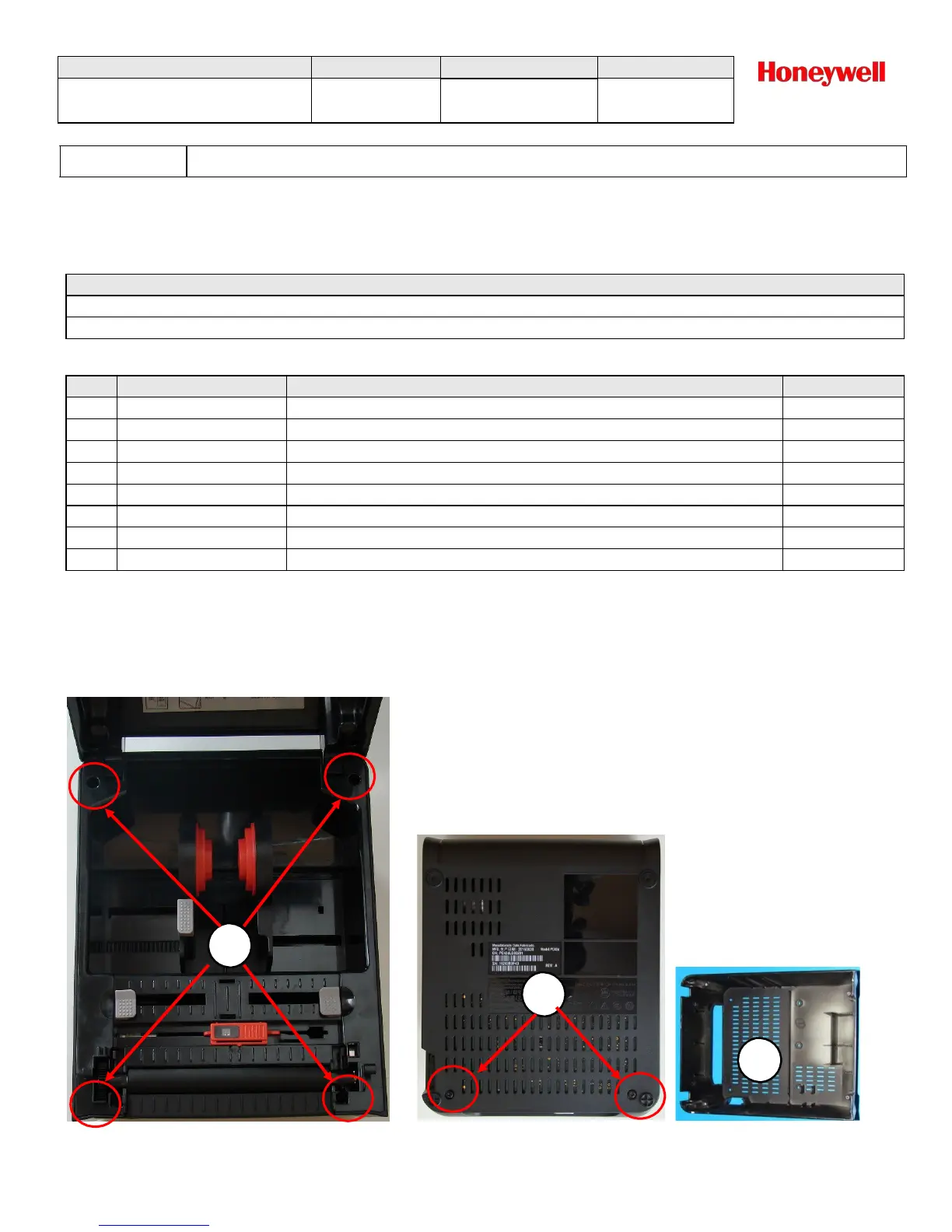

Bottom Enclosure Removal
1. Remove the 4 mounting screws. See Figure 1.
2. Remove the 2 mounting screws on the bottom of the printer. See Figure 2.
3. Remove the bottom enclosure
Figure 2 – Mounting Screws Bottom Enclusure
3
5
OPERATION:
Top/Bottom Cover Assembly
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 8 of 25
5
Figure 1 – Mounting Screws

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
