Honeywell PC42d Service & Repair Manual

L3-GLBL-RPR-4260 (Rev A)
General Precautions
This symbol within the document represents an important HSE Safety requirement/alert.
This symbol within the document represents an important quality step.
Safety Training
Consult the local HSE Cell Risk assessment to become familiar with any potential hazards while working with the
XXXX scanner.
HSE training for this Scanner should include;
• Hand and Portable Tools
• Hazardous Chemical Management
• Laser Safety
• Lead Safety
• PPE
• Safety Awareness
Safety glasses must be worn.
Quality Training
Training per the local Honeywell site for Technicians/Repair personal should include;
• Soldering Verification (add any additional training that would be required)

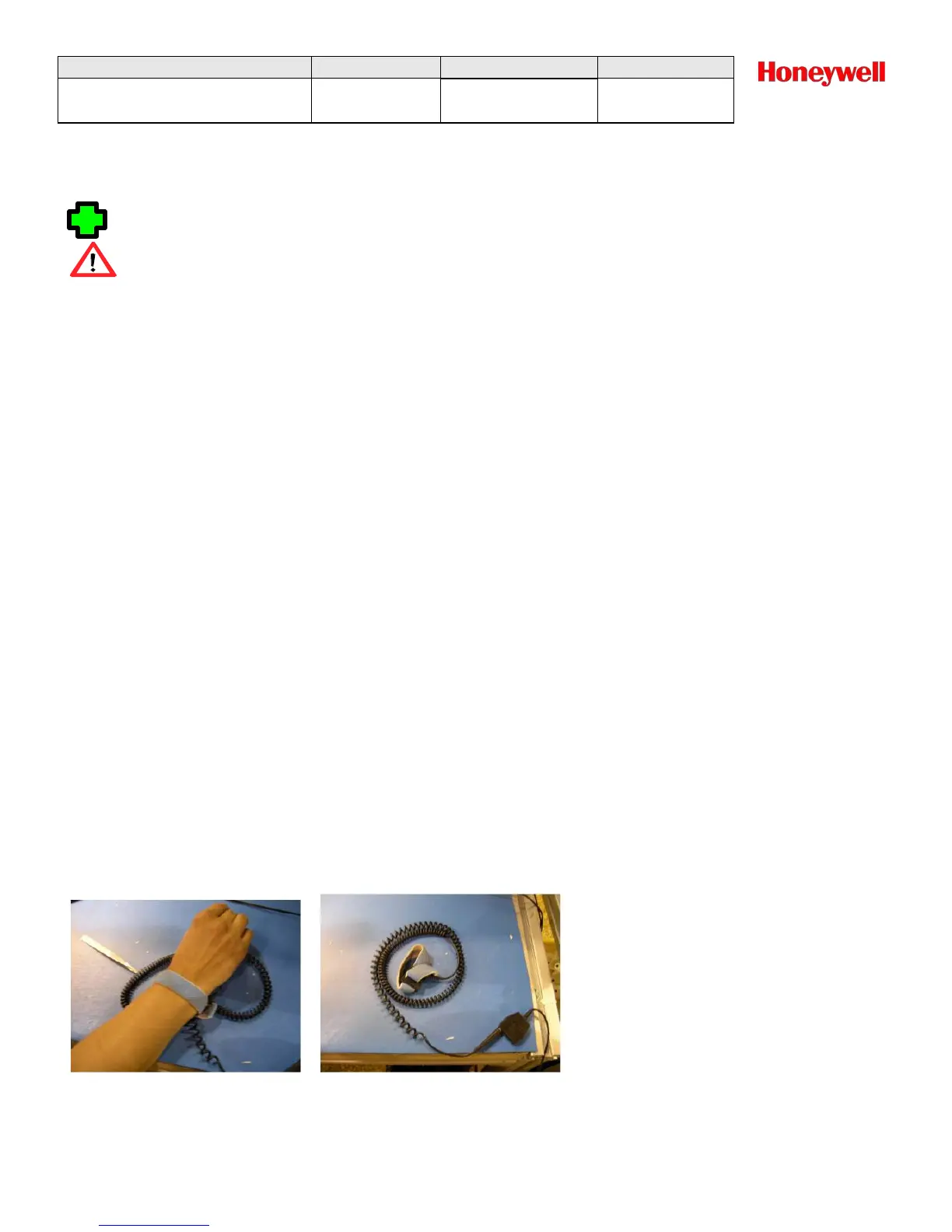

Product ESD Information
This product contains ESD sensitive components or ElectroStatic Discharge sensitive electronic parts. The
Electrostatic discharge is defined as the transfer of charge between bodies at different electrical potentials. An ESD
event has the ability to modify the electrical characteristics of a semiconductor device, possibly degrading or even
destroying it. ESD also may upset the normal operation of an electronic system, causing equipment malfunction or
failure.
ESD PREVENTION STEPS MUST BE USED DURING ANY REPAIRS OR MODIFICATIONS TO THIS
UNIT. PERFORM ALL WORK AT A CERITFIED ESD WORK STATION.
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 5 of 25

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
