Honeywell PC42d Service & Repair Manual

L3-GLBL-RPR-4260 (Rev A)

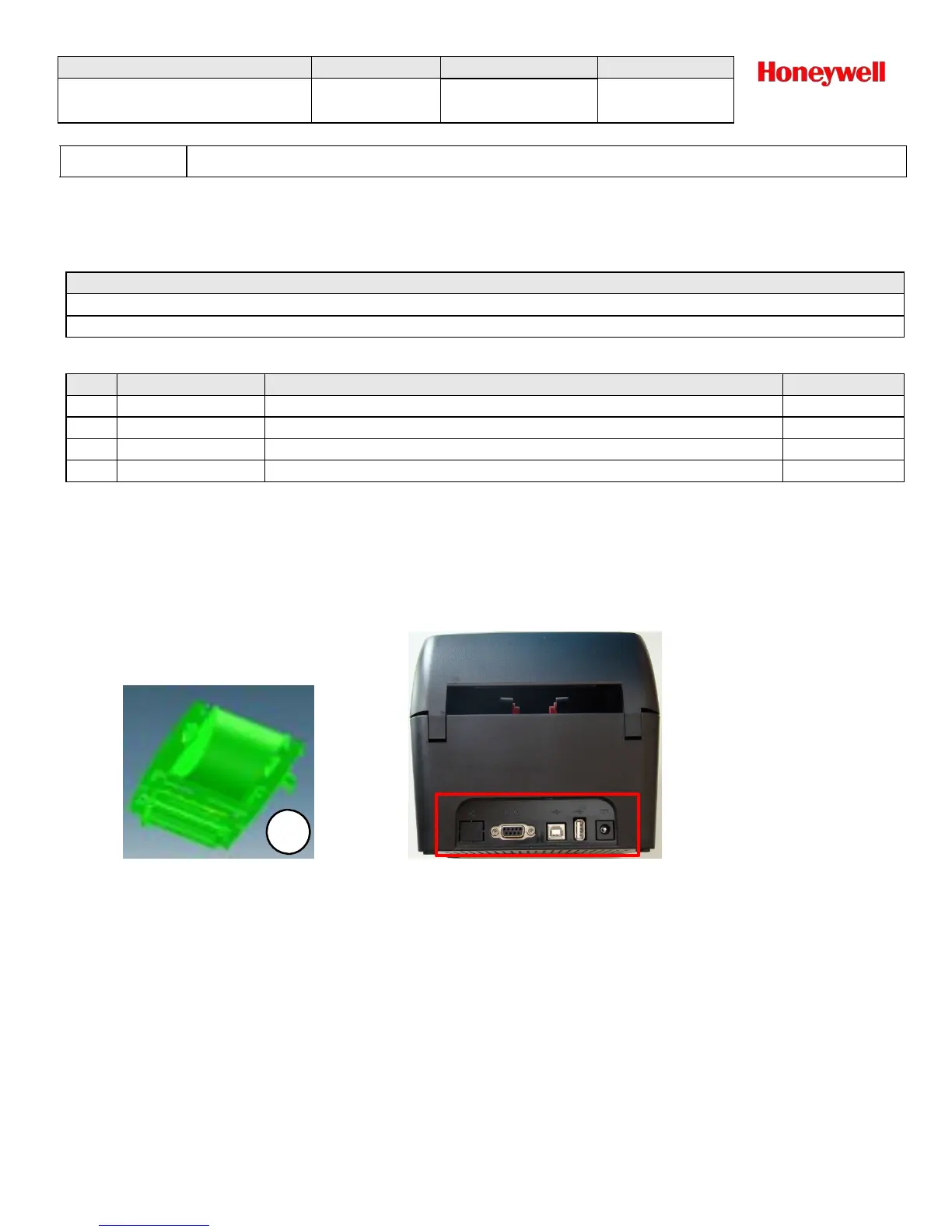

The differences in the lower/mid chassis assembly are the different interface option on the main logic board (MLB).
Tools Required
Description
Torx Driver
Phillips Driver
Parts Required
Item
Part Number
Description
Qty
1
50128693-001FRE
FRE,Chassis Bottom Cover, Black, USB
1
50128693-003FRE
FRE,Chassis Bottom Cover, Black, USB+RS232
1
50128693-004FRE
FRE,Chassis Bottom Cover, Black, USB+Ethernet
1
50121859-008FRE
FRE,Chassis Bottom Cover, Black, USB+RS232+Ethernet (Not available)
1
Upper Chassis Assembly Removal
1. Flip printer over and remove the 4 mounting screws. See Figure 1.
2. Disconnect stepper motor assembly cable from the MLB. See Figure 18.
3. Remove stepper motor assembly mounting screws. See Figure 19.
Lower Chassis Assembly
1
OPERATION:
Lower Chassis Assembly
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 22 of 25

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
