Honeywell PC42d - Platen Roller Assembly

L3-GLBL-RPR-4260 (Rev A)
Tools Required
Description
Parts Required
Item
Part Number
Description
Qty
1
50131328-001FRE
FRE, Assy, Platen Roller Module, Black
1
50131328-002FRE
FRE, Assy, Platen Roller Module, Gray
1
Platen Roller Removal

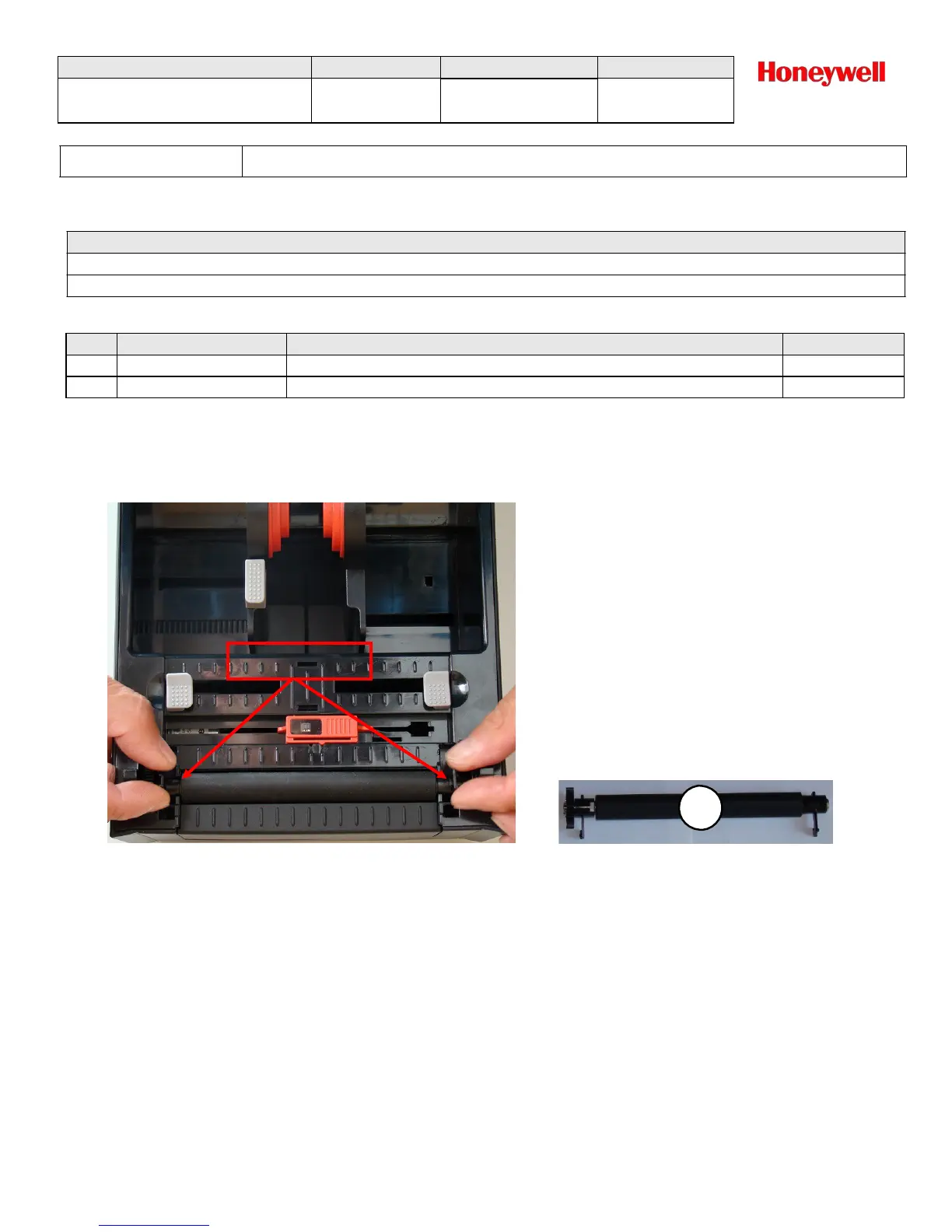

1. Carefully lift the platen roller assembly with a soft plastic tool away from the upper chasis assembly. See
Figure 7.
Figure 7– Platen Roller Removal Platen Roller Assembly
1
Location to lift
OPERATION:
Platen Roller Assembly
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 12 of 25
