Honeywell PC42d Service & Repair Manual

L3-GLBL-RPR-4260 (Rev A)
CPU
PWR Switch
DC Input
RS232 Option Ethernet Option
TPH PWR
GND UI BM
Motor
TPH Data
GAP LSS
Logic
Translator
Stepper
Motor
Driver IC
Flash
SDRAM

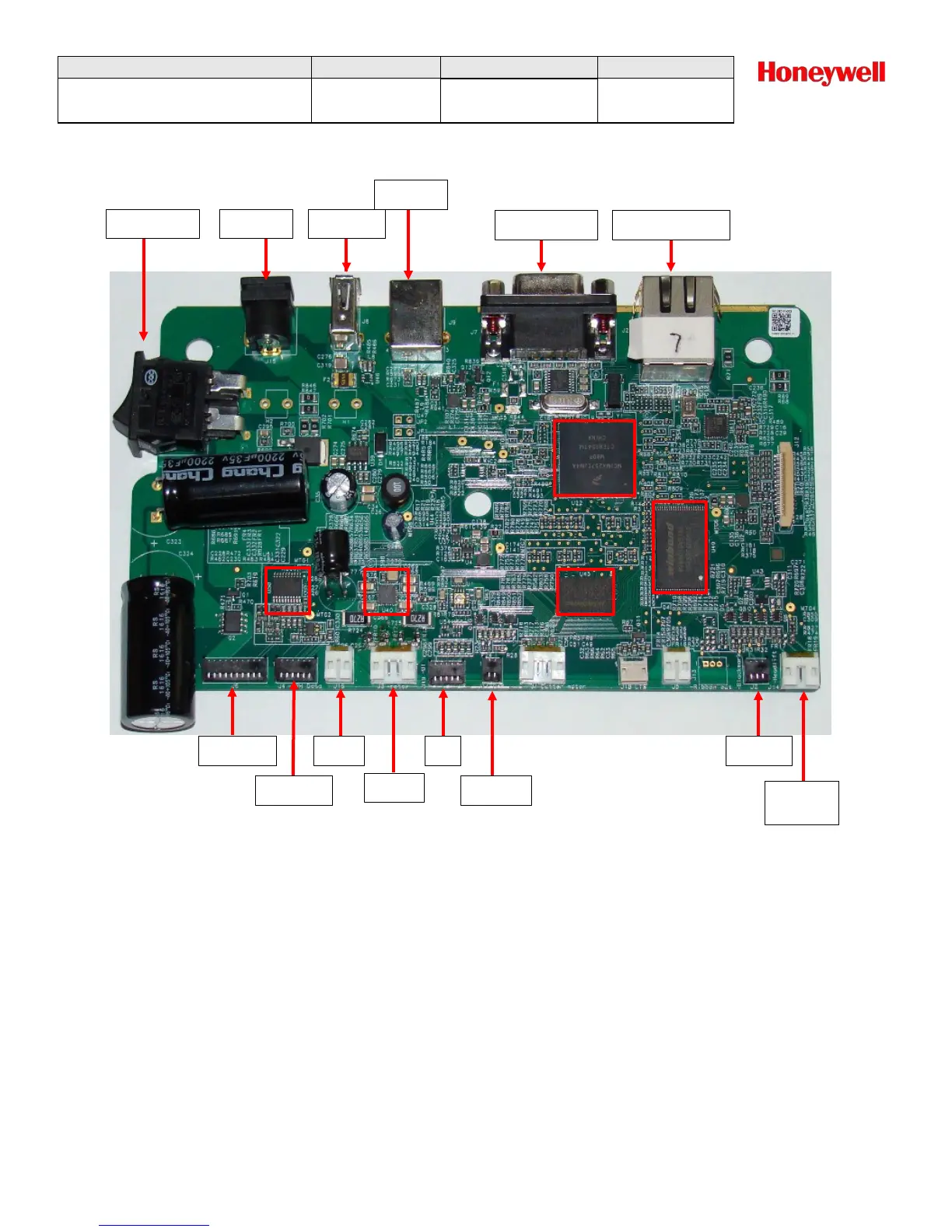

MLB Layout
USB Dev
USB Host
LSS
Headlift
Sensor
TITLE
Model
DOCUMENT NO.
PAGE
PC42d Service Repair Manual PC42d
L3-GLBL-RPR-4260
(Rev A)
Page 14 of 25

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
