Honeywell PC42T User Manual

Chapter 3 — Troubleshoot and Maintain the Printer
34 PC42t Desktop Printer User Guide

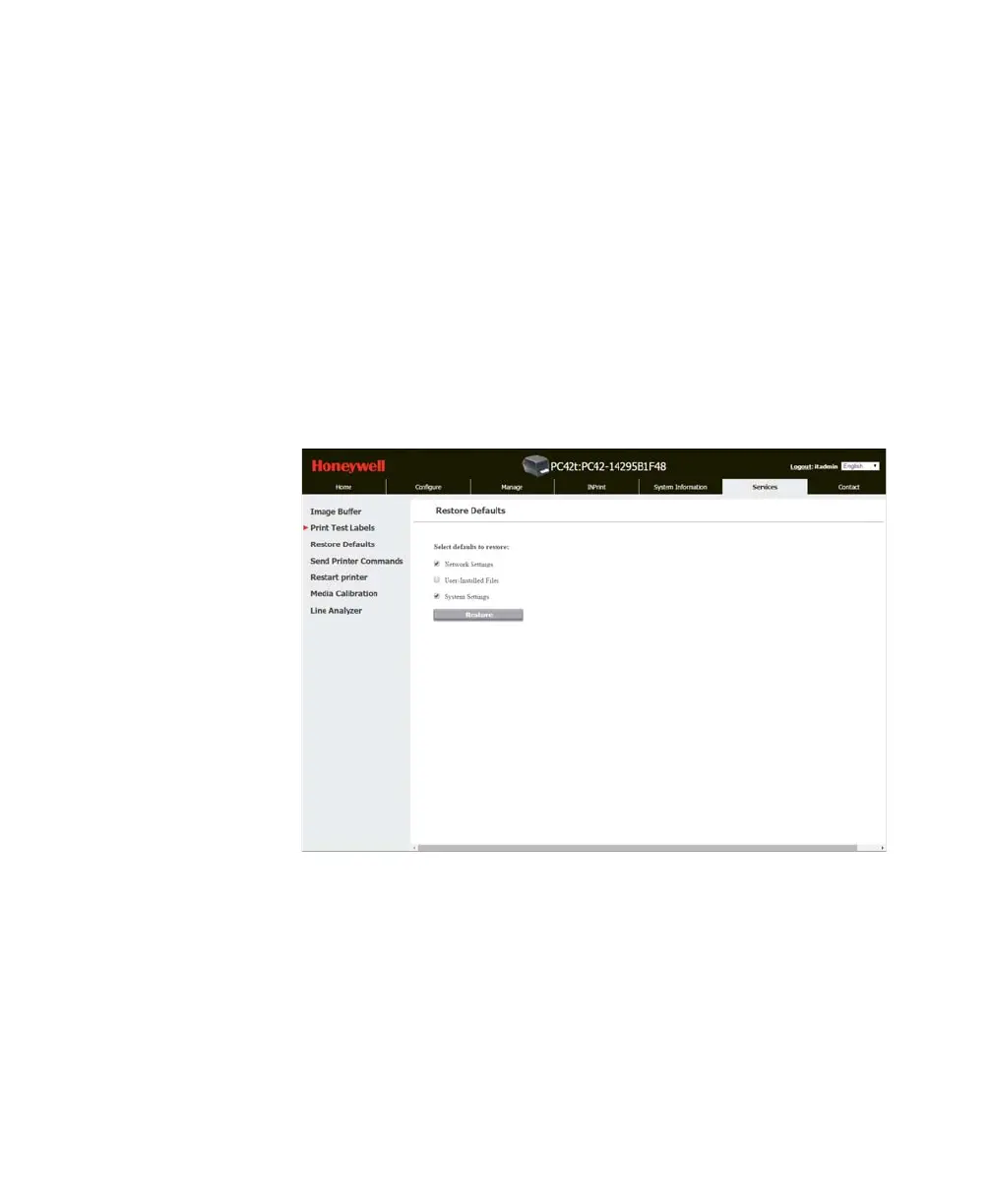

Restore Default Settings from the Printer Web Page
If the printer is connected to an Ethernet network, you can restore
default settings from the printer web page.
1 On your desktop PC, start a web browser.
2 In the address field, type the printer IP address and then press Enter.
The printer web page appears.
3 Click Login in the upper right corner of the screen. The Login page
appears.
4 Type your Username and Password in the entry fields and then click
Login. Use the default username of
itadmin and the default
password of
pass.
5 Click the Services tab > Restore Defaults.
6 Select the settings you want to restore:
• Check the Network settings check box to restore defaults for all
network connections, such as IP address and network name.
• Check the User-Installed Files check box to erase all files you
uploaded to the printer memory.
• Check the System Settings check box to restore defaults for
system settings, such as media width.

Honeywell PC42T Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104.1 mm
Certification	UL, cUL, cULus, CE, FCC, D Mark CCC, KCC, RCM
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, EAN13, EAN8, MaxiCode, QR Code
Display	LED
Product color	Black
Ethernet LAN	Yes
Optional connectivity	Ethernet, Parallel, Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ribbon width	109.2 mm
Core diameter	25.4 mm
Ribbon length	300 m
Maximum label width	110 mm
Maximum media length	9.6 mm
Maximum roll diameter	127 mm
Supported paper width	25.4 - 110 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2.5 A
AC adapter output voltage	24 V
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	297 mm
Width	226 mm
Height	177 mm
Weight	2500 g
