Honeywell PC42T User Manual

Appendix C — Print Labels with INPrint
PC42t Desktop Printer User Guide 59
4 Type your Username and Password and then click Login. The
default value for Username is
itadmin and the default value for
Password is
pass.
5 Click the INPrint tab.
6 Select the web form you want to print:
• If you created the web form yourself, click Customer
Downloaded and then select the web form from the list.
• If you want to use one of the Resident web forms, click Resident
and then select the web form from the list.
7 Type information in the web form as needed.
8 (Optional) To preview the label on the screen, click Preview.

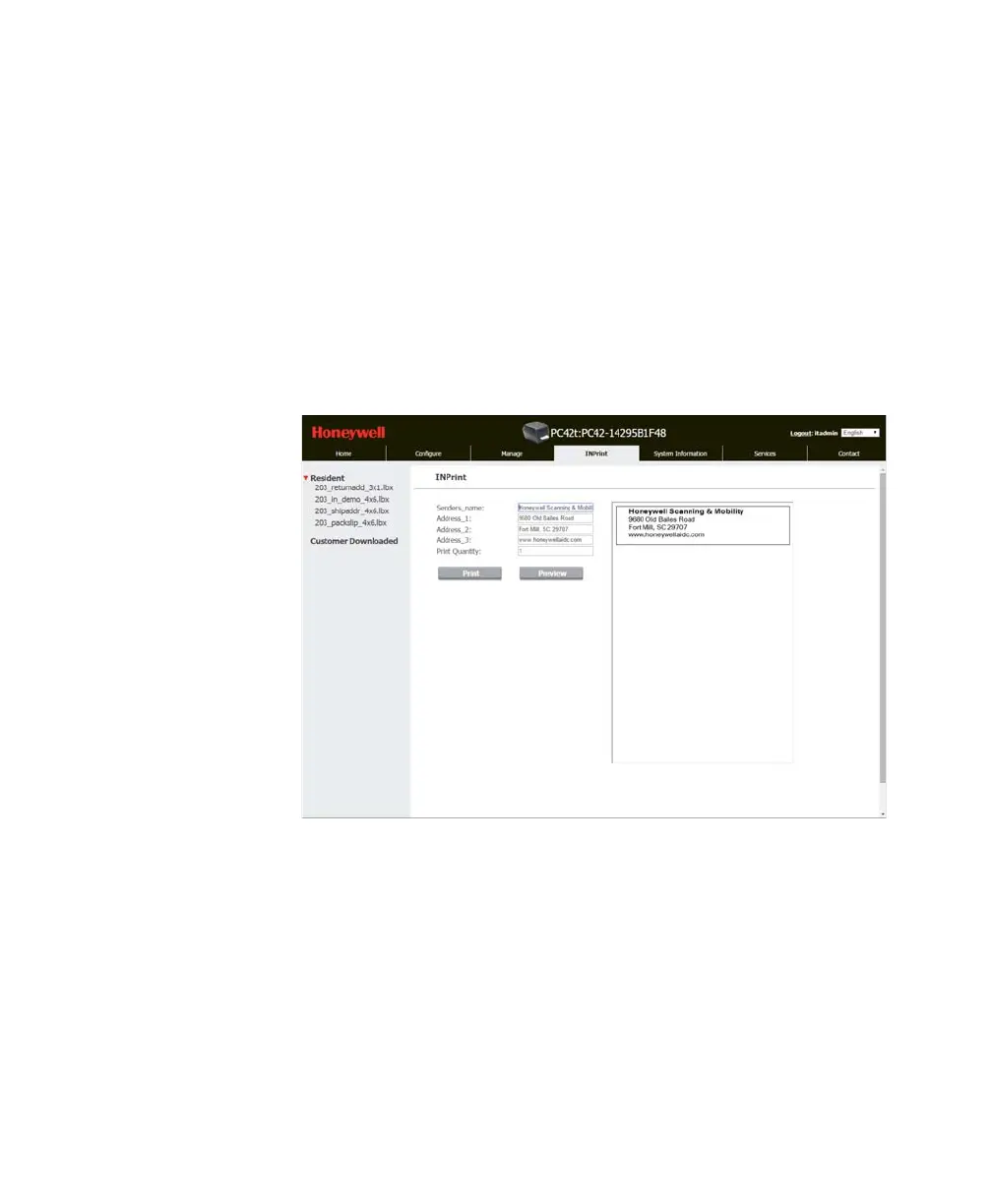

An Example of a Resident Return Address Label
9 To print the label, click Print.

Honeywell PC42T Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104.1 mm
Certification	UL, cUL, cULus, CE, FCC, D Mark CCC, KCC, RCM
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, EAN13, EAN8, MaxiCode, QR Code
Display	LED
Product color	Black
Ethernet LAN	Yes
Optional connectivity	Ethernet, Parallel, Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ribbon width	109.2 mm
Core diameter	25.4 mm
Ribbon length	300 m
Maximum label width	110 mm
Maximum media length	9.6 mm
Maximum roll diameter	127 mm
Supported paper width	25.4 - 110 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2.5 A
AC adapter output voltage	24 V
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	297 mm
Width	226 mm
Height	177 mm
Weight	2500 g
