PD45S User Guide 15

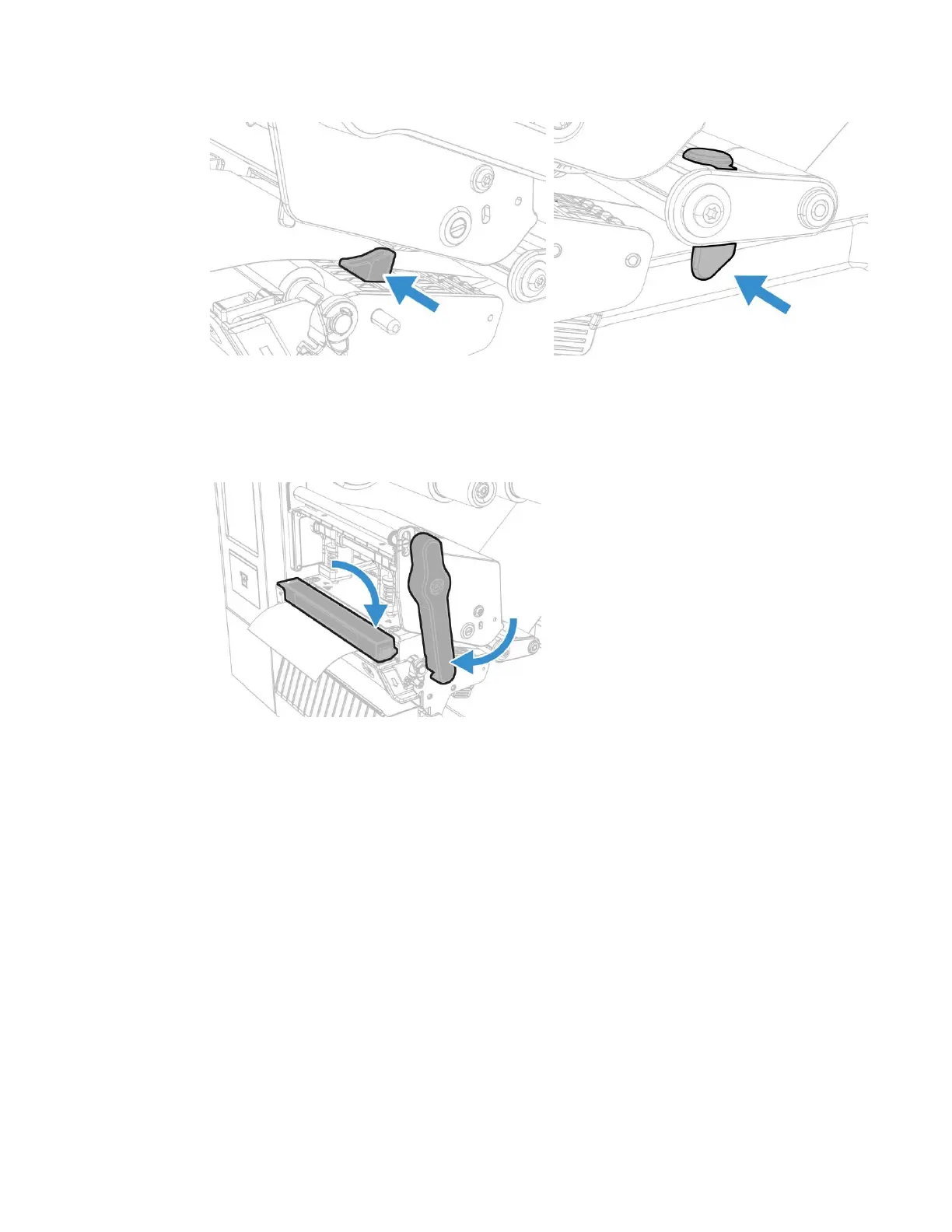

7. Adjust the media and dancer guides.
Note: There is a media guide that is located near the printhead. It is recommended to adjust
the media guide all the way to the right in order to insert the media. If not, it can be
difficult to load the media.
8. Turn the printhead lift lever clockwise to close the printhead and lower the
front arm and click into place.
9. Press the Print button to advance the media.
10. Close the media cover.

Honeywell PD45 Specifications

General

Print Technology	Direct Thermal / Thermal Transfer
Ribbon Core	1 inch (25.4 mm)
Print Resolution	203 dpi
Max Print Width	4.25 inches (108 mm)
Max Print Speed	8 ips (203 mm/s)
Connectivity	USB 2.0, RS-232, Ethernet
Media Handling	Label gap, label black mark
Media Thickness	0.0025 inch to 0.01 inch (0.0635 mm to 0.254 mm)
Ribbon Width	1 inch to 4.33 inches (25.4 mm to 110 mm)
Ribbon Length	984 feet (300 meters)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Power Requirements	100-240 VAC, 50/60 Hz
Media Width	25.4 mm (1 in) to 118 mm (4.65 in)
