PD45S User Guide 21

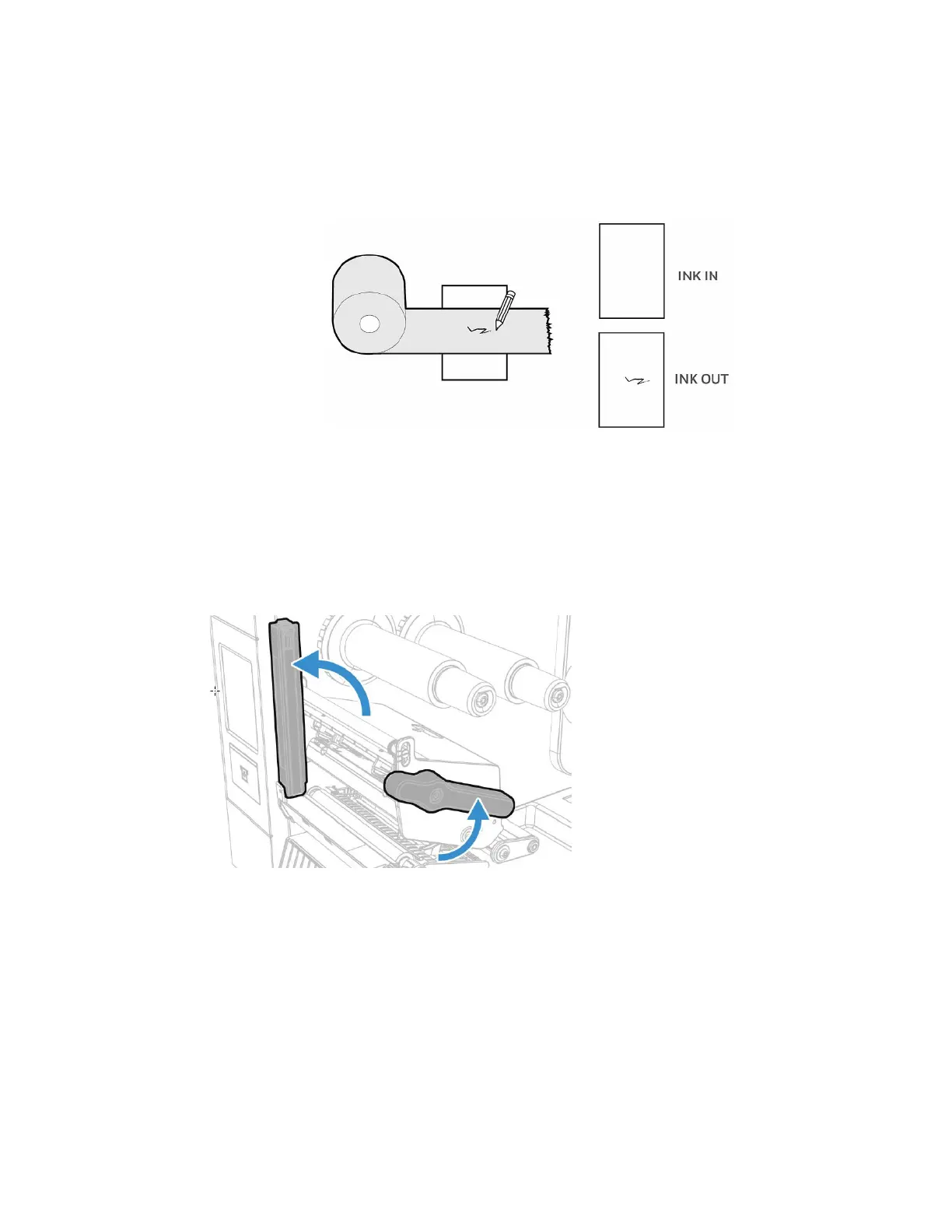

The printer supports thermal transfer ribbon rolls with the ink-coated side facing
either inward or outward. To determine which type of ribbon you have, place the
ribbon on a piece of paper as shown, and use a pen or other sharp object to scratch
the ribbon. If you see a mark on the paper, your ribbon is wound ink out.
Load Ribbon
1. Open the media cover.
2. Turn the printhead lift lever counterclockwise to raise the printhead and lift the
front arm.

Honeywell PD45 Specifications

General

Print Technology	Direct Thermal / Thermal Transfer
Ribbon Core	1 inch (25.4 mm)
Print Resolution	203 dpi
Max Print Width	4.25 inches (108 mm)
Max Print Speed	8 ips (203 mm/s)
Connectivity	USB 2.0, RS-232, Ethernet
Media Handling	Label gap, label black mark
Media Thickness	0.0025 inch to 0.01 inch (0.0635 mm to 0.254 mm)
Ribbon Width	1 inch to 4.33 inches (25.4 mm to 110 mm)
Ribbon Length	984 feet (300 meters)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Power Requirements	100-240 VAC, 50/60 Hz
Media Width	25.4 mm (1 in) to 118 mm (4.65 in)
