22 PD45S User Guide

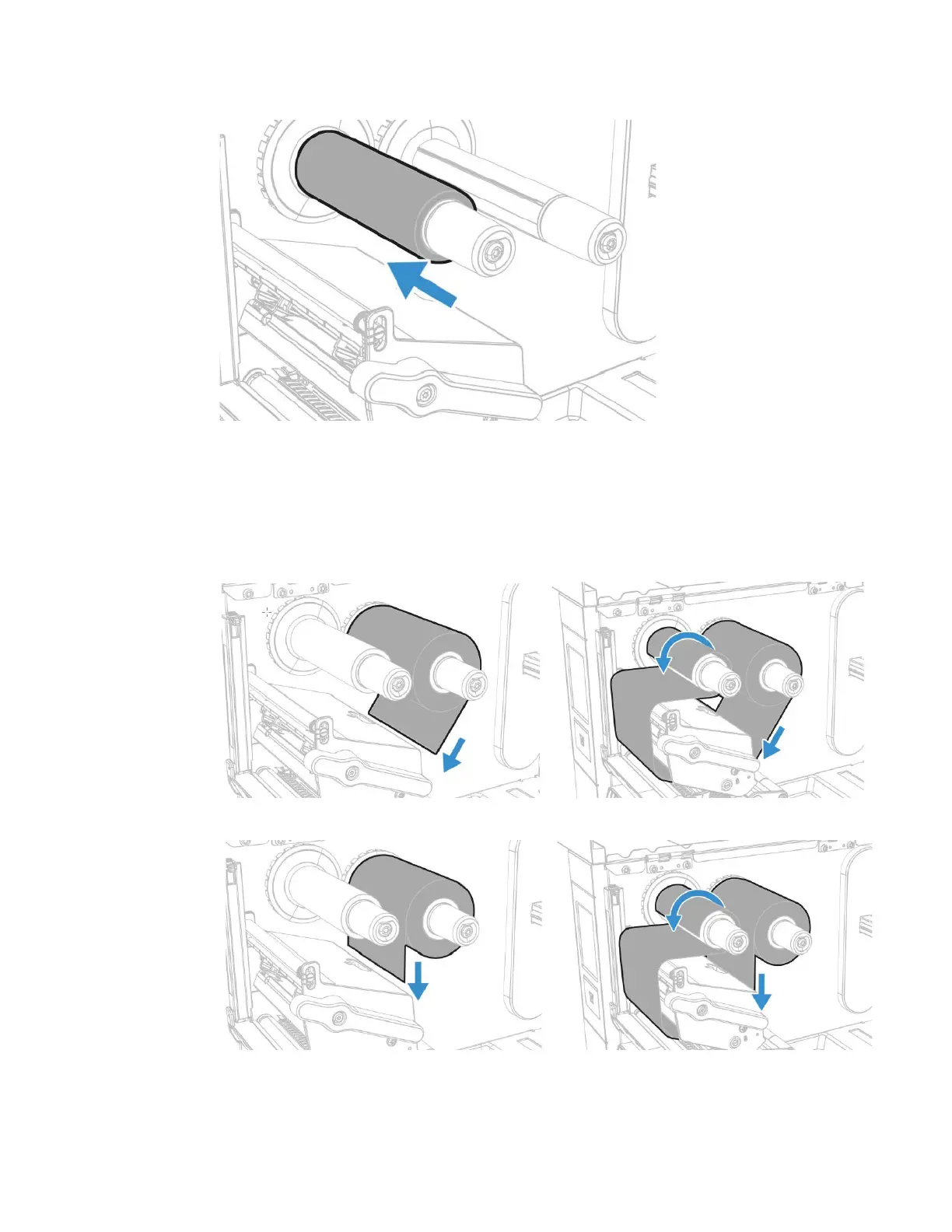

3. Slide the empty core onto the ribbon rewind hub.
Note: For ribbon that has the ink wound out, place the ribbon on the ribbon rewind hub with
the ribbon wound clockwise. For ribbon that has the ink wound in, place the ribbon on
the ribbon rewind hub with the ribbon wound counterclockwise.
4. Route the ribbon through the print mechanism and pull out approximately 8
inches (20cm) of ribbon leader.
Ink Out
Ink In
5. Turn the ribbon take-up hub counterclockwise until the ribbon becomes tight
and runs wrinkle-free through the print mechanism.
6. Close the media cover.
