50 | Performance Series DVR User Guide
www.honeywellvideo.com
3. Configure the following settings:
• Encoding Parameters: Set the encoding parameters to be Normal or Event.
• Stream Type: Set the stream type to be Video or Video & Audio.
• Resolution: Set recording resolution at 4CIF, 2CIF, CIF, or QCIF.
• Bit Rate Type: Set the bit rate type to be Variable or Constant.
• Video Quality: Set the recording video quality (6 levels configurable).
• Frame Rate: Set the frame rate of recording.
• Max Bit Rate: Select or customize the maximum bit rate for recording.
4. Next to More Settings, click Set to configure more recording settings (see Figure 4-2).

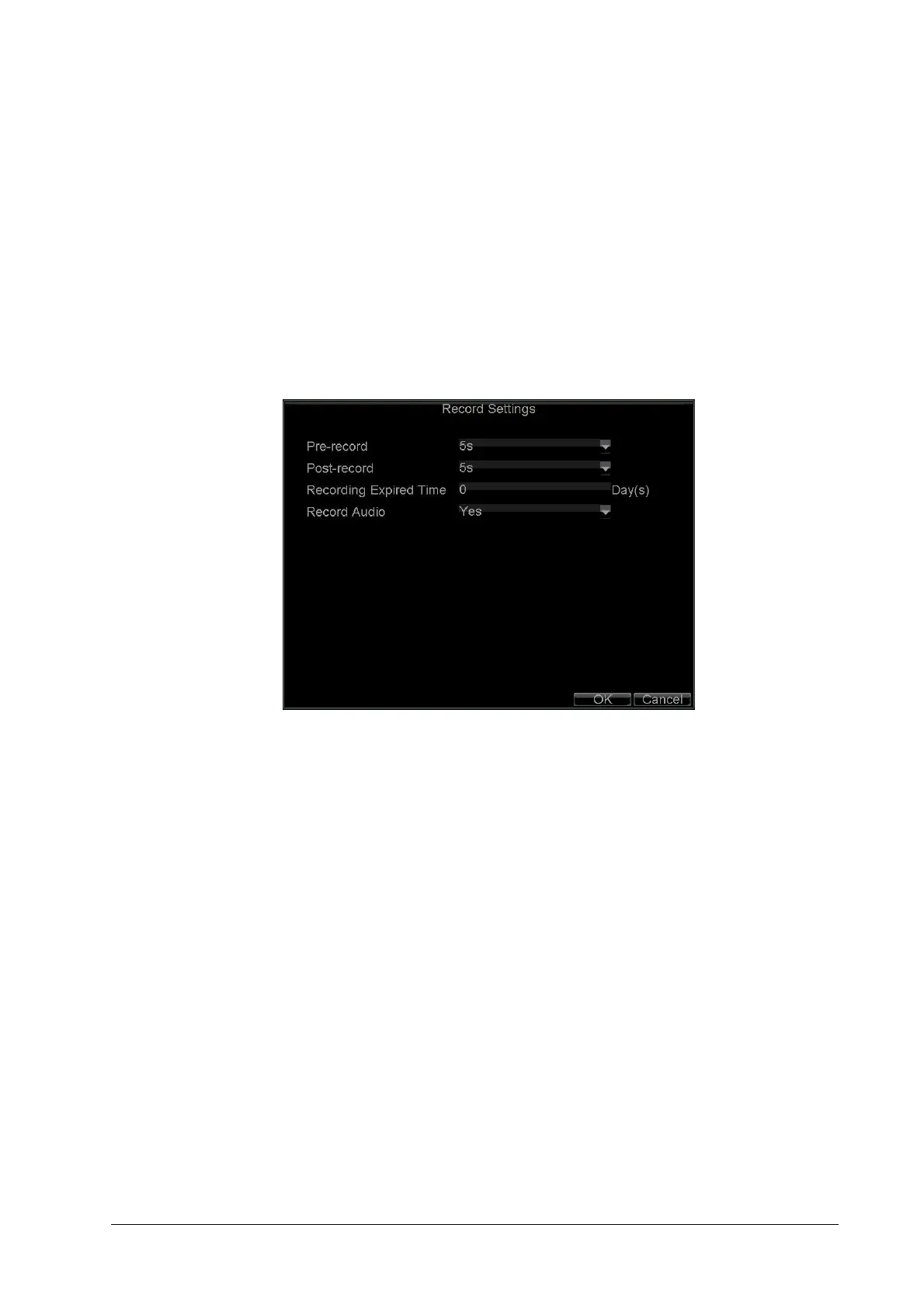

Figure 4-2 More Record Settings
• Pre-Record: Set the time in seconds to pre-record before the actual recording
begins.
• Post-Record: Set the time in seconds to post-record after the actual recording has
ended.
• Recording Expired Time: Set the expiration time in days for recorded video.
Recorded files after expiration time will be deleted. The actual period for record files
storage is determined by the available HDD space.
• Record Audio: Enable or disable audio recording of the selected camera.
5. Press the 3DEF/F2 button on the front panel of the HRG DVR to select the Advanced tab.
The Advanced Record Settings menu is displayed (see Figure 4-3).
