800-12005V1 - A - 08/2012

Camera Management 10

This chapter covers OSD settings, image settings, and privacy mask settings.

OSD Settings

Use the Camera Management menu to configure on-screen display (OSD) settings. The OSD is

shown in each display during Live View mode and includes the time and date as well as the

camera name.

To configure OSD settings:

1. Click Menu

 Settings  Camera to enter the Camera Settings menu (see Figure 10-1).

2. Select the channel to set up the OSD settings in the Camera drop-down list and then click

Set.

3. Configure the desired OSD settings (see Figure 10-1).

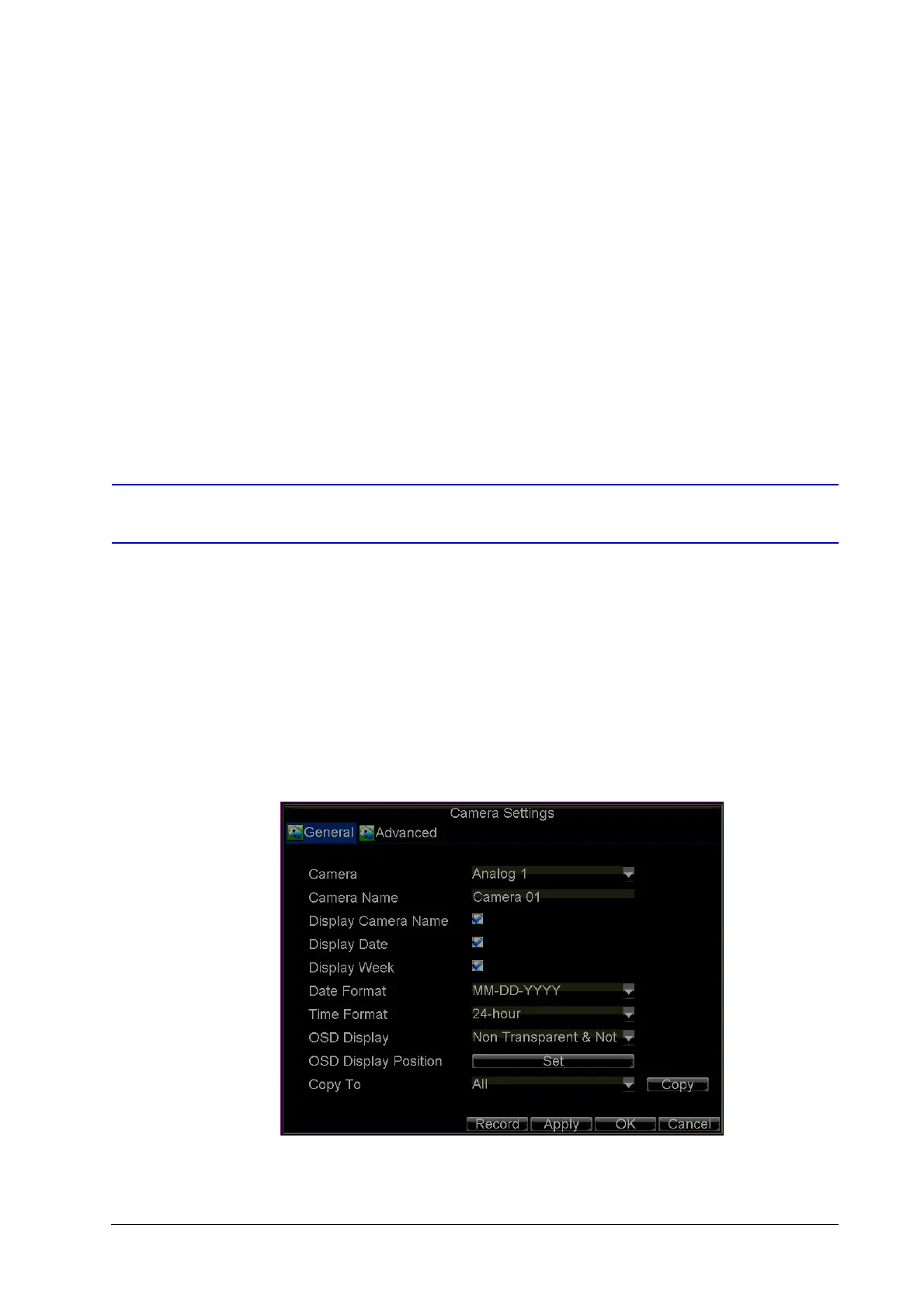

Figure 10-1 Camera Settings Menu

4. Click Set to modify the OSD display position, including the camera name position and the

date/time display position.
