USB The USB cable and hardware peripherals allow the ScanPal 5100 terminal to communicate with a
workstation through a USB port or to a network through a USB hub. The ScanPal 5100 terminal
supports full-speed USB communication (USB 1.1); maximum data transfer rate is 12 Mbps. The
ScanPal 5100 terminal defaults to USB communication out of the box.
Hardware Requirements for Setup
• ScanPal 5100 communication peripheral
• ScanPal 5100 power cable
• USB Cable (for USB communication)
Software Requirements for Communication
• ActiveSync (v4.5 or higher) or Windows Mobile Device Center installed and configured on the host
workstation (PC), see Setting Up the Host Workstation on page 7-3.
• Windows 98 Second Edition, Windows ME, Windows 2000, WindowsNT (4.0 SP6 or higher), Windows
XP, Windows Vista, and Windows 7 operating systems.
Setting Up the Host Workstation
To synchronize data between the terminal and the workstation, ActiveSync (v4.5 or higher) or Windows
Mobile Device Center must be configured for same communication type on both the host workstation and
the ScanPal 5100 terminal.
ActiveSync
Verify that ActiveSync is configured to use the appropriate communication type.
1. In the ActiveSync window on your workstation, select File -> Connection Settings.
2. Check the box next to “Allow USB connections”.
Setting Up the ScanPal 5100 Terminal
The ScanPal 5100 terminal defaults to USB communication out of the box. To verify and/or change the
default setting, select Start -> Settings -> Control Panel -> PC Connection.

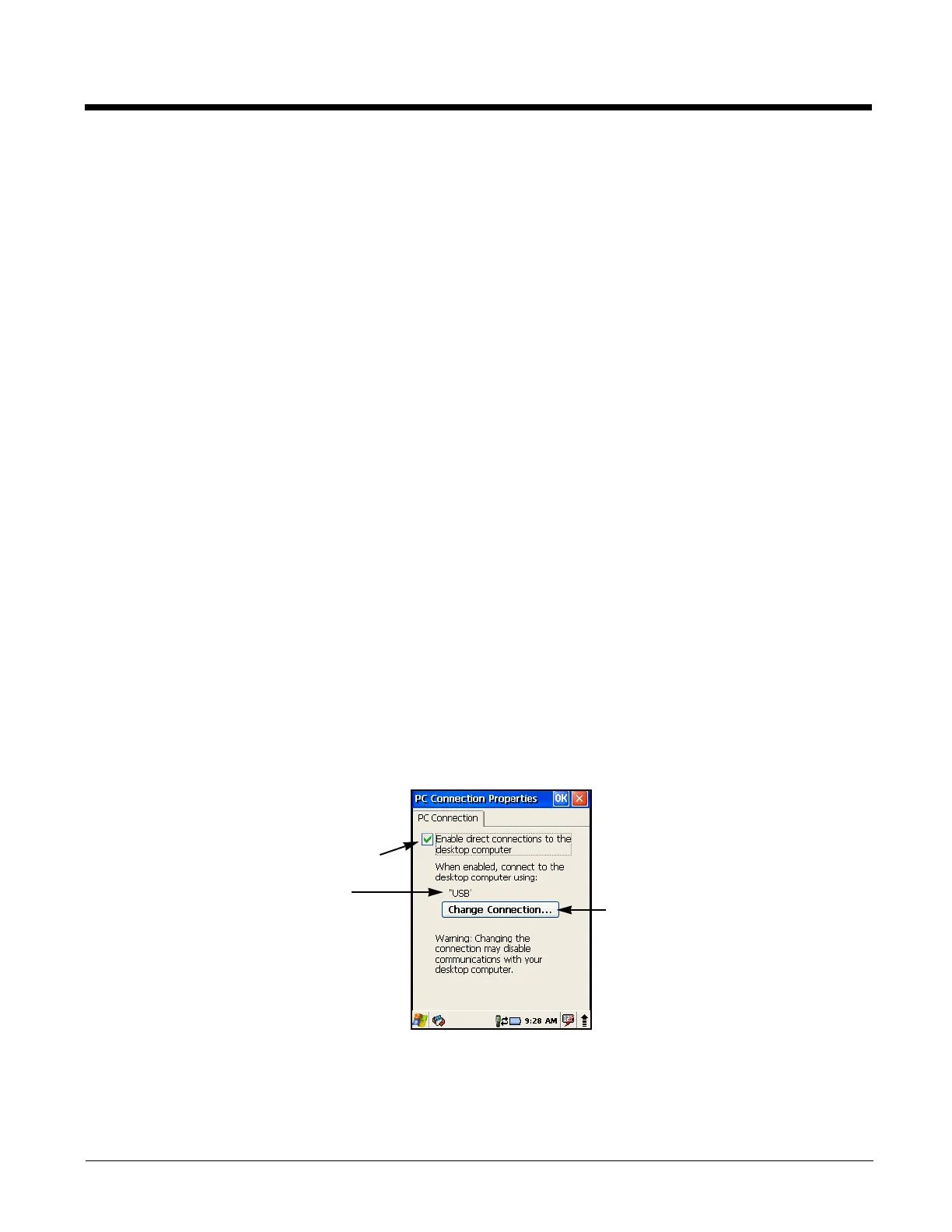

Displays the current connection setting
Select to change the connection settings
Must be checked to connect to a workstation

Honeywell ScanPal 5100 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.128 GB
Internal memory	0.064 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	PXA 300
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows CE 5.0
Wi-Fi standards	802.11b, 802.11g
Bluetooth version	2.0+EDR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3300 mAh
Battery life (max)	8 h
Product color	Black, Grey
International Protection (IP) code	IP54
Keypad number of keys	28

Weight and Dimensions

Depth	57 mm
Width	157 mm
Height	41 mm
Weight	231 g
