12.6 Optional Parameters Page
Accessing the Optional Parameters page
Click on the Optional Parameters tab in the main menu on the left hand side to monitor the parameters.
No configuration can be done from this page. For the options that are not enabled or bought, nothing is
displayed in the respective tables
Optional Parameters Tables

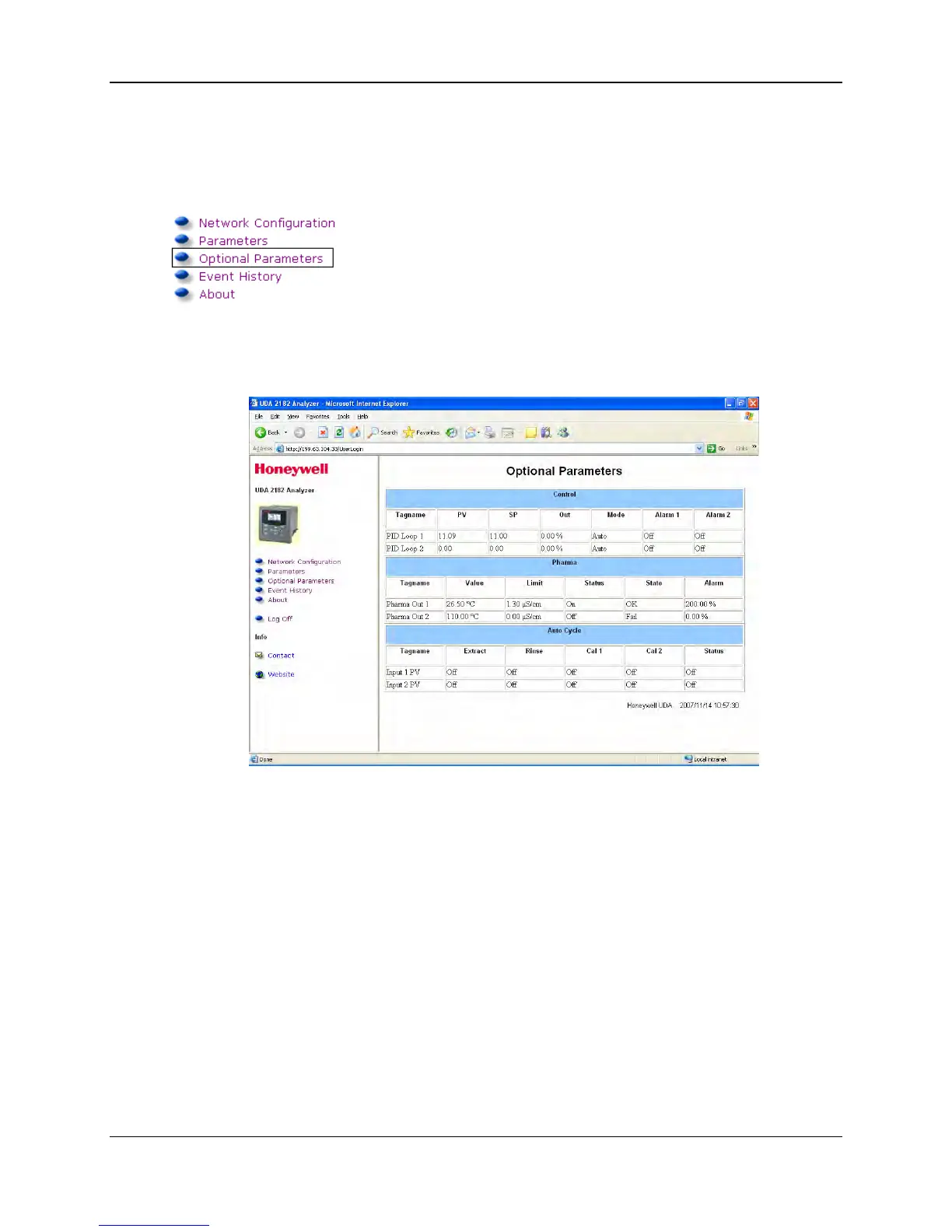

Figure 12-9 Monitor Optional Parameters Page
Optional Parameter Tables Details
Control Table Displays the PV, SP, Output, Mode and Alarm Status for the PID loops
currently present on the UDA. The entries will be blank for the options that are
either not enabled or bought.
Pharma Table Displays the Value, Limit, Status, State and the Alarm Status for the Pharma
Outputs that are currently enabled on the UDA. The entries will be blank for the
options that are either not enabled or bought.
Auto Cycle Table Displays the Status of the Auto Cycle 1 and 2. “ON” is displayed for the state or
states which is currently active, otherwise “OFF” is displayed. Auto Cycle
process can be in either Extract, Rinse, Cal1, Cal2 states. The status of the cycle
is also displayed.
The parameters page gets refreshed at the rate of 10 seconds. A slight flicker can be observed while the page
gets refreshed.
Tagname, Device date and Time are displayed on the right bottom corner of the page.
