Honeywell XENON 1900 User Manual

7 - 21

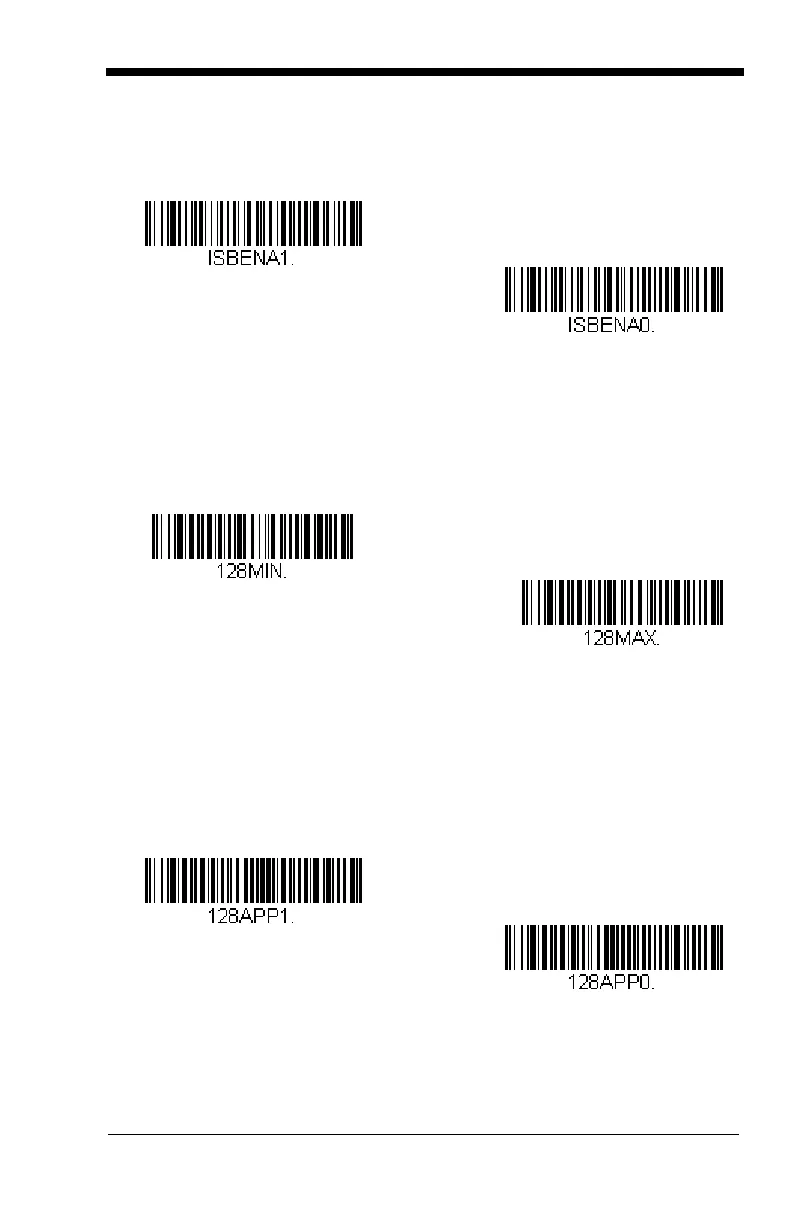

that supports concatenation of neighboring symbols, and 4) the standard
layout for bar codes on a blood product label. Use the bar codes below to
turn concatenation on or off.
Default =Off.
Code 128 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum
Default = 80.
Code 128 Append
This function allows the scanner to append the data from several Code 128
bar codes together before transmitting them to the host computer. When
the scanner encounters a Code 128 bar code with the append trigger char-
acter(s), it buffers Code 128 bar codes until it reads a Code 128 bar code
that does not have the append trigger. The data is then transmitted in the
order in which the bar codes were read (FIFO).
Default = On.
* Off
On
Minimum Message Length
Maximum Message Length
Off
* On

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
