Honeywell XENON 1900 User Manual

7 - 38
When Check Character is set to Validate Type 10/11, but Don’t Transmit,
the unit will only read MSI bar codes printed with the specified type check
character(s), but will not transmit the check character(s) with the scanned
data.
MSI Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 4-48. Minimum Default = 4, Maximum
Default = 48.

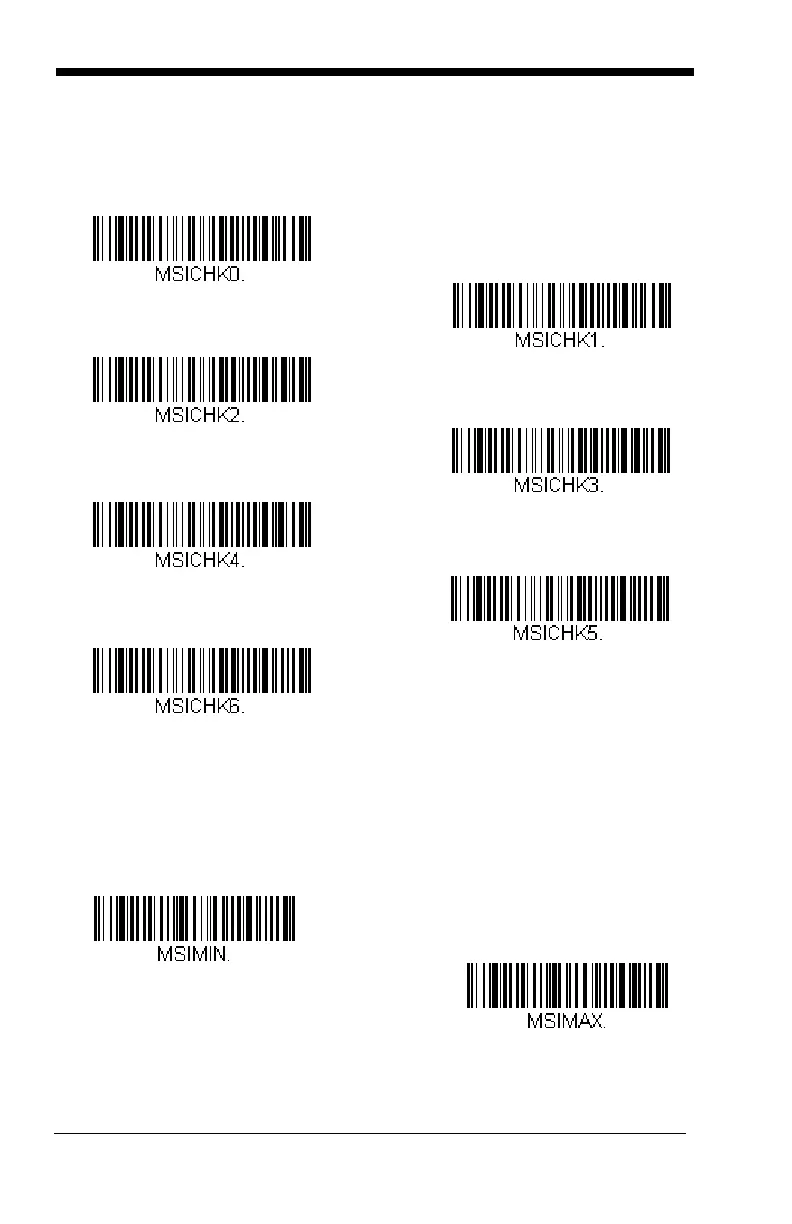

Validate Type 10 and Transmit
* Validate Type 10, but Don’t
Transmit
Validate 2 Type 10 Characters,
but Don’t Transmit
Validate 2 Type 10 Characters
and Transmit
Validate Type 10 then Type 11
Character, but Don’t Transmit
Validate Type 10 then
Type 11 Character and Transmit
Disable MSI Check Characters
Minimum Message Length
Maximum Message Length

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
