8 - 18
For example, use 2500 to specify a resolution of 2.5. Set to zero when
using the A and B modifiers (see A - Output Image Width and B - Output
Image Height on page 8-16).
S - Bar Code Aspect Ratio
All dimensions used in IMGBOX are measured as multiples of the minimum
element size of the bar code. The bar code aspect ratio allows you to set
the ratio of the bar code height to the narrow element width. In the exam-
ple, the narrow element width is .010 inches and the bar code height is
0.400 inches, resulting in a value of S = 0.4/0.01 = 40.
W - Width of Signature Capture Area
The width of the signature capture area must be measured in inches
divided by .01. In the example, the width of the area to be captured is 2.4
inches, resulting in a value of W = 2.4/0.01 = 240. (A value of 245 was
used in the example to accommodate a slightly wider image area.)
X - Horizontal Bar Code Offset
The horizontal bar code offset allows you to offset the horizontal center of
the signature capture area. Positive values move the horizontal center to
the right and negative values to the left. Measurements are in multiples of
the minimum bar width.

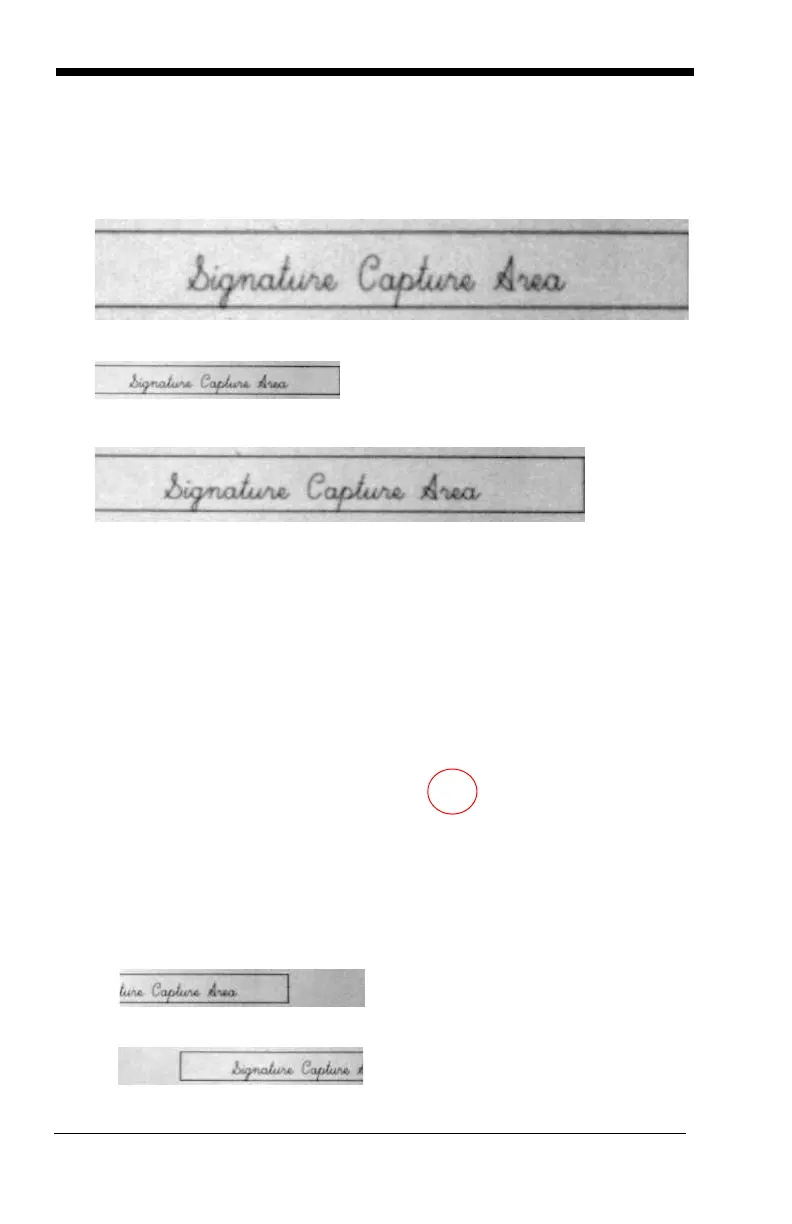

Example of Resolution set to 1000R:
Example of Resolution set to 0R:
Example of Resolution set to 2000R:
Example: IMGBOX245w37h55y.
Example of Horizontal Offset set to -75X:
Example of Horizontal Offset set to 75X:
