In the next version the "bout marker"will be renamed
"Hydraulic block".
Continue to page "Conguration 2,
3 and 4"
Return to work page

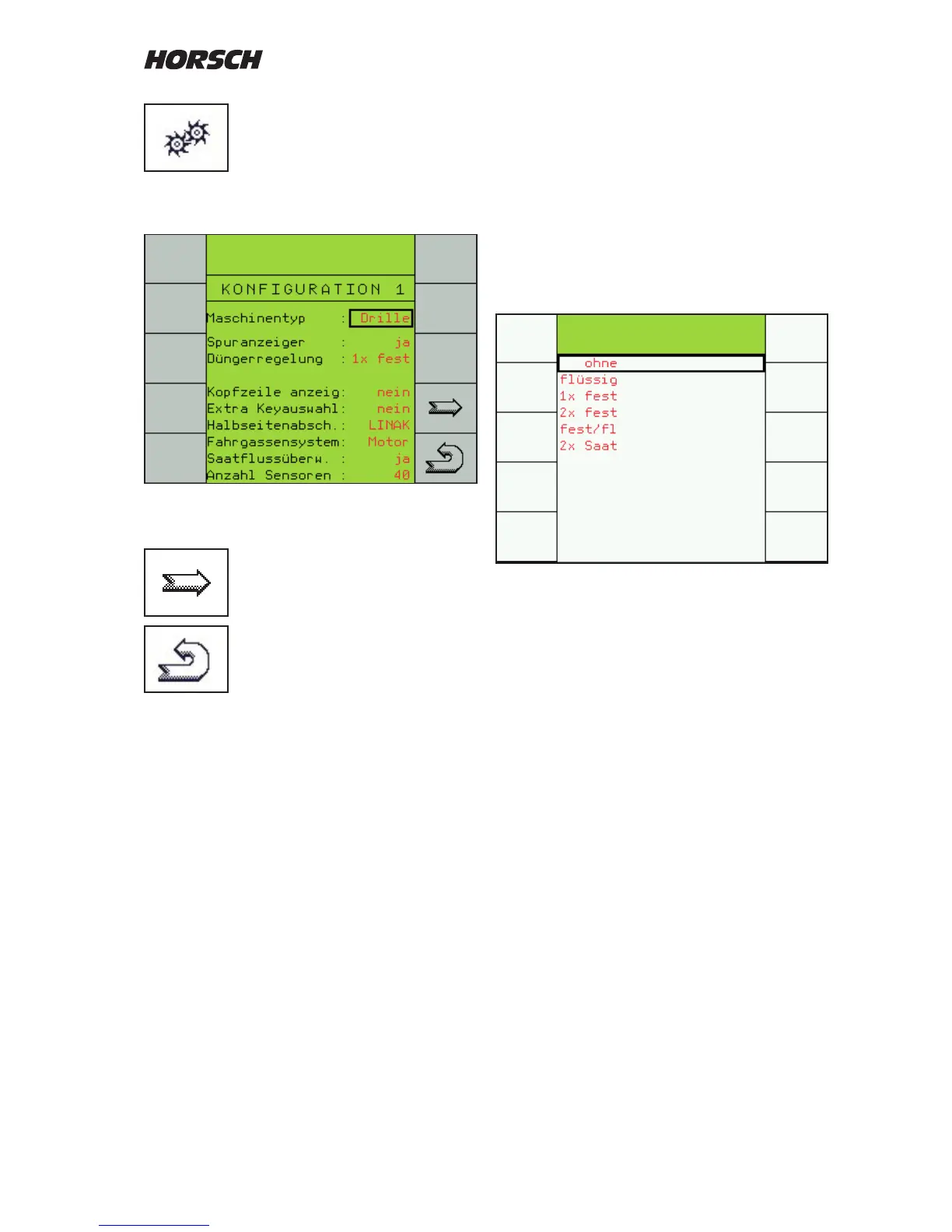

Machine type
Here you can select from Drille and Maistro. The
program has been prepared for both machines.
Switching over is only required when towing a
Maistro with ME-control.
Bout marker control
The "Boutmarker" function activates the entire
hydraulic control. It must always be switched on
as soon as the hydraulic functions like lifting,
wings or boutmarkers are to be controlled via
the display.
The bout marker working mode can be selected
in the monitor.
The boutmarker function is hydraulically always
linked with the "Lift machine" function
If the "Post mode" or "Wet hole mode" functions
are active, the hydraulic control must not be
switched o, as otherwise the computer will
ignore the change in work signal and thus will
no longer switch the machine on or o.
Fertiliser control
If the machine is equipped with several hoppers
or with liquid fertiliser facility, the system must
be selected here.
Selection menu for fertiliser control
Depending on the equipment of the machine you
must choose the number of hoppers and the type
of the fertiliser to open the corresponding menus
and input possibilities in the display:
1. One seed hopper - no additional hopper for
fertiliser.
2. One seed hopper and one additional hopper
for liquid fertiliser installed.
3. One seed hopper and one additional hopper
for solid fertiliser installed.
4. One seed hopper and two additional hoppers
for solid fertiliser installed.
5. One seed hopper, one additional hopper for
liquid fertiliser and one additional hopper for
solid fertiliser installed.
6. One seed hopper and one additional hopper
for solid fertiliser installed. Both hoppers
are only used for seed. In the machine
conguration the tank sizes are entered in
relation to one another, so that both tanks will
be empty at the same time. Both metering
units must be calibrated.
4
3
5
2
1
6
