10.STOVE DESCRIPTION (vertigo 8.0)

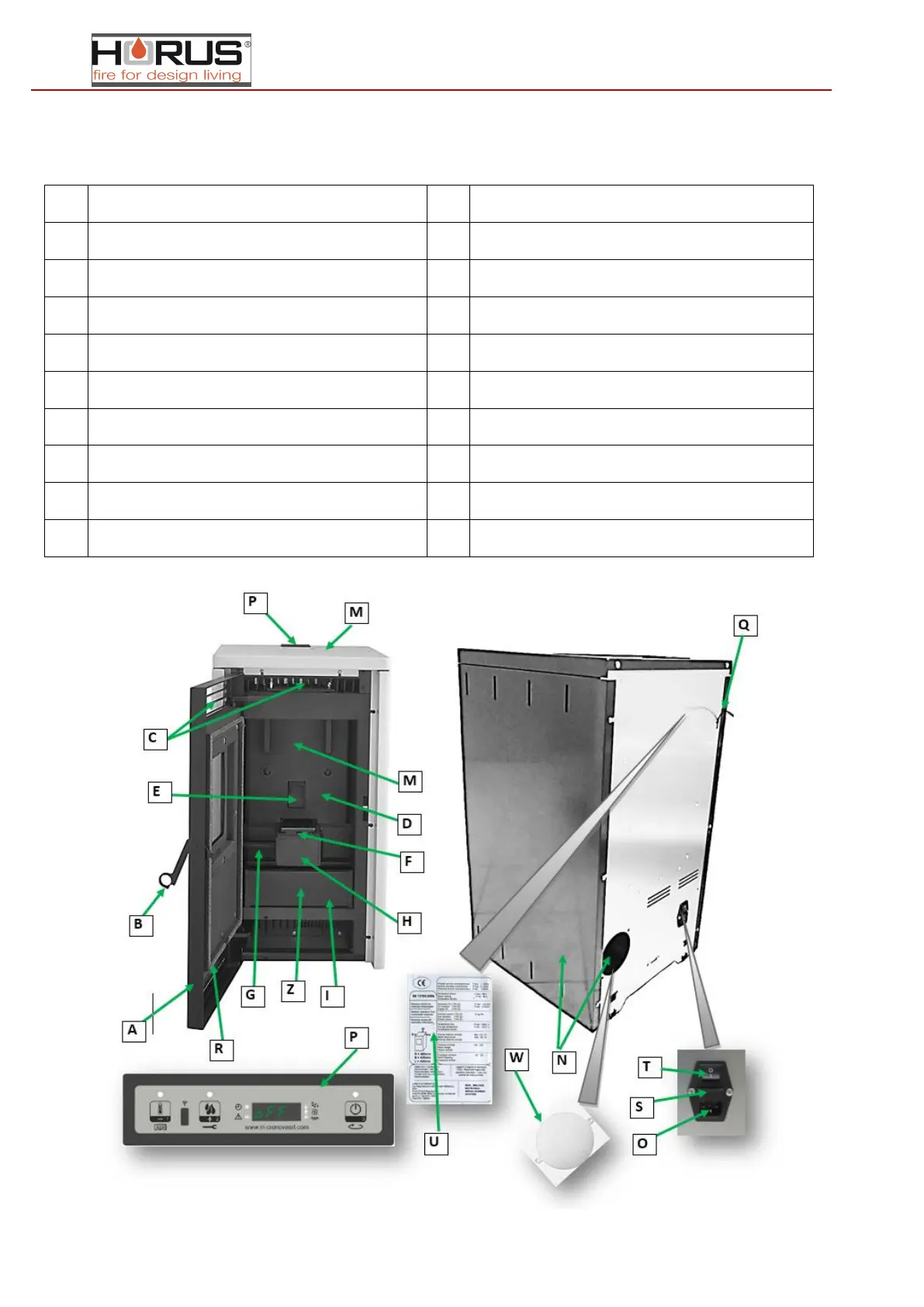

- The pellet stove was built with materials conceived and designed especially for this purpose. The stove main parts and controls
are described in figure 1 and in table 1.
TAB. 1
A
Combustion chamber door
M
Pellet tank lid
B
Combustion chamber door handle
N
Fume exhaustion outelt
C
Air louvers
O
Inlet for power supply 220 volts-50hz
D
Combustione chamber\fire box
P
Control panel
E
Pellet outlet channel
Q
Environment probe
F
Brazier\Crucible
R
Door gasket
G
Spark plug
S
Fuse
H
Support brazier
T
Circuit breaker ON-OFF
I
Ash pan
U
Identification label on the back of the stove
L
Flame trap
Z
Inspection cap smoke
Figure 1
