31.OPERATING MODE
The normal operation of an air stove is described below with reference to the functions available to the user.

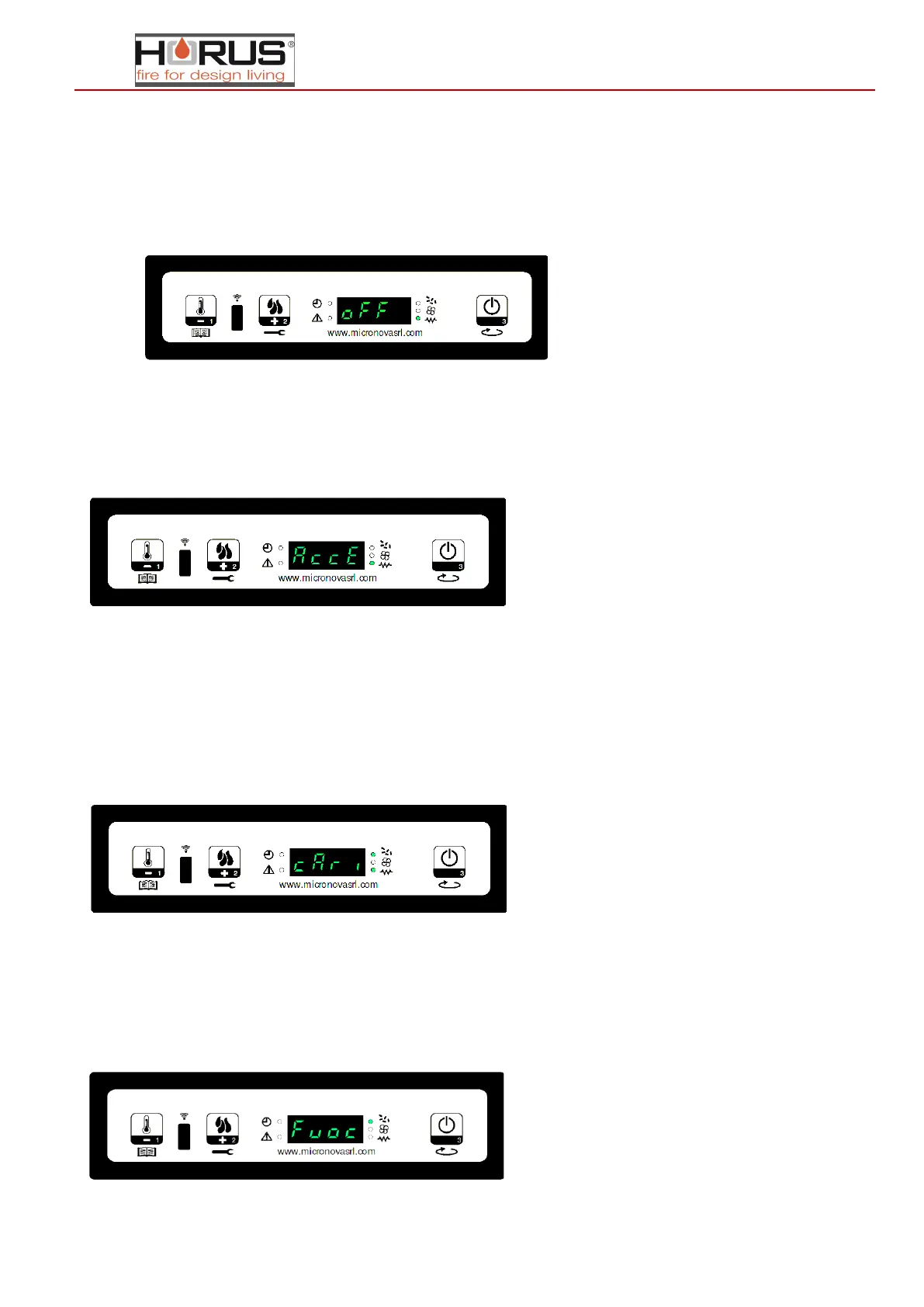

Before turning on the stove, the display appears as shown in the figure.
32.Stove ignition
Press P3 for a few seconds to ignite the stove- When ignited, the display shows "Ignite" and the ON/OFF LED flashes. The stove
is now in the pre-heating phase, the igniters turn on (visible by the igniter LED) as does the smoke exhaust fan.
Any abnormalities during the ignition phase are shown on the display and the stove goes into alarm status.
33.Pellet Loading
After about 1 minute, the pellet loading phase starts. "Load Pellets" scrolls on the screen and the ON/OFF LED flashes. In a first
phase, the screw feeder loads the pellets in the brazier (screw feeder LED on) and the igniter is always on (igniter LED on). In
the second phase, once the preset time has passed, the screw feeder turns off (screw feeder LED off) while the smoke speed
and the igniter remain in the previous status. If ignition does not occur after this phase, the screw feeder turns back on the
smoke speed is controlled by the program and the igniter remains on.
34.Fire present
After the smoke temperature has reached and exceeded the set value, the system goes into ignition mode, showing "Fire
Present" on the display and the ON/OFF LED flashes.
In this phase, the temperature in the combustion chambers is checked to make sure it is stable.
The screw feeder turns on for a defined amount of time (screw feeder LED flashing) and the igniter is off (igniter LED off). Any
anomalies shutdown the stove and the display shows an error status (refer to chapter 9)
