11.TECHNICAL INFORMATION
STOVE MODEL
vertigo 8.0
Min./max. rated power
Kw
2.8 – 7.0
Min./max. consumption
Kg/h
0.6 – 1.7
Pellet tank capacity
Kg
15
Fume exhaustion outlet diameter
mm
80
Voltage/Frequency
V/Hz
230/50
Average power consumption when in use
W
55
Min/Max fume temperature
C°
94 – 182
Min./max. heat output
%
92.5 - 80.0
CO emission at 13% of min./max. O² P.
%
0.030 - 0.006
Dimensions
H x L x P
830x458x497
12.FUEL TYPE AND QUANTITY
Use fuel compliant with A1/A2 secondo ISO 17225-2 (ex UNI EN 14785/2006). Pellets with the following features are recommended:
Type of pellet:
VIRGIN WOOD
Diameter
6\8 mm
Average length
15/20 mm
Moisture
10%
Heating power
Max 4.500 Kcal/Kg
Power/Weight
Max 5,3 Kw/Kg
We strongly recommend to use for our stoves certified fuel (Enplus, DINplus, O-NORM M7135). The use of improper pellet may
compromise the functioning of the stove and bring to the invalidity of the guarantee.

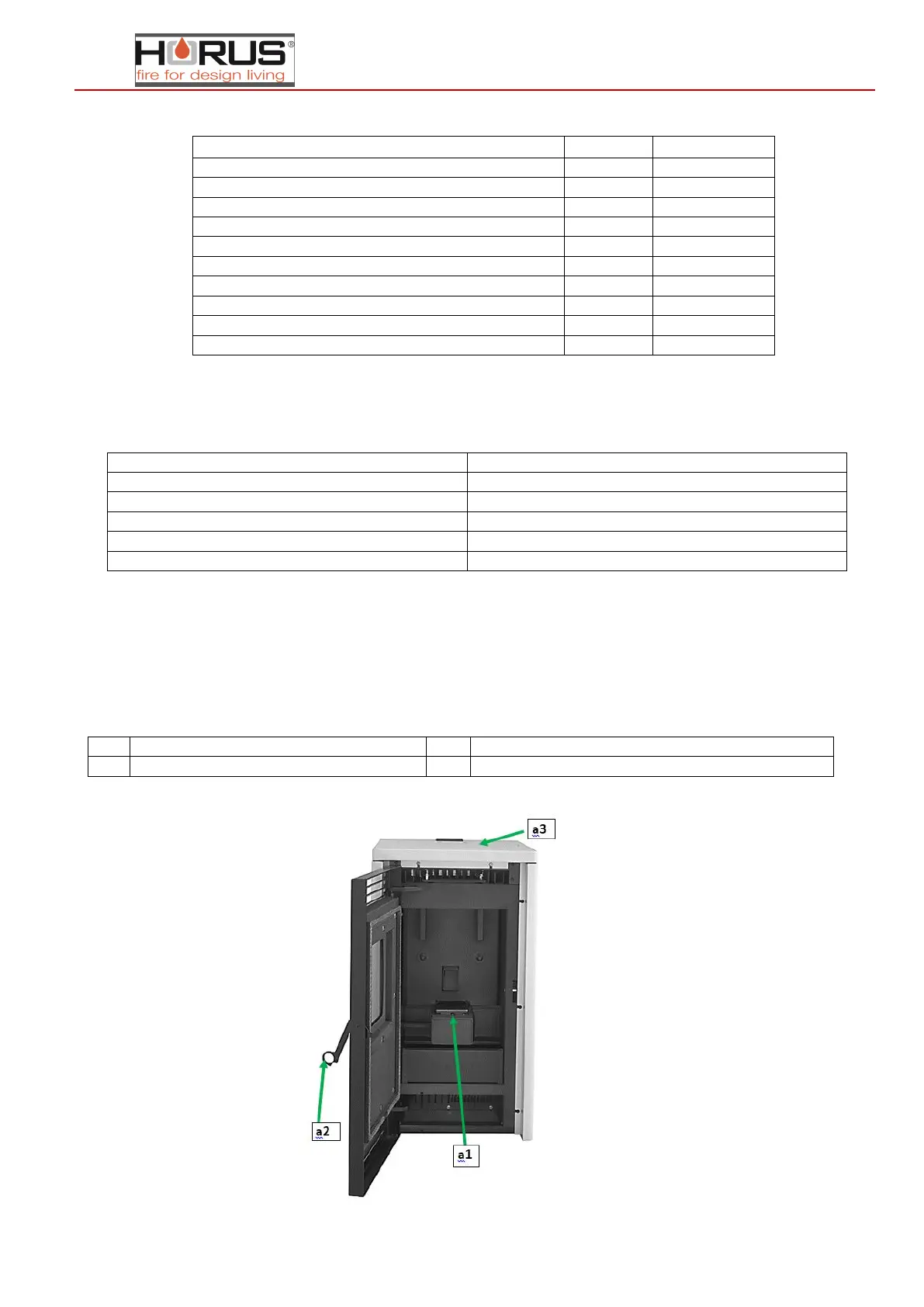

13.VISUAL MATCH OF THE STOVE
The technician must visually and manually match the stove parts portrayed in figure 2 and in table 2 with the product description. He/she
will also check that the parts are compliant with current regulations and haven't been damaged whatsoever. For any doubts regarding
damages to the device please contact FONTANA FORNI SRL
TAB. 2
a1
Brazier/crucible
a2
Combustion chamber door handle
a3
Pellet tank lid
