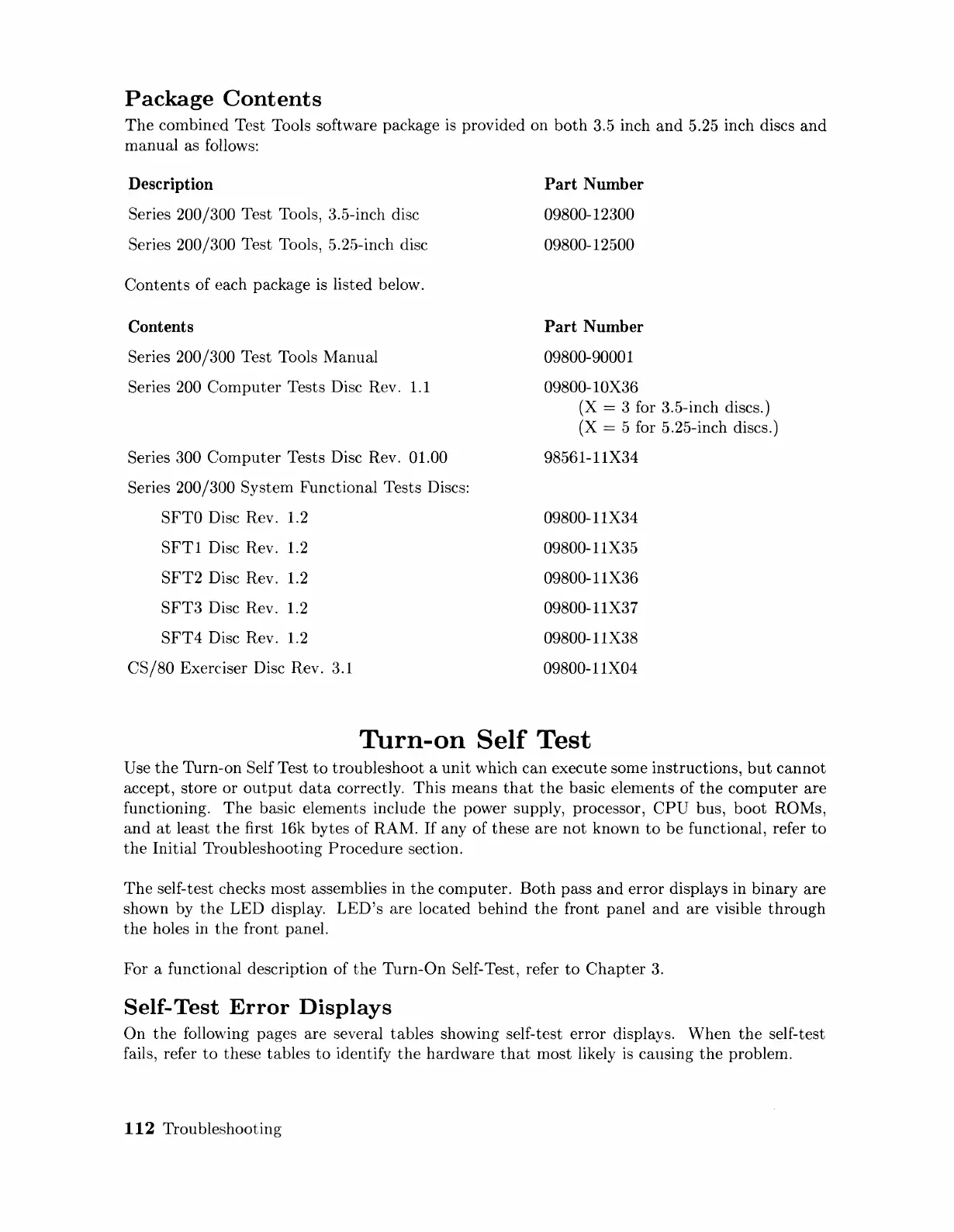

Package
Contents
The
combined Test Tools software package is provided on
both
3.5 inch
and
5.25 inch discs
and
manual as follows:
Description
Series 200/300 Test Tools, 3.5-inch disc
Series
200/300 Test Tools, 5.25-inch disc
Contents of each package is listed below.
Contents
Series 200/300 Test Tools Manual
Series 200
Computer
Tests Disc Rev. 1.1
Series
300
Computer
Tests Disc Rev. 01.00
Series 200/300 System Functional Tests Discs:
SFTO Disc Rev. 1.2
SFT1 Disc Rev. 1.2
SFT2
Disc Rev. 1.2
SFT3
Disc Rev. 1.2
SFT4
Disc Rev. 1.2
CS/80
Exerciser Disc Rev. 3.1
Part Number
09800-12300
09800-12500
Part Number
09800-90001
09800-10X36
(X = 3 for 3.5-inch discs.)
(X
= 5 for 5.25-inch discs.)
98561-11X34
09800-11X34
09800-11X35
09800-11X36
09800-11X37
09800-11X38
09800-11X04
Turn-on
Self
Test
Use
the
Turn-on Self Test
to
troubleshoot a unit which can execute some instructions,
but
cannot
accept, store or
output
data
correctly. This means
that
the
basic elements of
the
computer
are
functioning.
The
basic elements include
the
power supply, processor,
CPU
bus,
boot
ROMs,
and
at
least
the
first 16k bytes of RAM.
If
any of these are
not
known
to
be functional, refer
to
the
Initial Troubleshooting
Procedure
section.
The
self-test checks most assemblies in
the
computer.
Both
pass
and
error displays in binary are
shown by
the
LED display.
LED's
are located behind
the
front panel
and
are visible
through
the
holes in
the
front panel.
For a functional description of
the
Turn-On
Self-Test, refer
to
Chapter
3.
Self-
Test
Error
Displays
On
the
following pages are several tables showing self-test error displays. When
the
self-test
fails, refer
to
these tables
to
identify
the
hardware
that
most likely
is
causing
the
problem.
112
Troubleshooting
