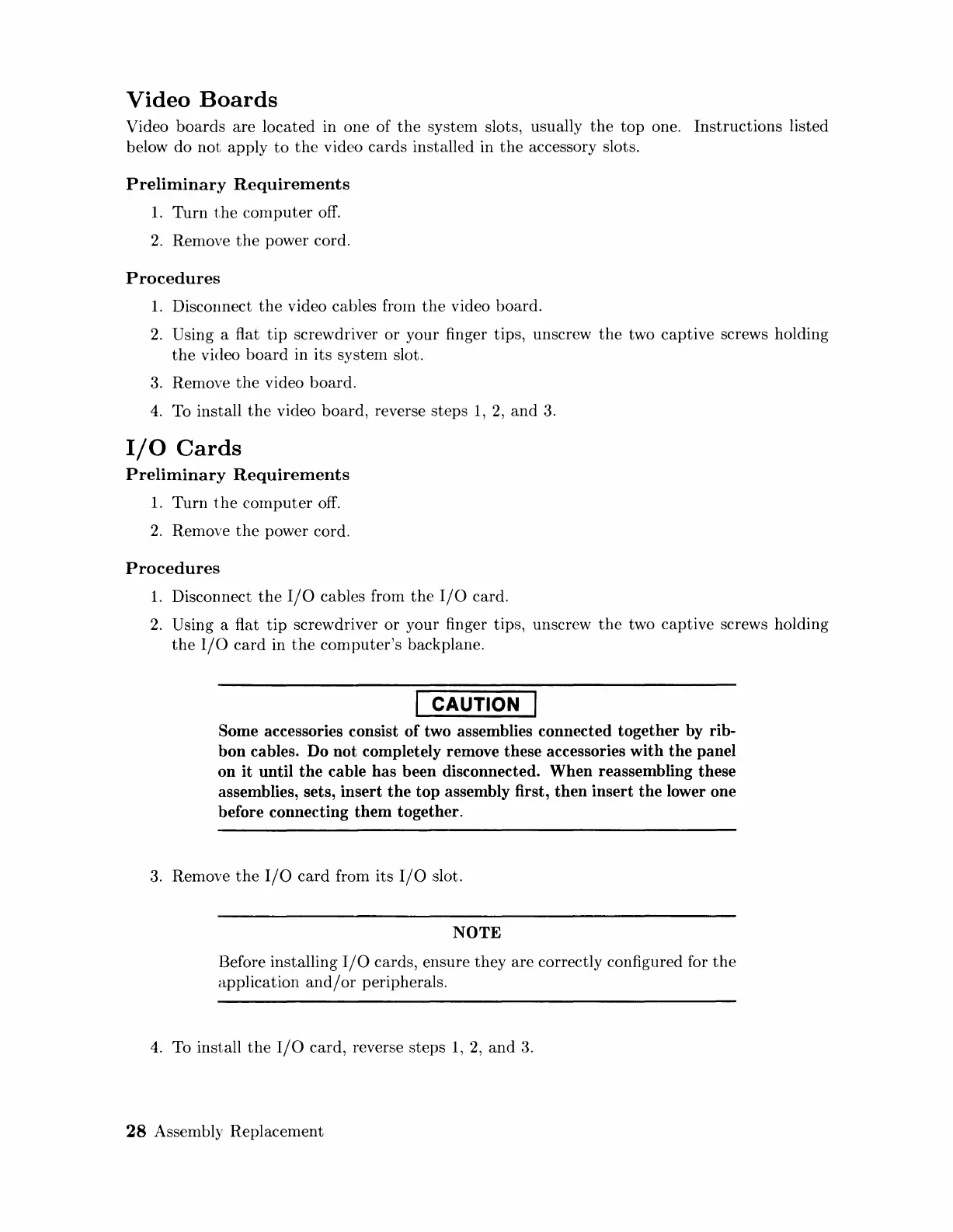

Video
Boards
Video
boards
are
located
in
one
of
the
system
slots, usually
the
top
one.
Instructions
listed
below do
not
apply
to
the
video
cards
installed in
the
accessory slots.
Preliminary
Requirements
1.
Turn
the
computer
off.
2.
Remove
the
power cord.
Procedures
1.
Disconnect
the
video cables
frorTI
the
video
board.
2.
Using a flat
tip
screwdriver
or
your
finger tips, unscrew
the
two
captive
screws holding
the
video
board
in
its
system
slot.
3.
Remove
the
video
board.
4.
To install
the
video
board,
reverse
steps
1,
2,
and
3.
I/O
Cards
Preliminary
Requirements
1.
Turn
the
computer
off.
2.
Remove
the
power cord.
Procedures
1.
Disconnect
the
I/O
cables from
the
I/O
card.
2.
Using a flat
tip
screwdriver
or
your
finger tips, unscrew
the
two
captive
screws holding
the
I/O
card
in
the
computer's
backplane.
CAUTION
Some accessories consist
of
two assemblies connected together
by
rib-
bon cables. Do not completely remove these accessories with the panel
on it until the cable has been disconnected. When reassembling these
assemblies, sets, insert the top assembly first, then insert the lower one
before connecting them together.
3.
Remove
the
I/O
card
from
its
I/O
slot.
NOTE
Before installing
I/O
cards,
ensure
they
are
correctly configured for
the
application
and/or
peripherals.
4.
To install
the
I/O
card,
reverse
steps
1,
2,
and
3.
28
Assembly
Replacement
