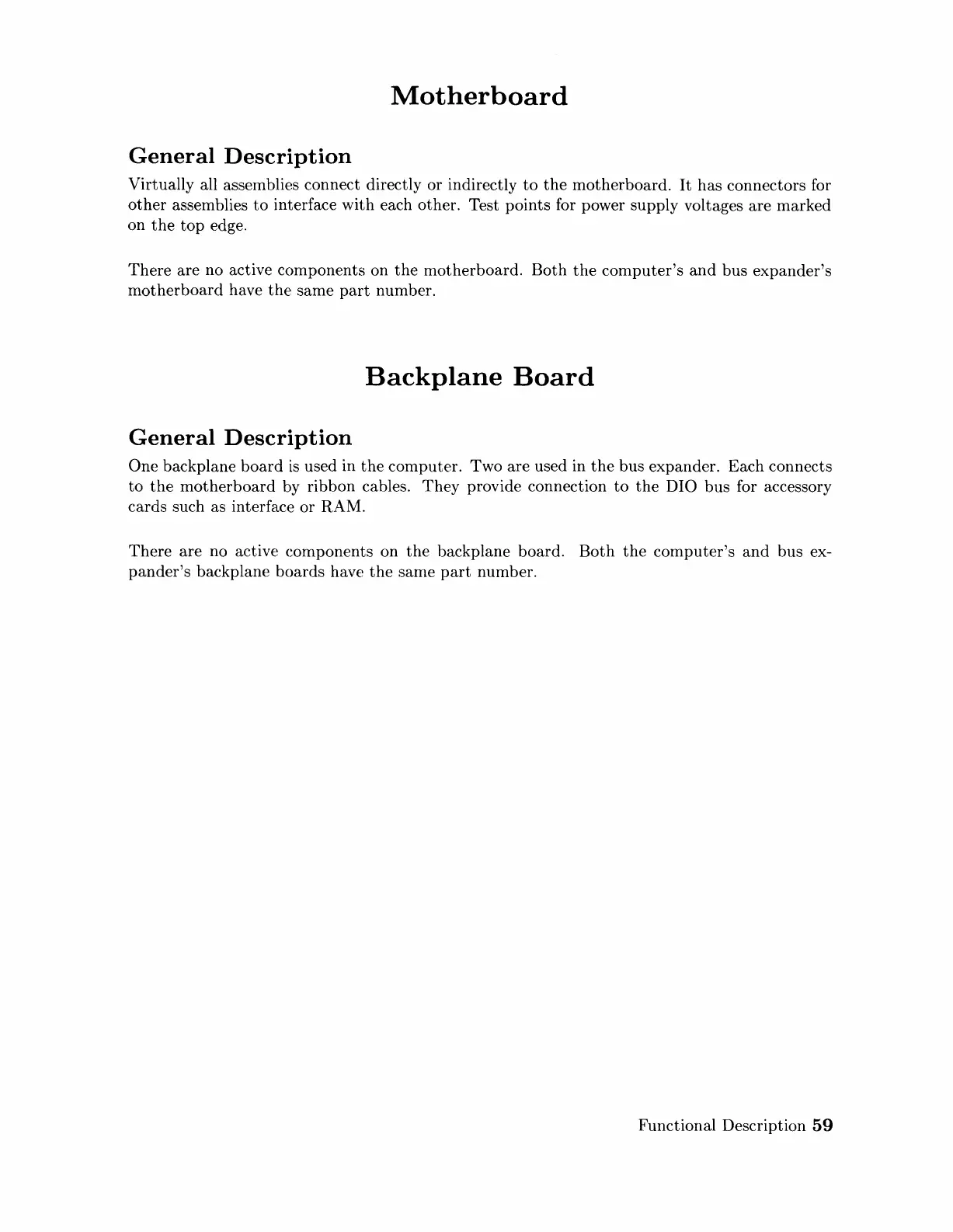

Motherboard
General
Description
Virtually all assemblies connect directly or indirectly
to
the
motherboard.
It
has connectors for
other
assemblies
to
interface
with
each other. Test
points
for power supply voltages are
marked
on
the
top
edge.
There
are no active
components
on
the
motherboard.
Both
the
computer's
and
bus
expander's
motherboard
have
the
same
part
number.
Backplane
Board
General
Description
One
backplane
board
is
used in
the
computer. Two are used in
the
bus expander. Each connects
to
the
motherboard
by ribbon cables.
They
provide connection
to
the
DIO
bus for accessory
cards
such as interface
or
RAM.
There
are no active components on
the
backplane board.
Both
the
computer's
and
bus ex-
pander's
backplane boards have
the
same
part
number.
Functional Description
59
